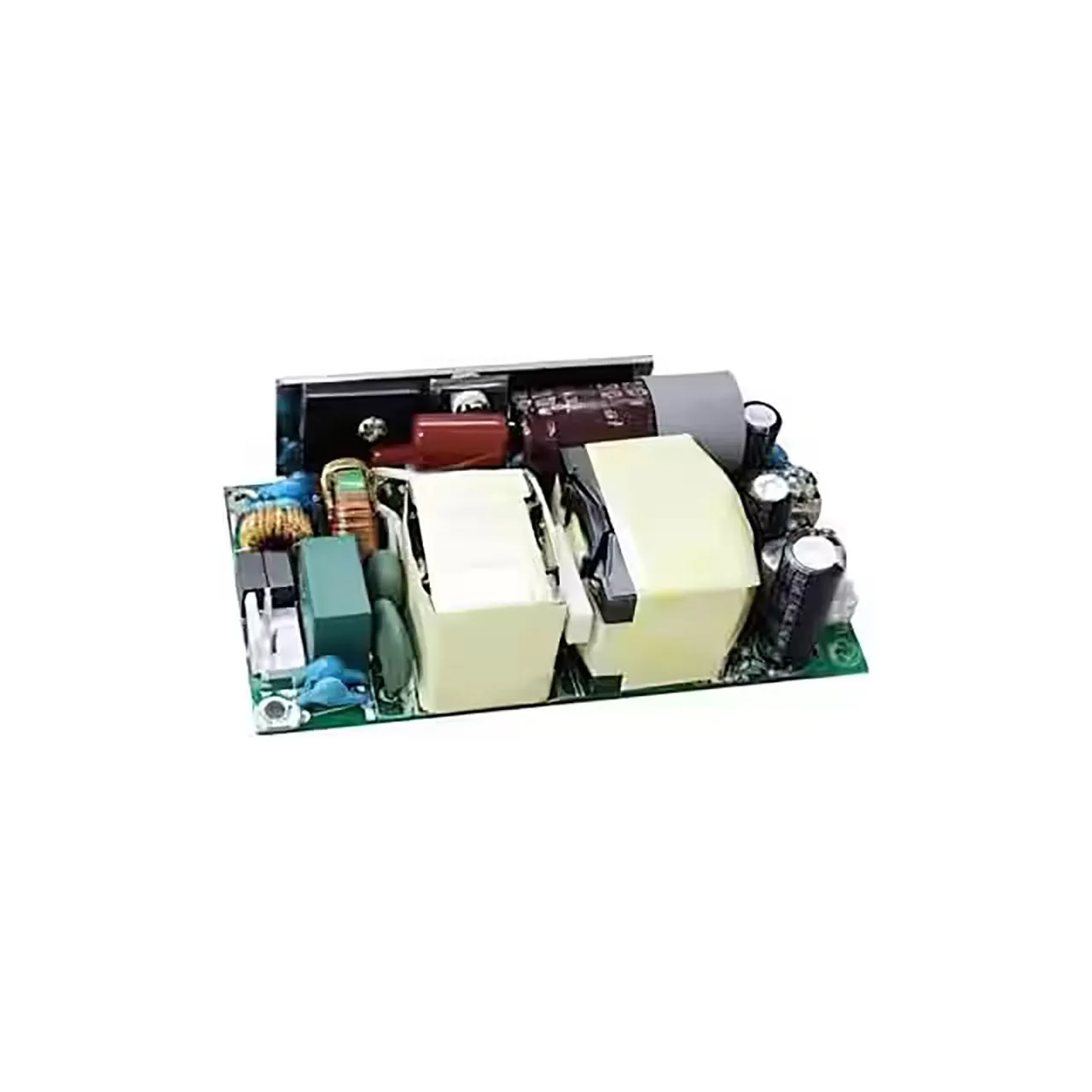

Open Frame AC-DC ITE Switching Power Supply 12 VDC 20 A 240 Watt

Features

  • Built-in 12V / 0.5A fan supply
  • Family: HD240O
  • Output Voltage - Channel 1: 12 VDC
  • Output Current - Channel 1: 20 A
  • Number of Outputs: 1
  • Maximum Output Power (W): 240
  • Input Voltage: 90 VAC to 264 VAC
  • Input Frequency: 47 Hz to 63 Hz
  • Maximum Input Current: 3 A
  • Type: Switching
  • Industry: Commercial, Industrial
  • Isolation Voltage: 4000V
  • Style: Open Frame
  • Mounting Style: Chassis
  • Length (inch): 4.02
  • Width (inch): 2.05
  • Height (inch): 1.09
  • Agency Approvals: UL, CUL, CB, CE, EN, IEC
  • Efficiency (%): 92.5
  • Output Connector Type: Screw Terminal Block
  • Output Connector Diameters: N/A
  • AC Input Connector/Terminal: Alex: 9396-3, 96T series; JST: VHR-3N, SVH-41T-P1.1
  • Color: Silver
,
