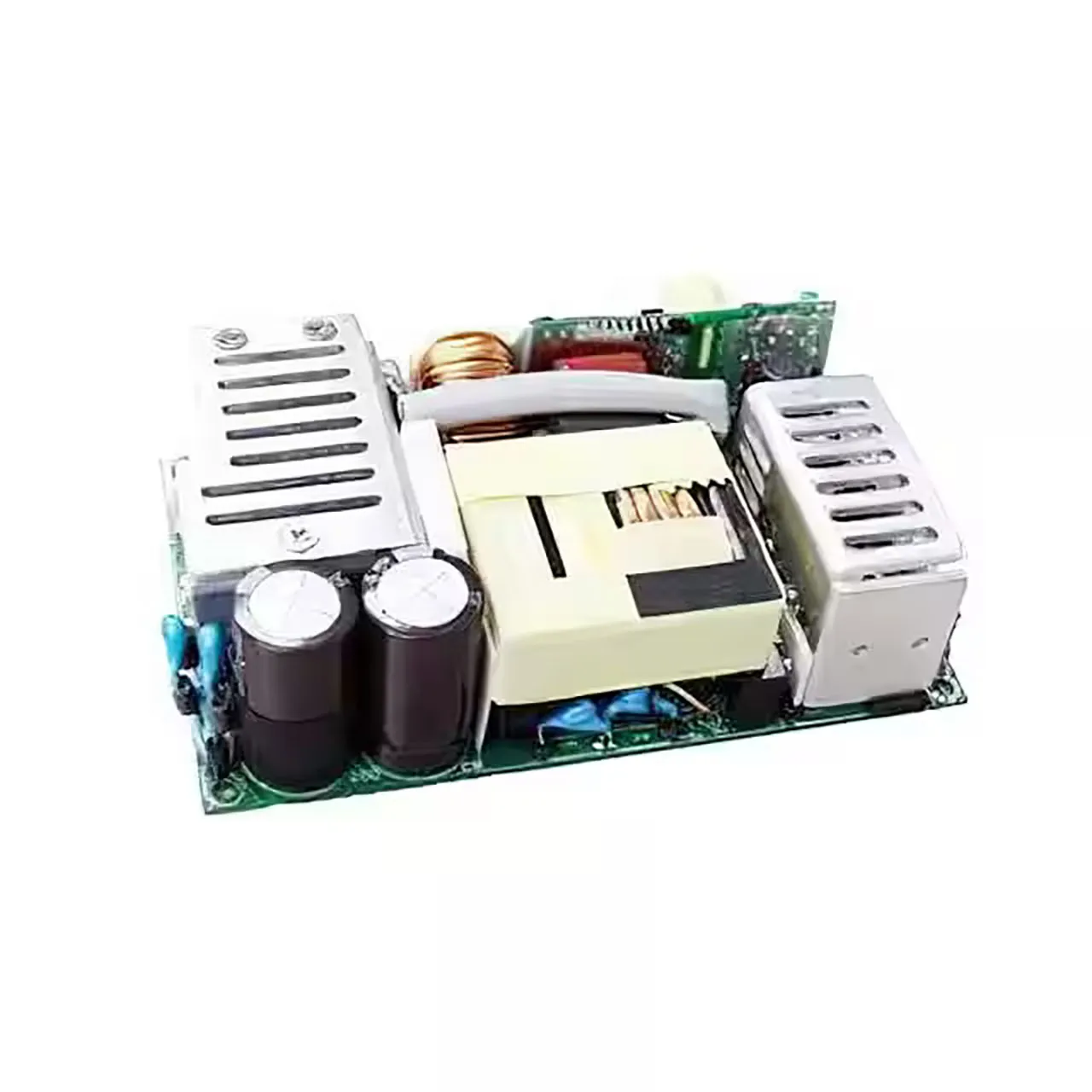

Open Frame AC-DC ITE and Medical Switching Power Supply 24 VDC 20.8 A 500 Watt

Features

  • 200W when cooling by free air convection
  • 500W when using 30 CFM forced air fan
  • 2x MOPP insulation
  • Remote ON/OFF function
  • Built-in active PFC
  • Built-in 12V / 0.3A fan supply
  • Standby 5V@1A with fan, @0.4A without fan
  • Suitable for BF applications with appropriate system considerations
  • Ultra compact size
  • Family: HDM500O
  • Output Voltage - Channel 1: 24 VDC
  • Output Current - Channel 1: 20.8 A
  • Number of Outputs: 1
  • Maximum Output Power (W): 240
  • Input Voltage: 90 VAC to 264 VAC
  • Input Frequency: 47 Hz to 63 Hz
  • Maximum Input Current: 3 A
  • Type: Switching
  • Industry: Commercial, Industrial, Medical
  • Isolation Voltage: 4000V
  • Style: Open Frame
  • Mounting Style: Chassis
  • Length

,
