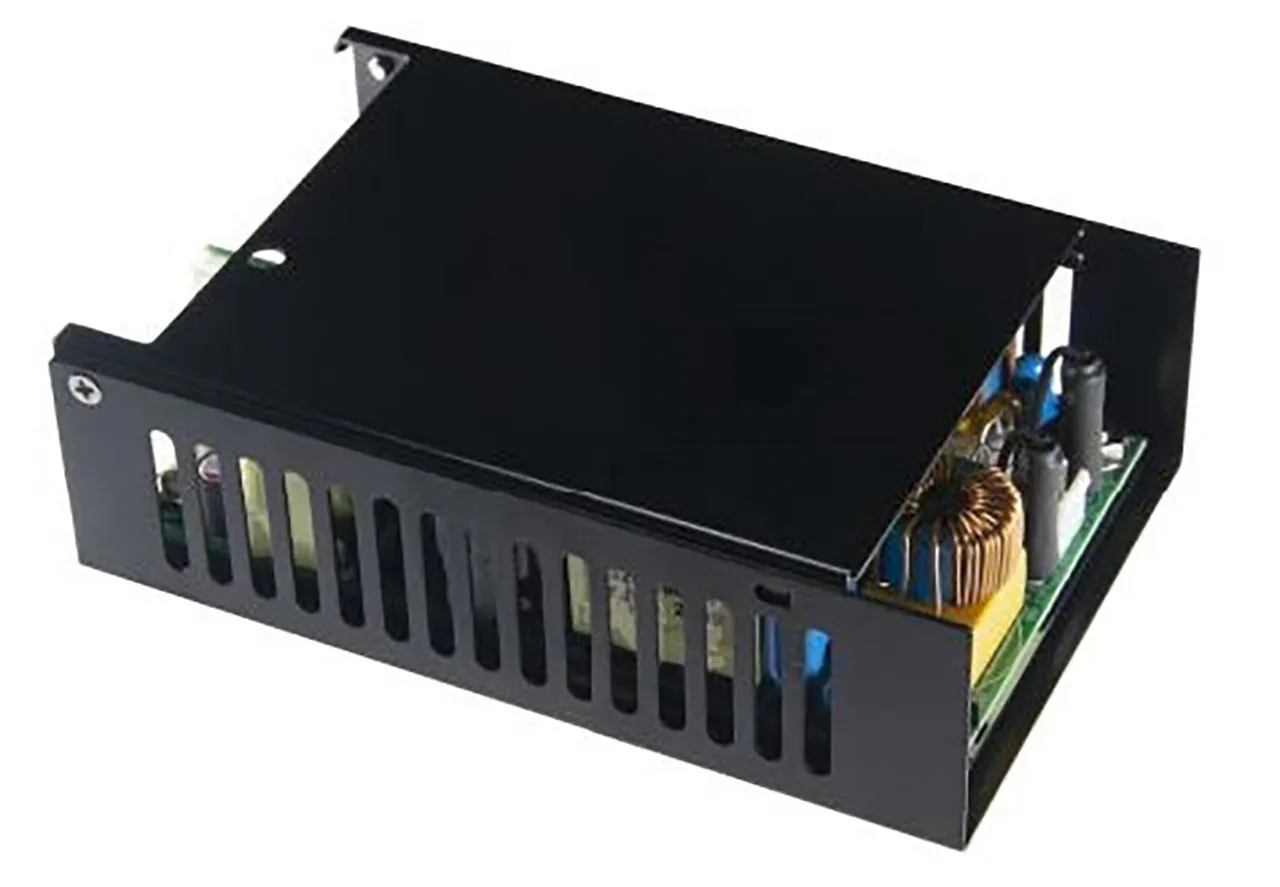

Open Frame 500W AC-DC Power Supply with Cover 12V 25A-41.67A PFC 5Vsb 12V Fan Output with PMBus

Features

  • Efficiency up to 94.5%
  • Universal input range: 80-264VAC
  • 3"x5" compact size
  • Class I
  • No load power consumption <0.5W
  • Peak power operation up to 600 watts for 5s
  • Approval IEC/EN/UL 62368-1
  • Approval EN 55032, 47 CFR FCC Part 15
  • Active PFC meets EN 61000-3-2
  • Design meets IEC/EN 60335-1
  • Operating altitude 5000m
  • High power density up to 21.64W/cubic inch
  • 390W natural, 470W-500W conduction convection
  • Over temperature protection
  • PS ON/OFF remote control
  • Power good & power fail signal
  • +5V stand by, 12V fan output
  • Low inrush current
  • Parallel operation option available (active current sharing)(model# suffix: "-PC")
  • PMBus option available (model# suffix: "-PM")

Overview

Open Frame 500W AC-DC Power Supply with Cover 12V 25A-41.67A PFC 5Vsb 12V Fan Output with PMBus.

Product Identification

Manufacturer Series:CFM500S

Compliance

Agency Approvals: CE, CUL, EN, FCC, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.673 in.
Width:3.425 in.
Length:5.354 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:6 A

Output

Number of Outputs:1
Additional Output Voltages (VDC):5Vsb, 12
Output Connector Type:JST PHR-7 or equiv.
Output Voltage:12 VDC
Output Current:41.67 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Efficiency:92.5%
Power Rating:500W
,
