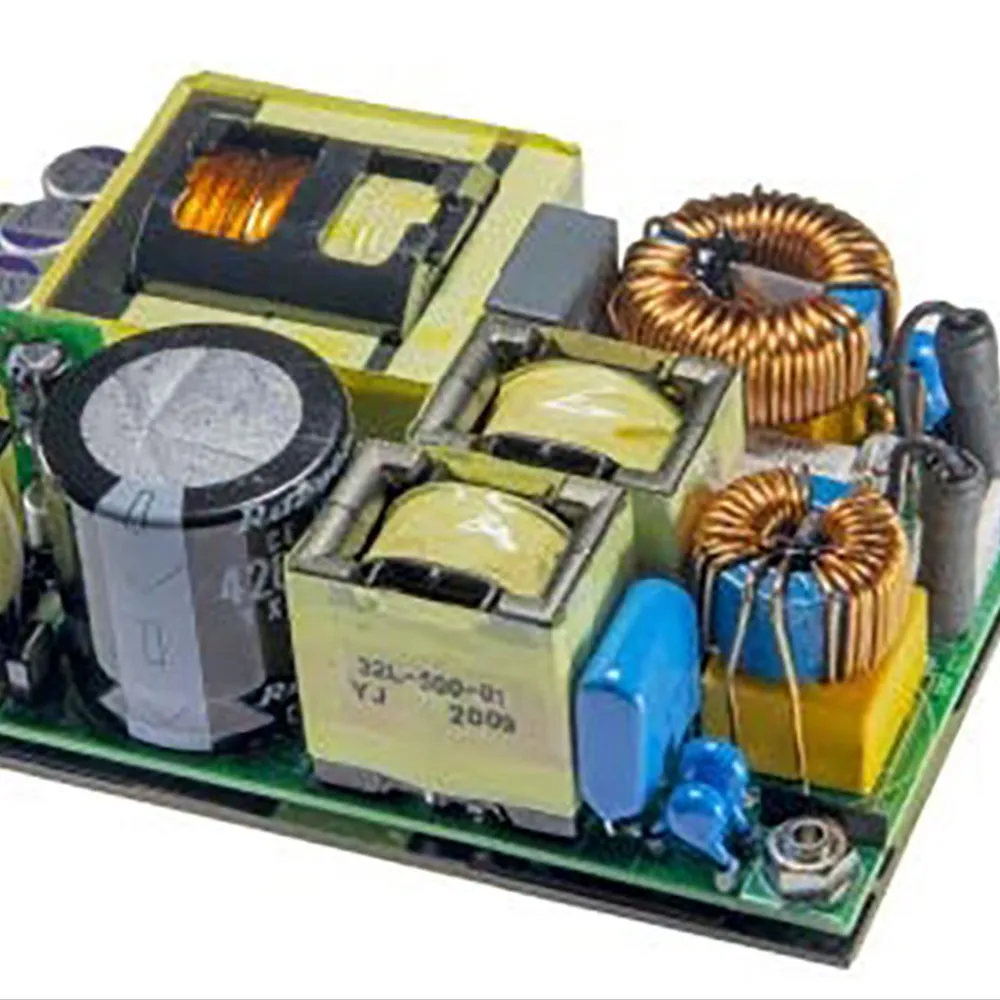

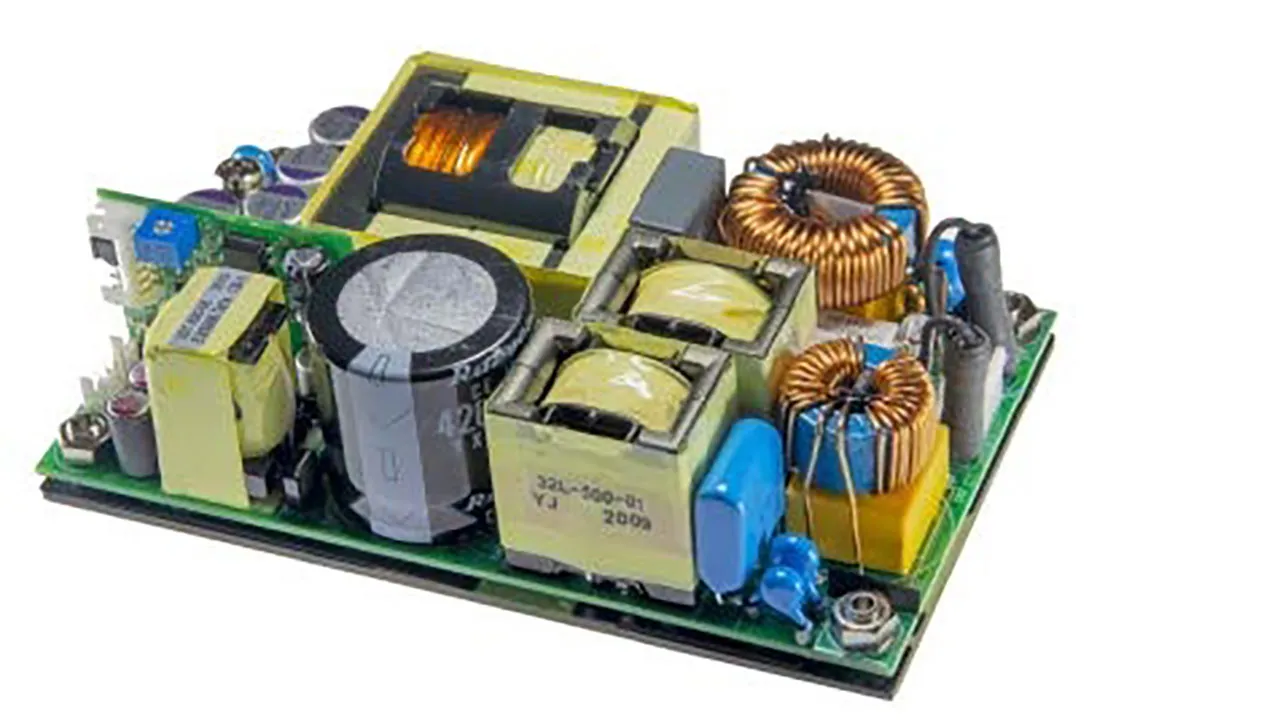

Open Frame 500W AC-DC Power Supply with Baseplate 28V 13.57A-17.86A PFC 5Vsb 12V Fan Output with Parallel Control
Features
- Efficiency up to 94.5%
- Universal input range: 80-264VAC
- 3"x5" compact size
- Class I
- No load power consumption <0.5W
- Peak power operation up to 600 watts for 5s
- Approval IEC/EN/UL 62368-1
- Approval EN 55032, 47 CFR FCC Part 15
- Active PFC meets EN 61000-3-2
- Design meets IEC/EN 60335-1
- Operating altitude 5000m
- High power density up to 21.64W/cubic inch
- 390W natural, 470W-500W conduction convection
- Over temperature protection
- PS ON/OFF remote control
- Power good & power fail signal
- +5V stand by, 12V fan output
- Low inrush current
- Parallel operation option available (active current sharing)(model# suffix: "-PC")
- PMBus option available (model# suffix: "-PM")
Overview
Open Frame 500W AC-DC Power Supply with Baseplate 28V 13.57A-17.86A PFC 5Vsb 12V Fan Output with Parallel Control.
Product Identification
Manufacturer Series:CFM500S
Compliance
Agency Approvals: CE, CUL, EN, FCC, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.539 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:6 A
Output
Number of Outputs:1
Additional Output Voltages (VDC):5Vsb, 12
Output Connector Type:JST PHR-7 or equiv.
Output Voltage:28 VDC
Output Current:17.86 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Efficiency:94.5%
Power Rating:500W
