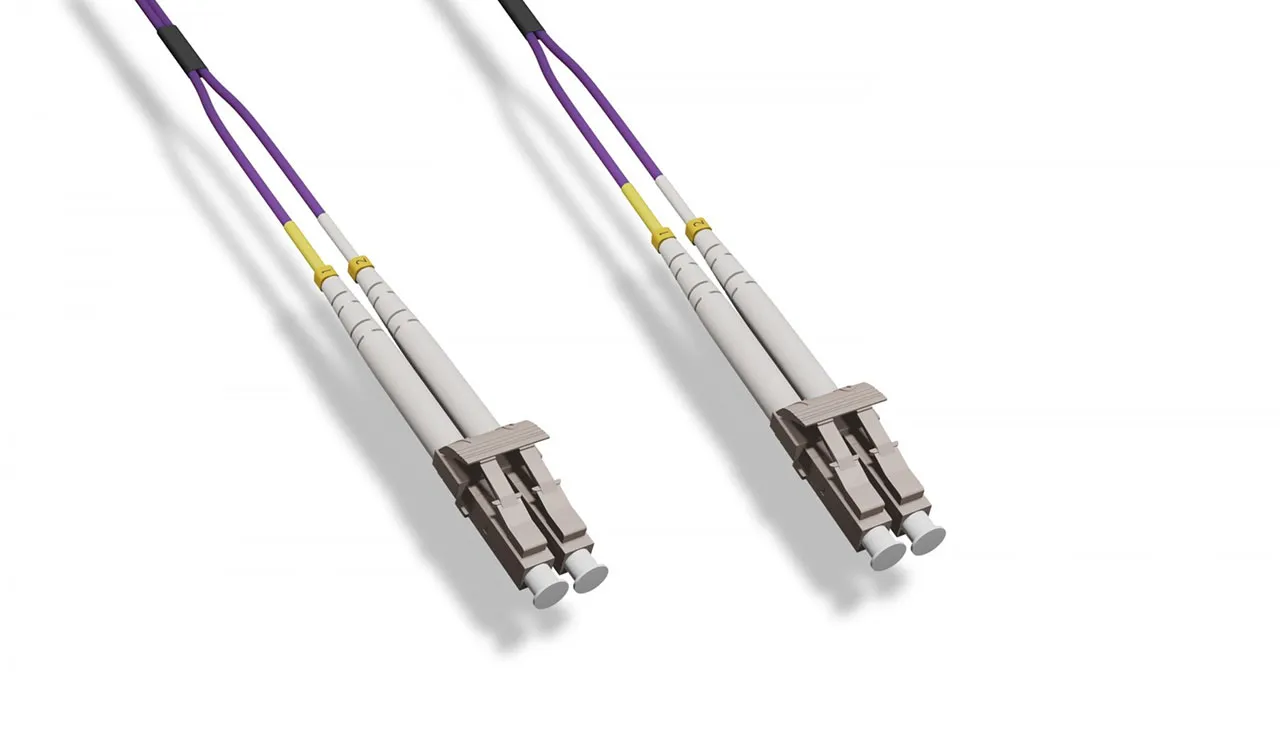

OM4 Standard LC to LC 10G Violet Duplex Multi-Mode Fiber Optic Cable 5m
Features
- Our high-quality OM4 multi-mode fiber cable with LC/LC connectors is perfect for high-throughput applications
- OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable
- With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm
- Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters
- OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building
- The small LC connector is perfect for high-density network applications
- Use with LED and VCSEL laser light sources
- Backward compatible with LED-based 50/125 multimode fiber applications
- Corning® glass 50µm core and 125µm cladding
- Test report included in each cable package
- UL listed
- Fiber Connector: LC to LC
- Fiber Mode: OM4, Multimode, 50 / 125 µm
- Fiber Count: 2 Strands
- Polish Type: UPC to UPC
- Insertion Loss: < 0.3 dB
- Return Loss: > 35 dB
- Jacket OD: 2.0 mm *2 (Duplex)
- Jacket Material: OFNR (Riser)
- Jacket Color: Violet
- Operating Temp: -20°C to +70°C
- Durability: 500 times
- Length: 5 meter, 15.25 feet
Overview
MTP® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
