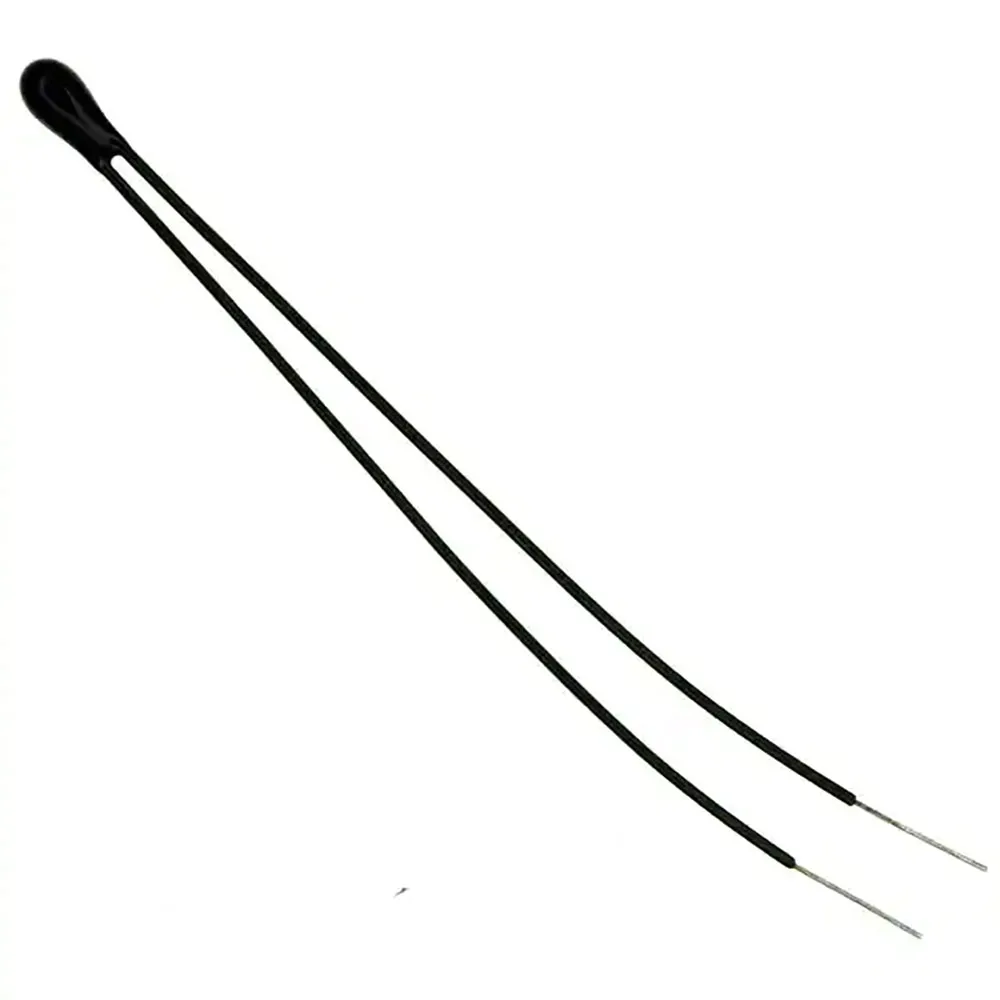

NTC Thermistor 10K Ohms 1% 3988K 60mW Mini Bead with Wires

Specifications

  • NTC thermistor for temperature measurement
  • Resistance in Ohms @ 25°C: 10K
  • Resistance Tolerance: ±1%
  • B Value Tolerance: ±1%
  • B0/50: n/a
  • B25/50: n/a
  • B25/75: n/a
  • B25/85: n/a
  • B25/100: 3988K
  • Operating Temperature: -55°C to 100°C
  • Power - Max: 60 mW
  • Length - Lead Wire: 1.44" (36.5 mm)
  • Mounting Type: Free hanging
  • Package: Radial bead with bendable wires

Product Identification

Product Type:NTC

Dimensions & Appearance

Body Diameter:7.5 mm

Packaging

Package:Bead w/ wires

Features

Tolerance:1%
Resistance:10 KOhm
Power Rating:60 mW
B Parameter:3988 K
,
