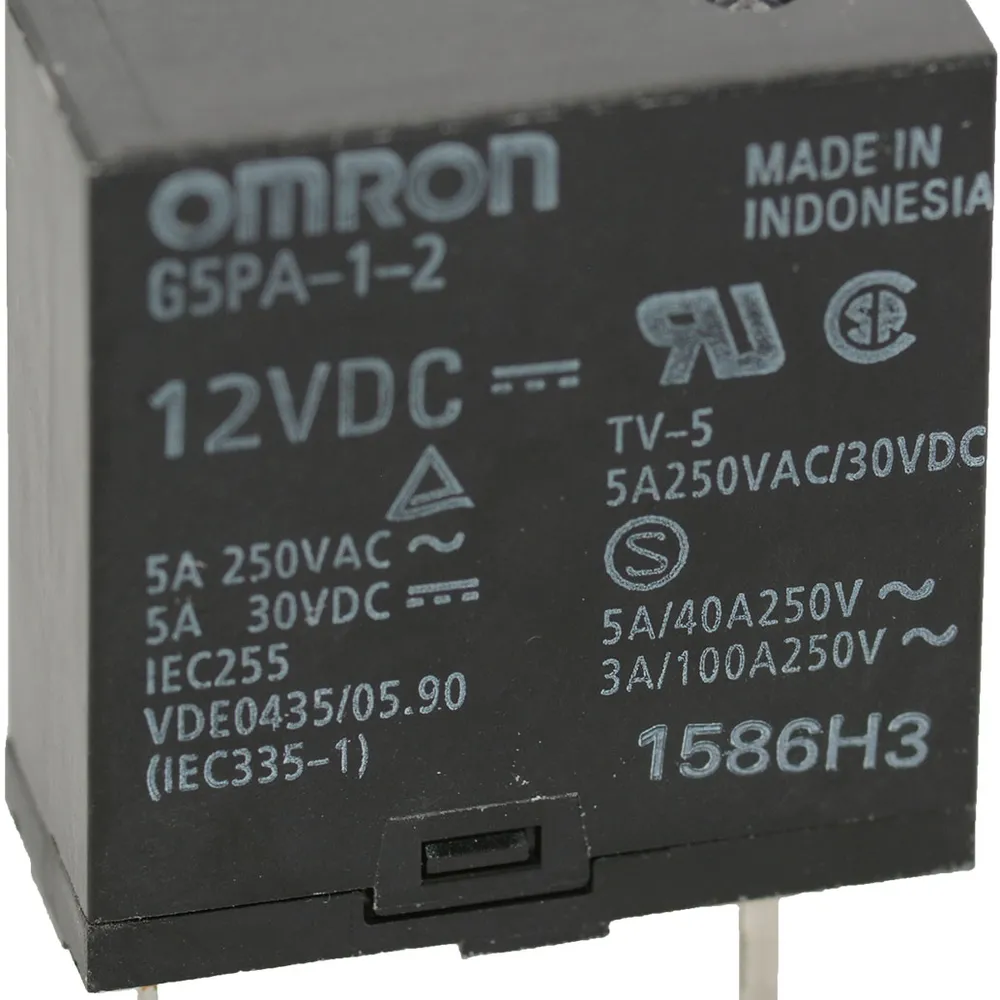

Non-Latching General Purpose Relay SPST-NO (1 Form A) 5A 12VDC Coil Through Hole

Specifications

  • Series: G5PA-1
  • Mounting Type: Through Hole
  • Coil Voltage: 12 VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5 A
  • Switching Voltage: 277 VAC, 30 VDC - Max
  • Coil Current: 20.8 mA
  • Coil Type: Non-Latching
  • Termination Style: PC Pins
  • Seal Rating: Sealed - Flux Protection
  • Must Operate Voltage: 9.6 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Operating Temperature: -40°C to 70°C
  • Relay Type: General Purpose
  • Coil Resistance: 576 Ohms

Product Identification

Family:G5PA

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Features

Pins:5
Minimum Dropout Voltage:1.2 VDC
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Maximum Pick-Up Voltage:9.6 VDC
Operate Time:15 ms
Contact Current:5 A
Contact Voltage:277 VAC, 30 VDC
Coil Resistance:576 Ohm
Contact Form:SPST-NO
,
