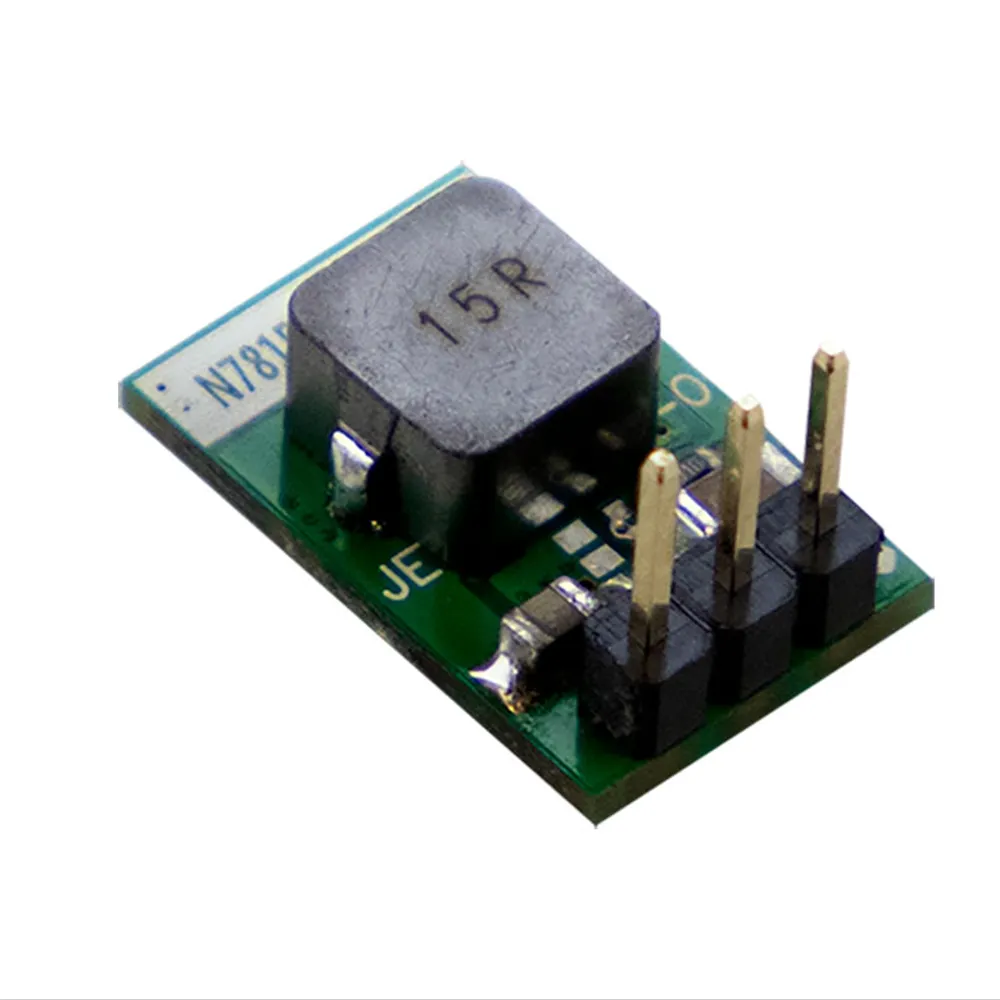

Non-Isolated DC-DC Switching Regulator 1A 3.3V Output 6-36V Input PCB Type Vertical Mount
Features
- Compact size
- Pin-out compatible with LM78xx / LM79xx linear regulators
- High efficiency up to 96%, no heatsink required
- Wide input range up to 36V
- Support negative output
- Operating temperature range -40C to +85C
- Comply to BS EN/EN55032 radiated Class B without additional components
- Protections: Short circuit, overload, over temperature
- Low ripple and noise
- 3-year warranty
Overview
The N78 series converter are high efficiency switching regulators suitable to replace LM78xx/LM79xx linear regulators and its pin-out can be compatible with LM78xx and LM79xx IC. One of the key features is the model can be chosen positive or negative output voltage according to the application. It also features high efficiency up to 96% meaning low power loss, wide working temperature range of -40C to +85C with no additional heat sink, compliance with EN55032 radiated Class B without external components, and so on.
Applications
- Voltage step down
- Power supplies
- Industrial PC
- Digital set-top boxes
- Data communications
- Microcontroller related applications
- Point of load regulator in distributed power system
Product Identification
Type:Positive Output
Product Type:Non-Isolated Switching Regulator
Manufacturer Series:N78
Compliance
Agency Approvals:CE, EN, EAC, UKCA
Dimensions & Appearance
Color:Black
Style:Horizontal
Length:0.45 in.
Width:0.35 in.
Height:0.69 in.
Mounting:Through Hole
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Voltage Range:6 VDC to 36 VDC
Input Voltage:12 VDC
Maximum Input Current:0.615 A
Output
Number of Outputs:1
Output Voltage:3.3 VDC
Output Connector Type:PC Pins
Output Current:1 A
Features
Pins:3
Efficiency:91.5%
