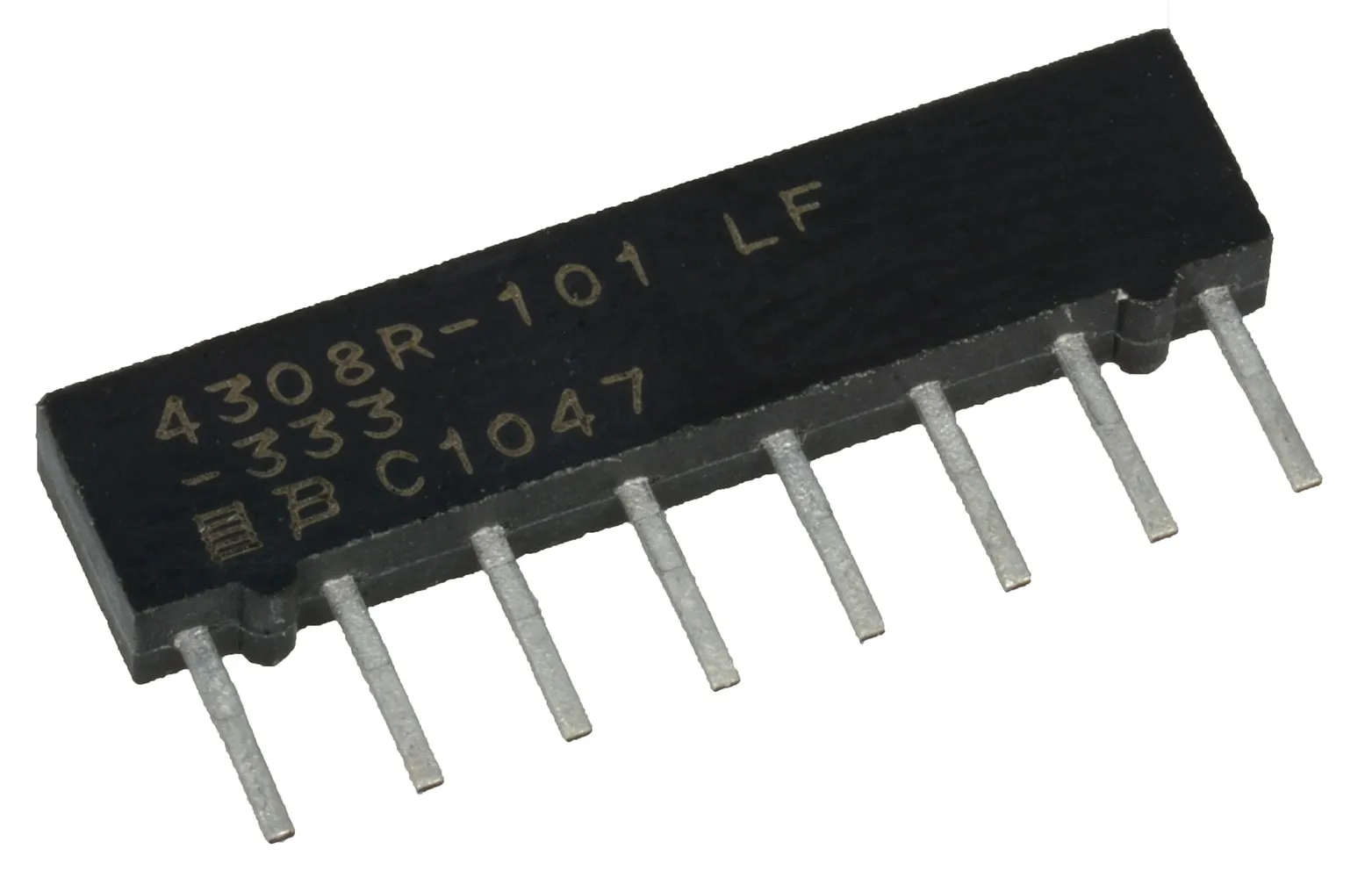

Network Resistor Bussed 200mW 33k Ohm ±2% 7 Resistor Array 8-SIP

specifications

  • Series: 4300R
  • Circuit Type: Bussed
  • Resistance (Ohms): 33k (33,000)
  • Tolerance: ±2%
  • Number of Resistors: 7
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 8
  • Power Per Element: 200 mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Supplier Package: 8-SIP
  • Size / Dimension: 0.784" L x 0.085" W (19.91 mm x 2.16 mm)
  • Height - Seated (Max): 0.195" (4.95 mm)

Product Identification

Family:4300R

Features

Circuit Designator:Bussed
Power Rating per Resistor:0.200 W
Number of Resistors:7
Tolerance:2%
Number of Terminals:8
Technology:Thick Film
Resistance (Ohm):33000
Power Rating:1 W
Resistance:33 KOhm
,
