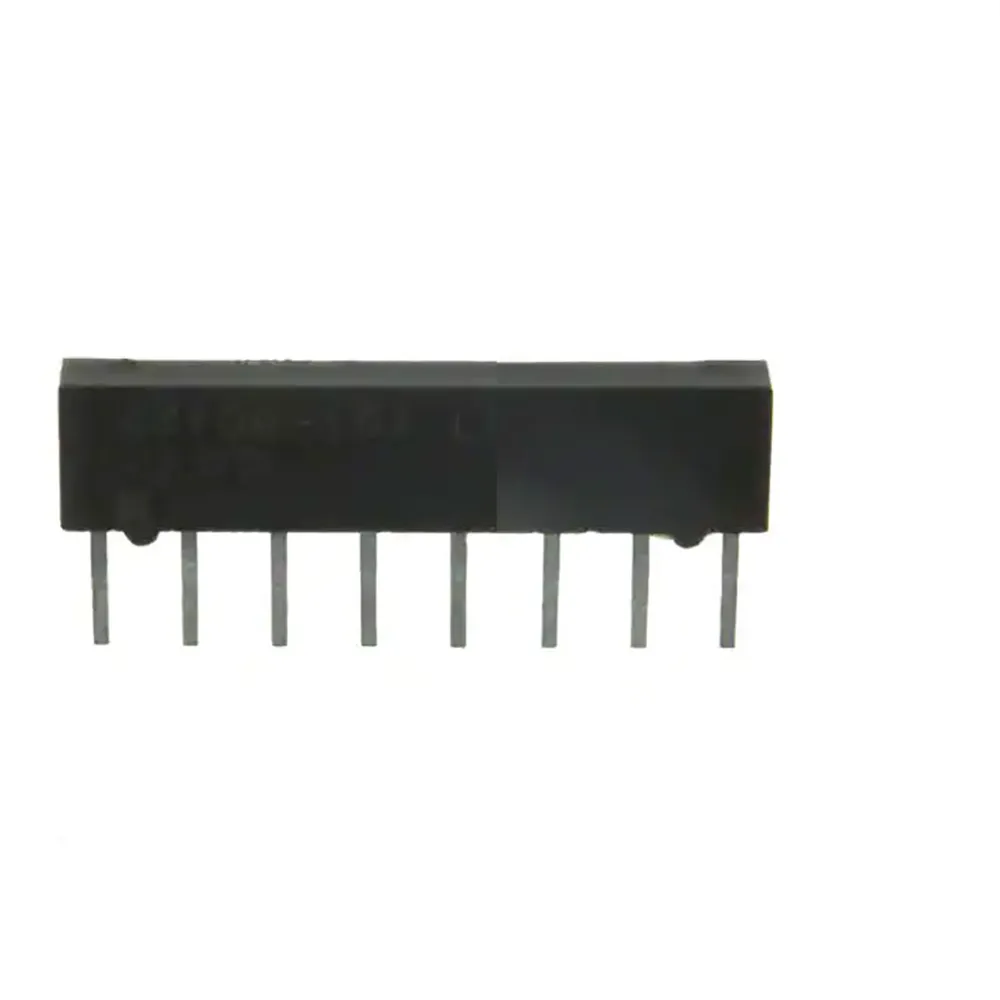

Network Resistor Array 1.2K Ohm 2% 7 Resistor Bussed 250mW per Element SIP-8

Specifications

  • Circuit Type: Bussed
  • Resistance (Ohms): 1.2K (1200 / 1k2 / 122)
  • Tolerance: ±2%
  • Number of Resistors: 7
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 8
  • Power Per Element: 250 mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Package: 8-SIP
  • Size: 0.784" L x 0.085" W (19.91 mm x 2.16 mm)
  • Height - Seated (Max): 0.250" (6.35 mm)
  • Base Number: 4308M

Product Identification

Family:4300M

Features

Circuit Designator:Bussed
Number of Resistors:7
Power Rating per Resistor:0.250 W
Tolerance:2%
Number of Terminals:8
Resistance:1.2 KOhm
Technology:Thick Film
Resistance (Ohm):1200
Power Rating:1.20 W
,
