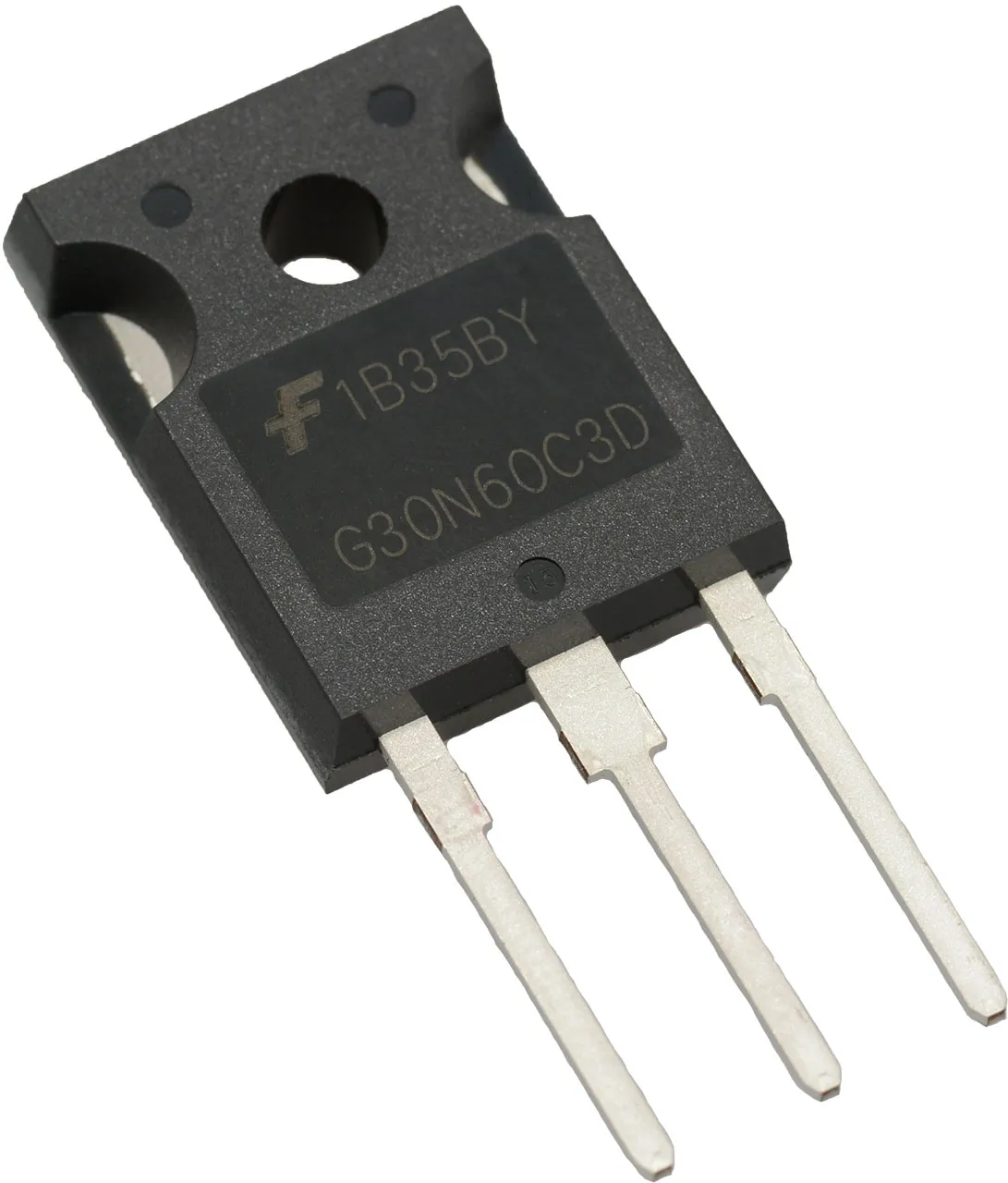

N-Channel IGBT MOSFET Transistor 600V 63A Through Hole TO-247-3

Specifications

• Voltage - Collector Emitter Breakdown (Max): 600 V
• Current - Collector (Ic) (Max): 63 A
• Current - Collector Pulsed (Icm): 252 A
• Vce(on) (Max) @ Vge, Ic: 1. 8V @ 15 V, 30 A
• Power - Max: 208 W
• Switching Energy: 1.05mJ (on), 2.5 mJ (off)
• Input Type: Standard
• Gate Charge: 162 nC
• Reverse Recovery Time (trr): 60 ns
• Operating Temperature: -40°C to 150°C (TJ)
• Mounting Type: Through Hole
• Package: TO-247-3
• Base Number: ISL9R860
