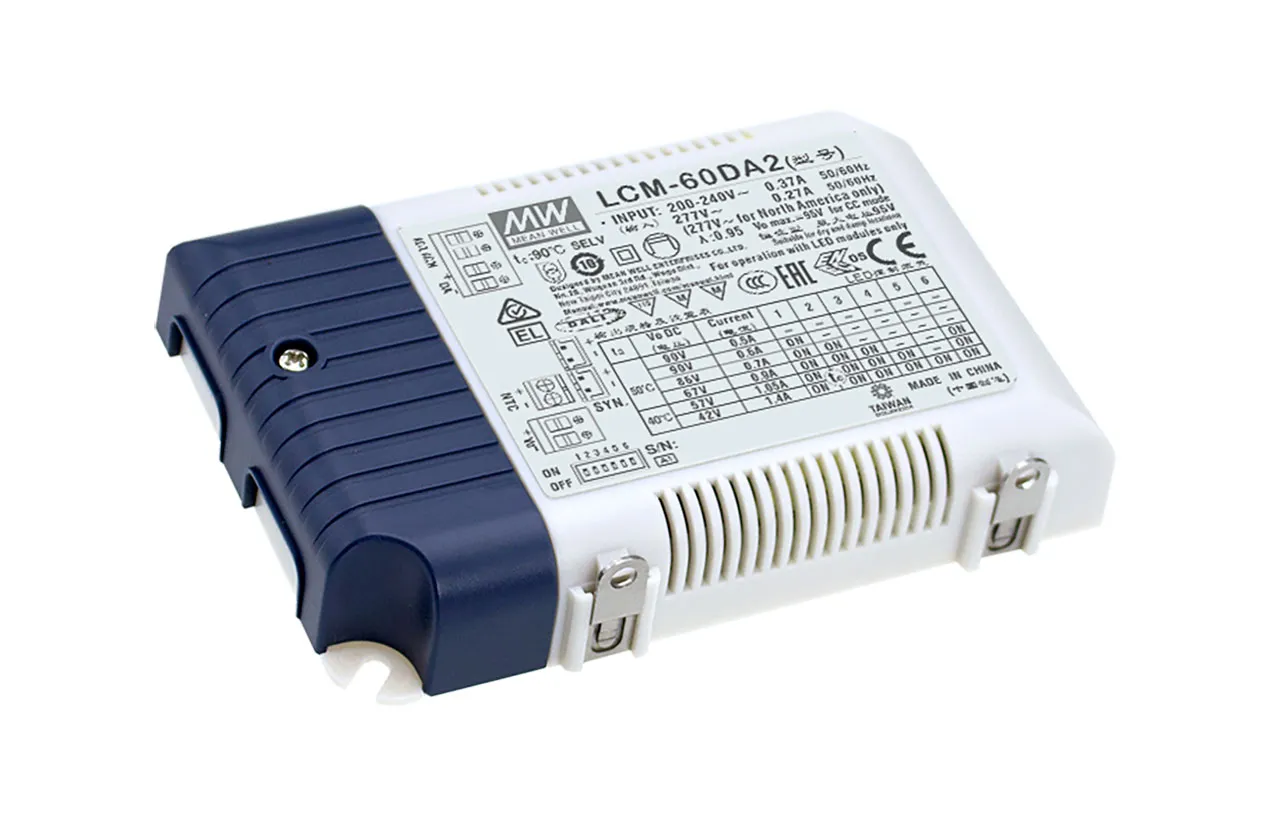

Multiple-Stage Selectable Constant Current LED Driver 500-1400mA 60W DALI-2 Push Dimming

Features

  • Constant Current mode output with multiple levels selectable by a dip switch
  • Emergency lighting application is available according to IEC61347-2-13
  • Built-in active PFC function and class II design
  • Standby power consumption <0.5W
  • DALI-2 interface (logarithm or linear dimming curve selectable), and push dimming synchronization up to 10 units
  • 3-year warranty

Overview

The LCM-60DA series is a 60W AC/DC constant current mode output LED driver featuring multiple levels selectable by a dip switch and the DALI interface with compliance to IEC62386. The LCM-60DA operates from 180-295VAC and offers different current levels ranging between 500mA and 1400mA. Thanks to the efficiency up to 92%, with the fanless design, then entire series can operate with -30C to 90C case temperature under free air convection. In addition, LCM-60DA is equipped with push dimming and synchronization functions, so as to provide the optimal design flexibility for LED lighting systems.

Applications

  • LED indoor lighting
  • LED office lighting
  • LED commercial lighting
  • LED panel lighting
  • Industrial lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LCM-60

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:0.9 in.
Width:3.2 in.
Length:4.9 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.3 A
Input Voltage:180 VAC to 295 VAC

Output

Number of Outputs:1
Output Connector Type:JST B2B-XH or equiv.
Output Range:2 VDC to 90 VDC
Output Voltage:See Output Range
Output Current:1.05 A

Features

PFC Function:Yes
IP Rating:IP20
Minimum Isolation Voltage:3750V
Efficiency:91%
Power Rating:60.3 W
,
