Multi-Industry General Purpose Smart Controller for Power Management 3U Rack Mount

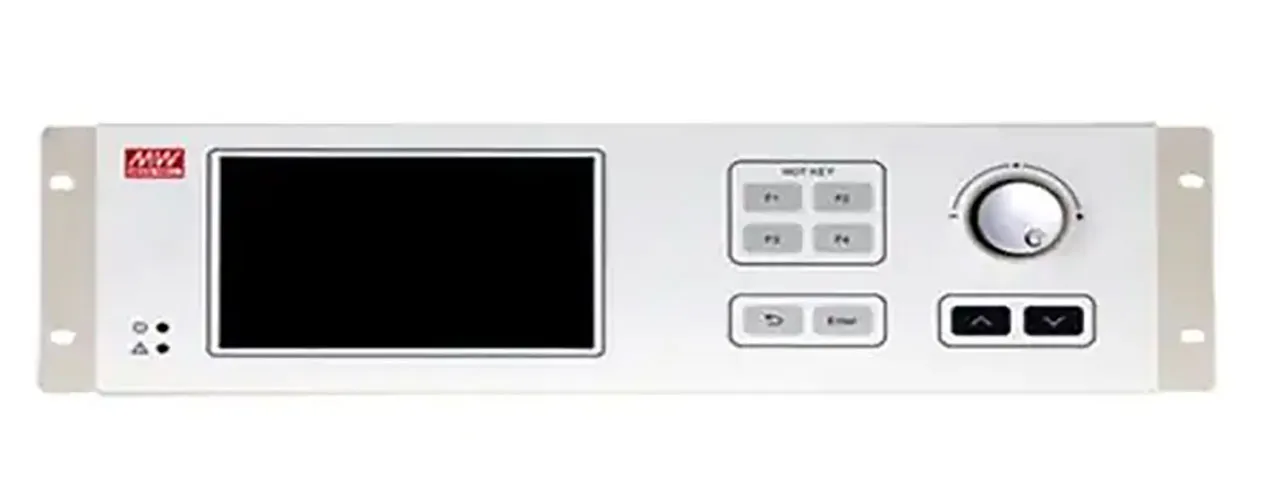

CMU2 is a fully digitalized smart controller that can execute tasks of monitoring and controlling power systems. CMU2 integrates a 7" LCD touch panel into a 3U 19" rack mount to achieve intuitive operation and developed a brand new web monitoring page for faster and smarter management. CMU2 not only being used to monitor the operating parameters and data of PSUs, such as output voltage, output current, internal temperature, fan rpm, series number and firmware version, but also can be used to adjust output voltage and current. In addition, it can remotely control single PSU or entire power systems through LAN or internet. Check out MEAN WELL's System Power Solutions.

Features

• Integration on system power
• 3U 19" rack mount configuration
• 7" touch panel and buttons for easy on-site operation
• Ethernet port for on-site or remote monitor and control over the system
• Support Data/Event log with date and time
• Support max. 32GB SDHC SD card
• Four user programmable relay outputs for conventional remote monitoring or warning
• Web-based monitor/control UI provided for various applications
• 5 year warranty

Specifications

• LCD displays the DC output voltage, current and status of each PSU
• Relay Contact: 4 user programmable channels, 30V/1A
• Analog Output: 5 user programmable channels, 0-10V
• Digital Output: 5 user programmable channels, open collector signal
• Input Voltage Range: 85 VAC to 264 VAC @ 47-63 Hz; 0.6A/115VAC (0.4A/230VAC)
• Analog Input: 5 channels, 0-10V, 12-bit resolution
• Digital Input: 5 channels, open collector signal

Applications

• Industrial automation
• UV curing equipment
• Laser diode machines
• Telecommunication systems
• Building decoration lighting
