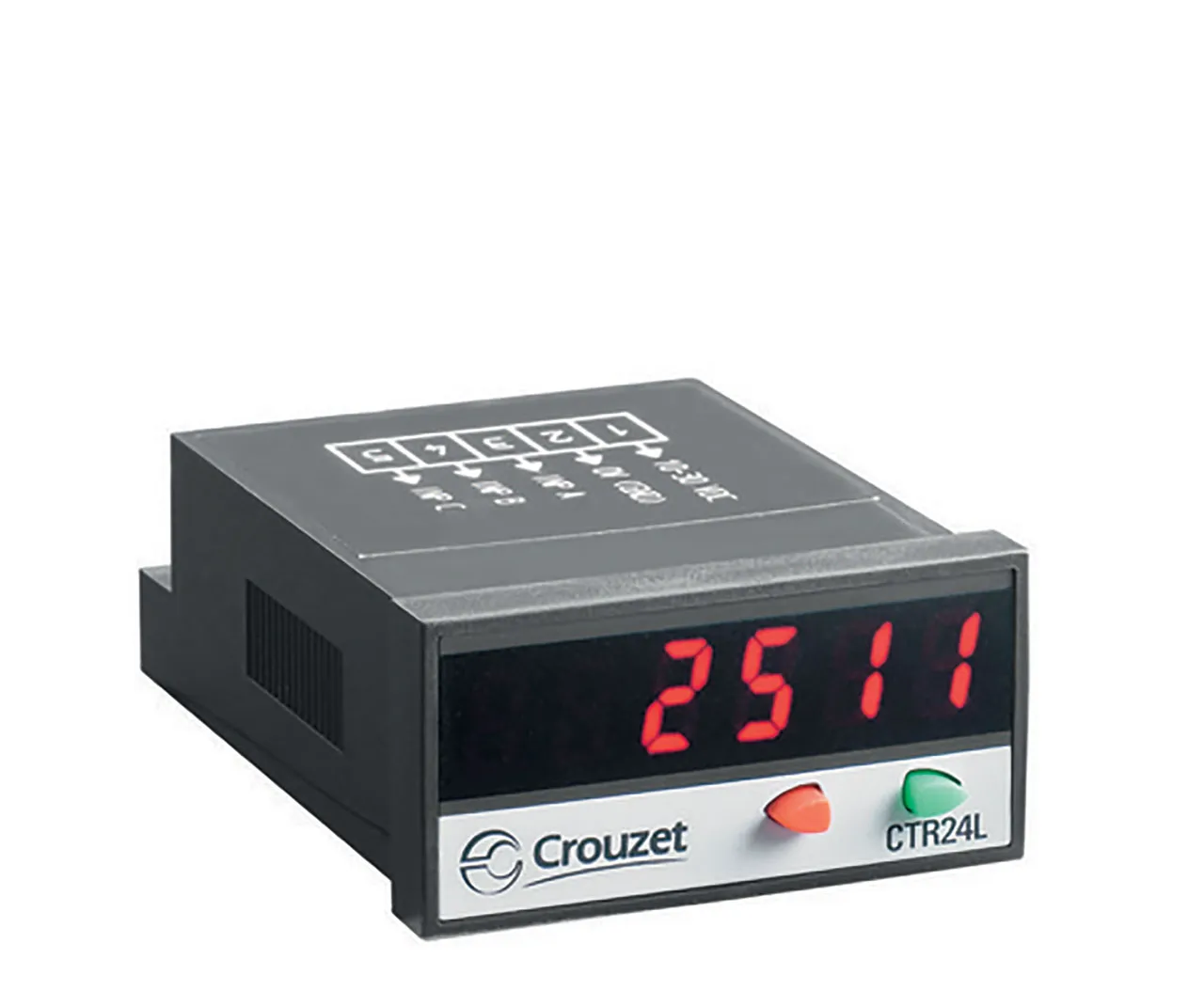

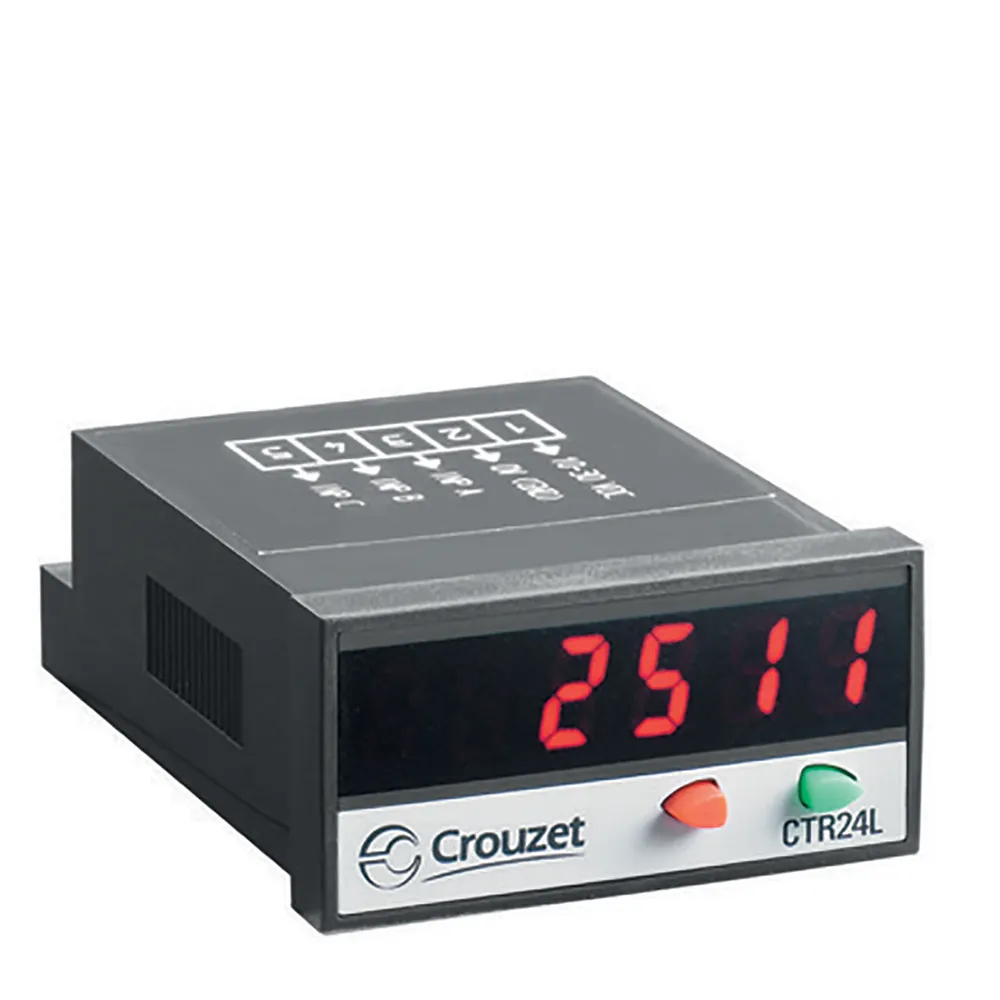

Multifunction 2511 LED 10-30 VDC

Features

  • Product Type: Tachometer, Timer, Totalizer
  • Number of Digits: 6
  • Input Voltage: 10 VDC to 30 VDC
  • Mounting: Panel Mount
  • Additional Feature: External, Front Panel Reset
  • Termination: Screw Terminal
  • Input Type: No Voltage
  • Sampling Rate: 50 kHz
  • Display Type: LED - Red Characters
  • Character Size: 0.314 in., 8 mm
  • Mounting Hole: Rectangular - 45.00mm x 22.20mm
  • IP Rating: IP66 - Dust Tight, Water Resistant
  • Character Format: 99999.9 hrs, min, sec
  • Channel Mode: Up, Down, Command, Quadrature
  • Manufacturer Series: CTR24L
  • Harmonized Code: 9029100090
  • ECCN: EAR99

Overview

Multifunction 2511 LED 10-30 VDC.

Media

    Product Identification

    Manufacturer Series:CTR24L
    Additional Feature:External, Front Panel Reset
    Product Type:Tachometer, Timer, Totalizer

    Dimensions & Appearance

    Mounting:Panel Mount
    Mounting Hole:Rectangular - 45.00mm x 22.20mm

    Input

    Input Type:No Voltage
    Input Voltage:10 VDC to 30 VDC

    Features

    Channel Mode:Up, Down, Command, Quadrature
    Number of Digits:6
    Character Format:99999.9 hrs, min, sec
    Character Size:0.314 in., 8 mm
    Sampling Rate:50 kHz
    Display Type:LED - Red Characters
    IP Rating:IP66 - Dust Tight, Water Resistant
    Termination:Screw Terminal
    ,
