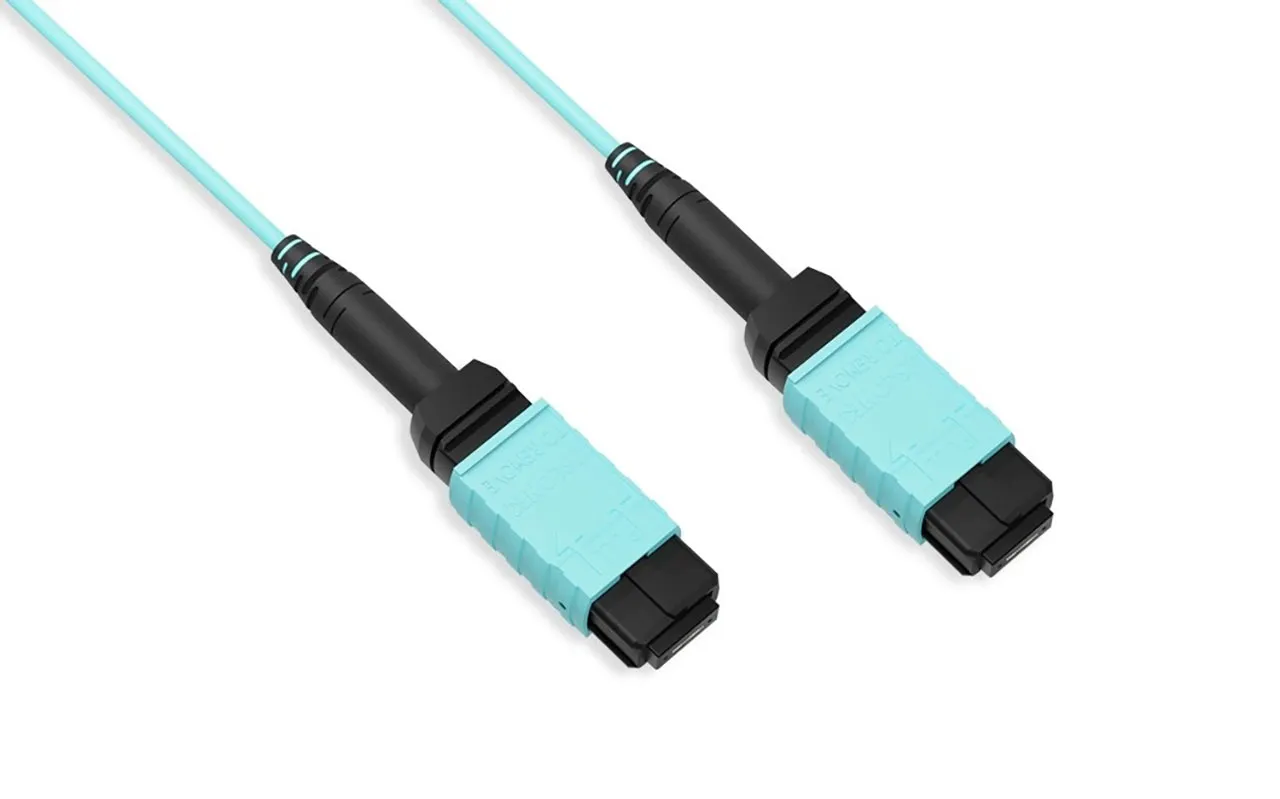

MTP OM4 Multi-Mode 12 Fibers Female to Female Trunk Cable 1m Type B

Features

  • MTP® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs
  • OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable
  • With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm
  • Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters
  • OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings
  • The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance
  • Connection type B (Reverse), key up to key up
  • Use LED and VCSEL laser light sources
  • Corning® glass 50µm core and 125µm cladding
  • 100% Tested with report included in each cable package
  • Dust protective cap included
  • UL listed
  • Fiber Connector A: US Conec MTP® Female
  • Fiber Connector B: US Conec MTP® Female
  • Fiber Mode: OM4, Multimode, 50 / 125
  • Fiber Count: 12 Fibers
  • Polish Type: UPC to UPC
  • Wavelength 850nm/1300nm
  • Insertion Loss: < 0.3 dB
  • Return Loss: > 20 dB
  • Type (Method): Type B
  • Jacket OD: 3.0 mm
  • Jacket Material: OFNP (Plenum)
  • Jacket Color: Aqua
  • Length: 1 meter, 3.25 feet

Overview

MTPĀ® OM4 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.

,
