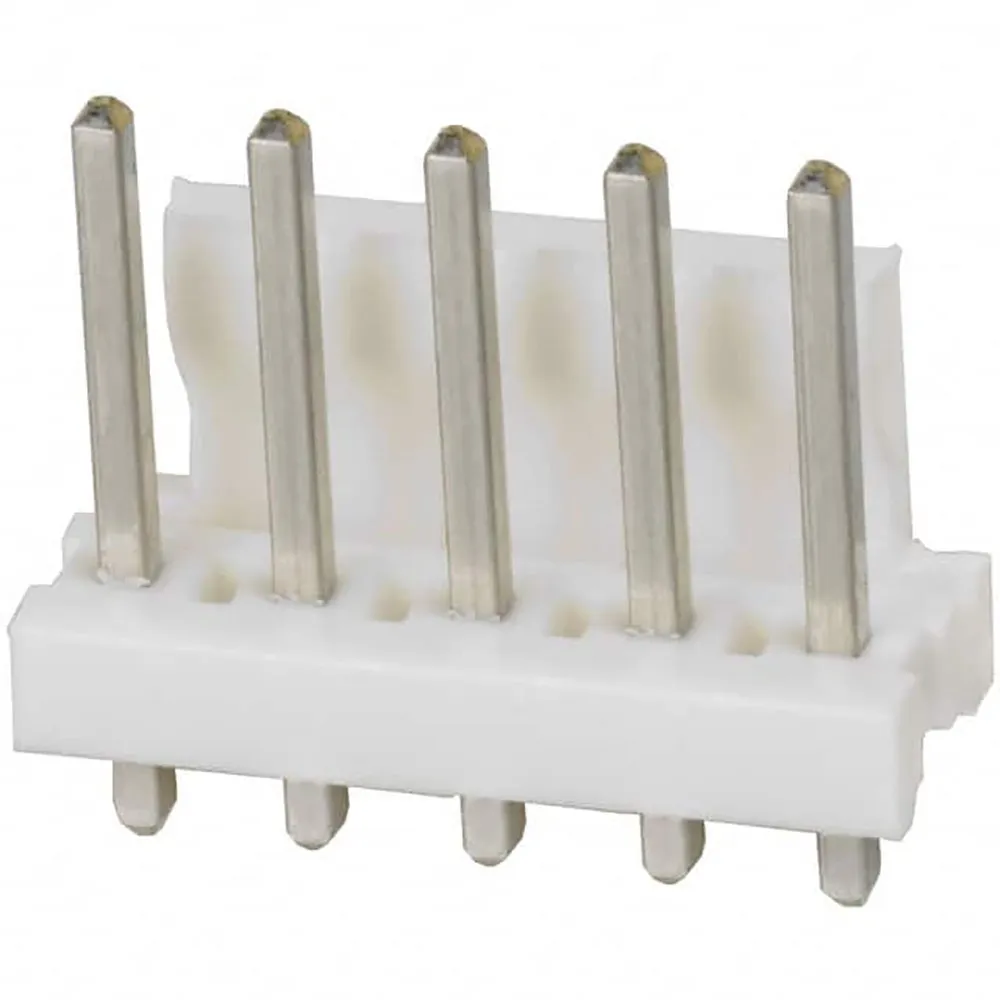

MTA-156 5-Position Shrouded Male Pin Header 0.156" (3.96mm) Through Hole Solder

Specifications

  • Series: MTA-156
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.156" (3.96 mm)
  • Number of Positions: 5
  • Number of Rows: 1
  • Row Spacing: n/a
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 1 Wall
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Contact Length - Mating: 0.4" (10.16 mm)
  • Contact Length - Post: 0.125" (3.18 mm)
  • Overall Contact Length: 0.65" (16.51 mm)
  • Insulation Height: 0.425" (10.8 mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic, Glass Filled
  • Operating Temperature: -55°C to 105°C
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Natural
  • Curre

,
