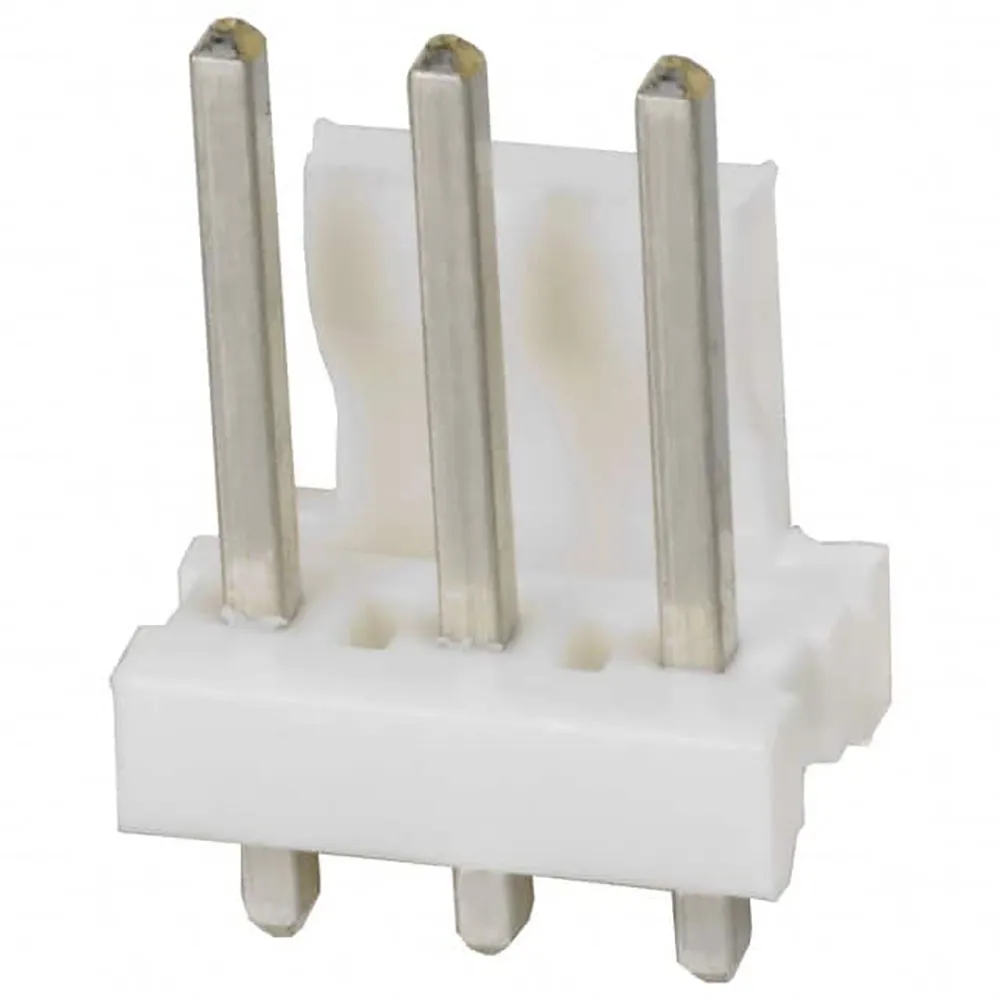

MTA-156 3-Position Shrouded Male Pin Header 0.156" (3.96mm) Through Hole Solder
Specifications
- Series: MTA-156
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96 mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing: n/a
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.4" (10.16 mm)
- Contact Length - Post: 0.125" (3.18 mm)
- Overall Contact Length: 0.65" (16.51 mm)
- Insulation Height: 0.425" (10.8 mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Operating Temperature: -55°C to 105°C
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating: Varies by Wire Gauge
- Voltage Rating: 600 VAC
- Applications: General Purpose, Industrial
- Base Number: 640445
Product Identification
Additional Feature:N/A
Product Type:Header
Manufacturer Series:MTA-156
Dimensions & Appearance
Mounting:Through Hole
Body Orientation:Straight
Body/Shell Style:Wire Shrouded - 1 Wall, Board to Cable
Features
Number of Rows:1
Fastening Method:Friction Lock
UL Flammability Code:94 V-0
Number of Contacts:3
Housing Color:Natural, White
Pitch:0.156 in., 3.96 mm
Maximum Contact Resistance:N/A
Contact Material:Copper Alloy
Contact Plating:Tin
Gender:Male Pin
Housing Material:Thermoplastic, GF
Termination:Solder
Voltage Rating:600 VAC
Current Rating:7 A
