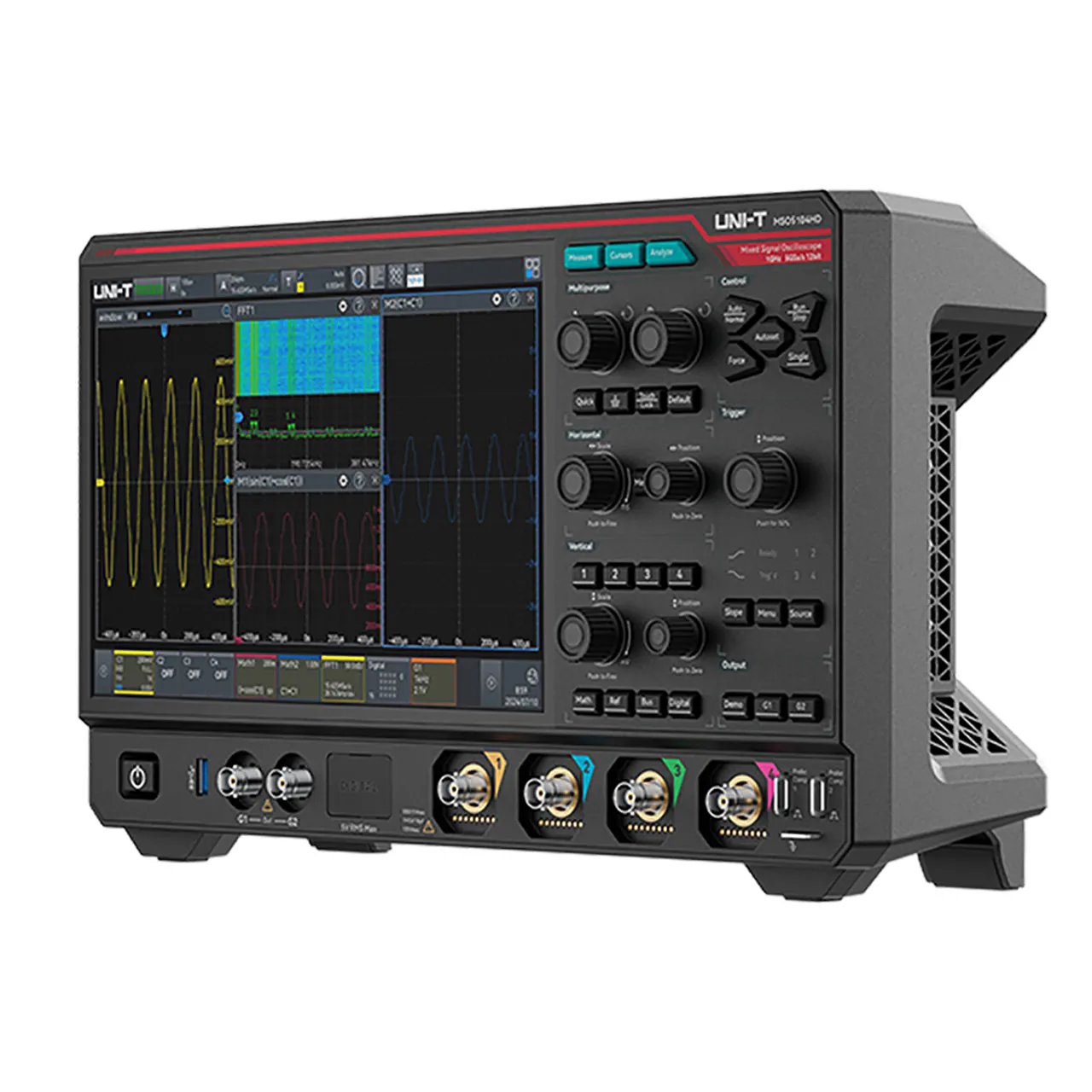

MSO5034HD 12-Bit 350MHz 4Ch Mixed Signal Oscilloscope

Features

• Bandwidth: 350MHz
• Channels: 4Ch
• Scope Type: MSO
• Scope Sample Rate: 5.0GSa/s
• Memory Depth: 500Mpts
• Refresh Rate: 1,500,000wfms/s
• Display Size: 10.1 in.
• Warranty: 3 years
• Interface: USB 3, LAN, HDMI, AUX, EXT, 10MHz REF In/Out
• Prop65: No
• Reach: No

Overview

A 12-Bit, Nine-in-One Benchtop powerhouse. The UNI-T MSO5034HD offers one instrument that can be a 350MHz, 4Ch High-Definition Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer. All with up to 5 years warranty.

Technical Specifications

• Other Accessories: Oscilloscope probe (UT-P08A)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)
• Accessories Universal Accessories: Power cord, USB3.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• Logic Probes: Optional
• Signal Generator: Optional
• Auto Measurements: 56
• Vertical Scale 1M : 500uV/div to 10V/div
• Included Bus Protocols: RS232, UART, I2C, SPI, CAN, LIN
• Frequency Meter: 7-bit
• T Screen: Yes
