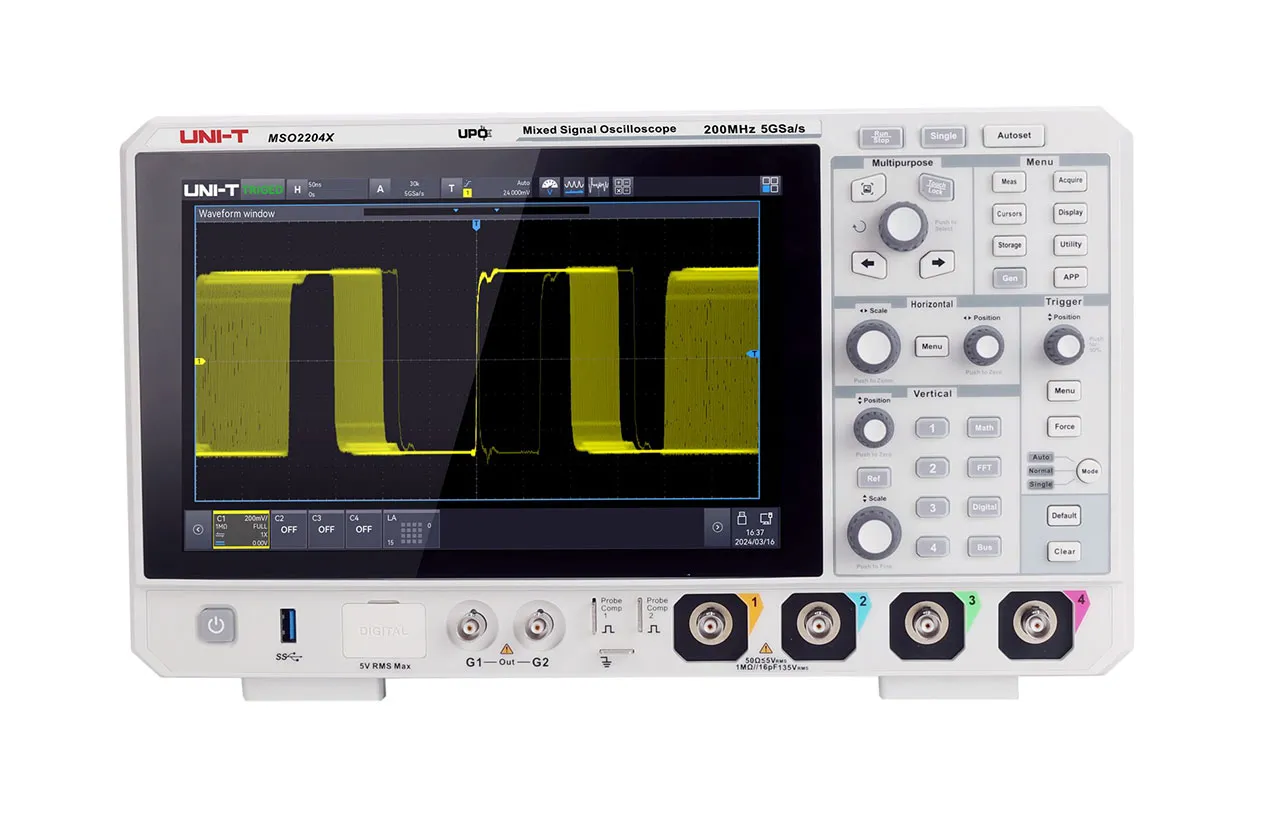

MSO2204X 200MHz 4Ch Mixed Signal Oscilloscope - Free Ultimate Bundle Ends 12/31/25
Features
- Bandwidth: 200MHz
- Channels: 4Ch
- Scope Type: MSO
- Scope Sample Rate: 5.0GSa/s
- Memory Depth: 100Mpts
- Refresh Rate: 2,000,000wfms/s
- Display Size: 10.1 in.
- Warranty: 3 years
- Interface: USB 3.0, LAN, AUX, Gen Out x 2, 10MHz In/Out, HDMI
- Prop65: No
- Reach: No
Overview
FREE ULTIMATE BUNDLE SALE!!! Through 12/31/2025 get our Ultimate Bundle option ($2,234) for FREE with the purchase of the MSO2204X. FREE ULTIMATE BUNDLE SALE!!! Through 12/31/2025 get our Ultimate Bundle option ($2,234) for FREE with the purchase of the MSO2304X. Give your test bench the X-Factor. This 200MHz, 9-in-one instrument deserves to be the centerpiece of your test rig. Start off with a high-sample rate, deep memory, and an easy-to-use touchscreen. Out of the box the MSO2000X operates as a Digital Phosphor Oscilloscope, Spectrum Analzyer, Digital Voltmeter, High-Precision Frequency Counter, and Protocol Analyzer. Affordably extend it to add a 16Ch Logic Analyzer, 2Ch 50MHz Waveform Generator, Bode Plot Analyzer, and Power Analyzer. Combine all of this with the piece of mind of up to 5 years worry free use with our no-charge warranty extension. All with up to 5 years warranty.
Technical Specifications
- Other Accessories: Oscilloscope probe (UT-P05)*4, BNC straight-through cable (UT-L45), BNC to alligator clip cable (UT-L02A)
- Accessories Universal Accessories: Power cord, USB3.0 printing cable
- Packing List: English download guide, multi-language safety manual, calibration report (COC)
- Software Downloads
- Logic Probes: Optional
- Signal Generator: Optional
- Auto Measurements: 54
- Vertical Scale 1M : 500uV/div to 10V/div
- Included Bus Protocols: RS232, UART, I2C, SPI, RS422, RS485
- Frequency Meter: 7-bit
- T Screen: Yes
