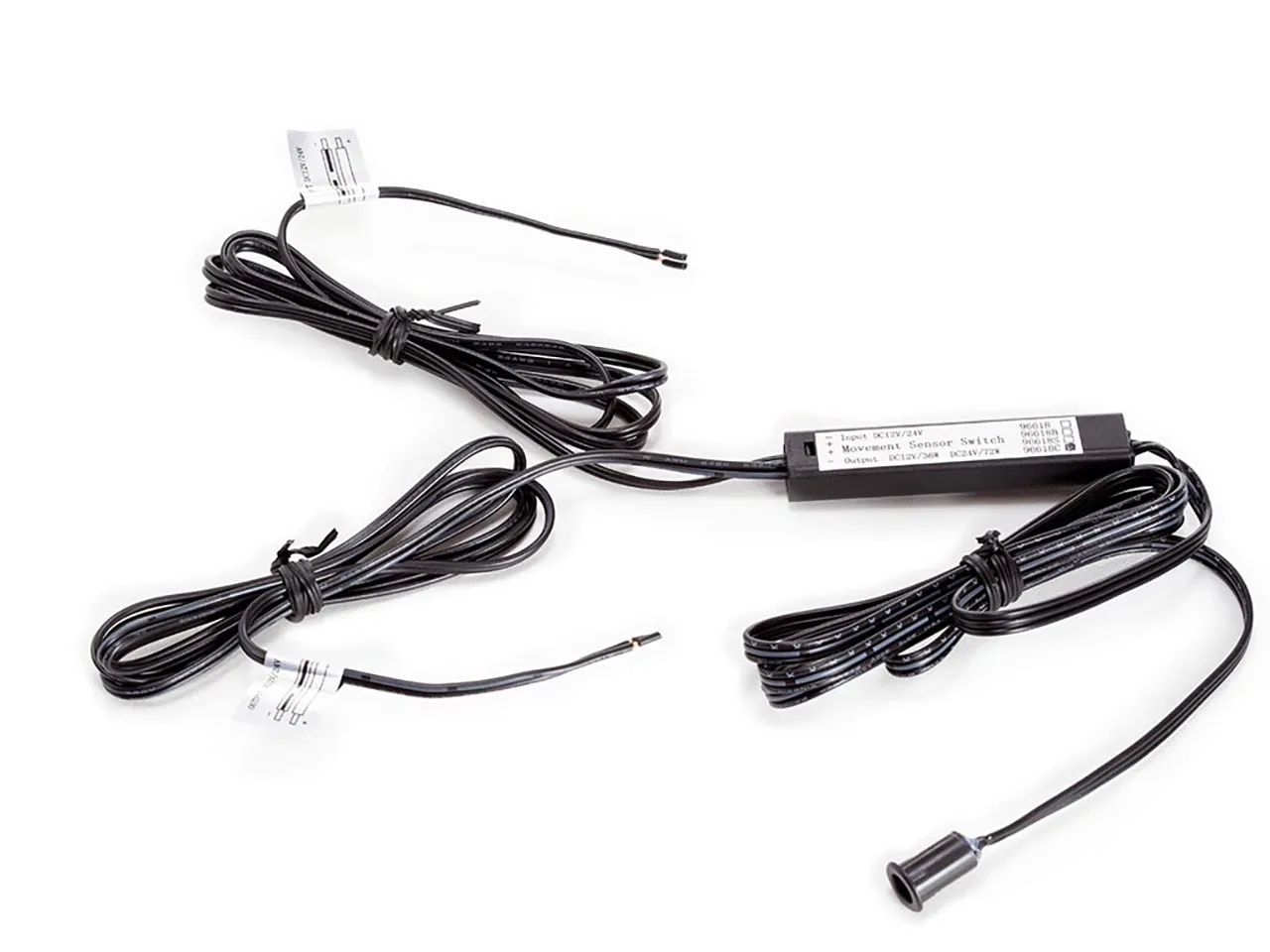

Movement Sensor Switch Recessed Installation 12V/24V

Features

• Primary color: Black
• Depth unit: 0.6 mm
• Height unit: 13 mm
• Width unit: 65 cm
• Weight unit: 40 g
• Material: PC (polycarbonate)
• Cable length: 100 cm

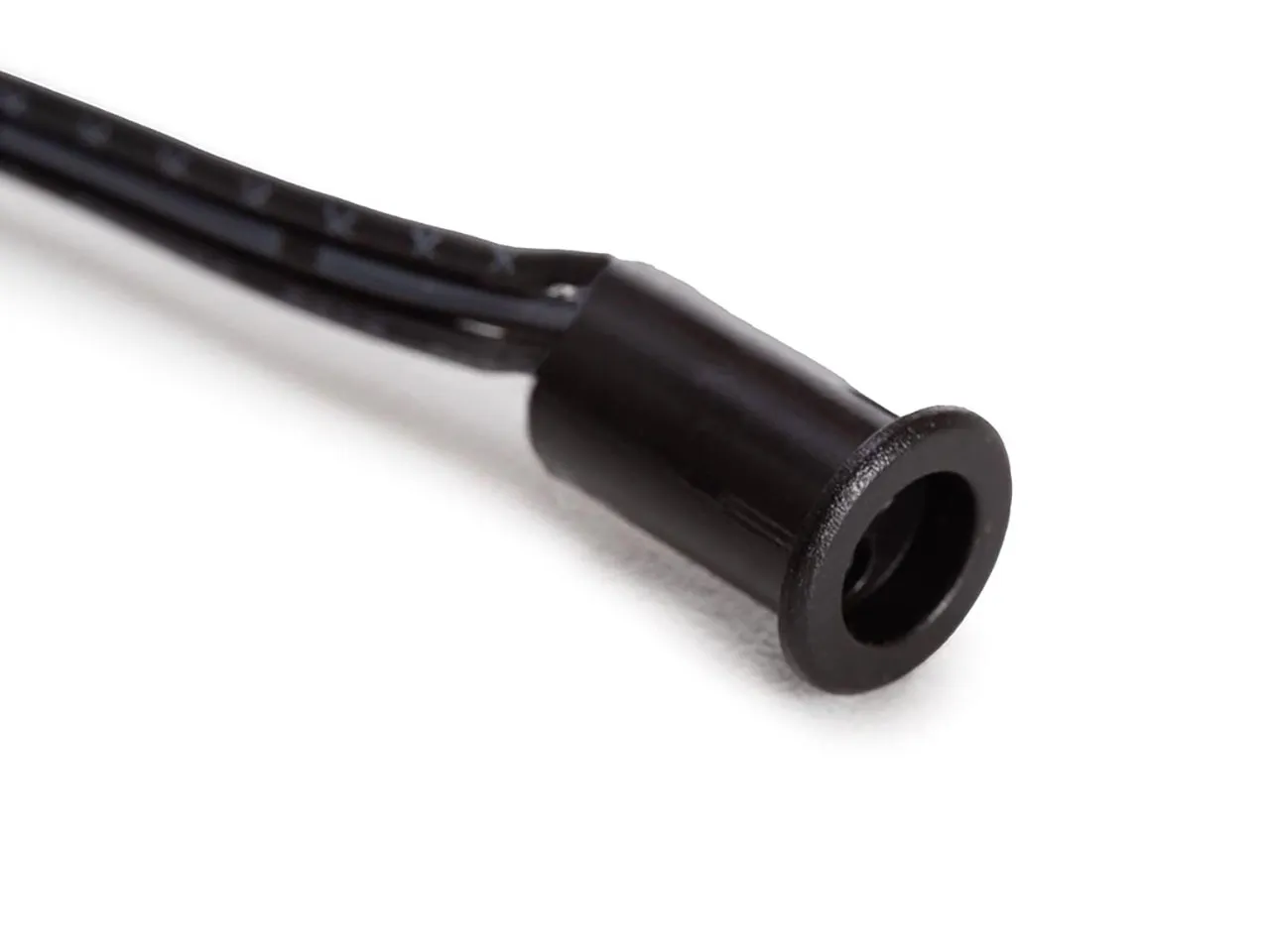

• diameter sensor: 10.5 mm
• width sensor: 14 mm
• Maximum current rating: 3 A
• IEC protection class: Class III
• Power consumption range: 36-72 W
• Quiescent current: 6 mA
• Mounting type: Recessed
• Sensor type: IR
• Detection range: 5-20 cm
• Operating temperature range: -20-45 °C
• Diameter mounting hole (mm): 8 mm
• Input voltage rating VDC range: 12-24 V

Overview

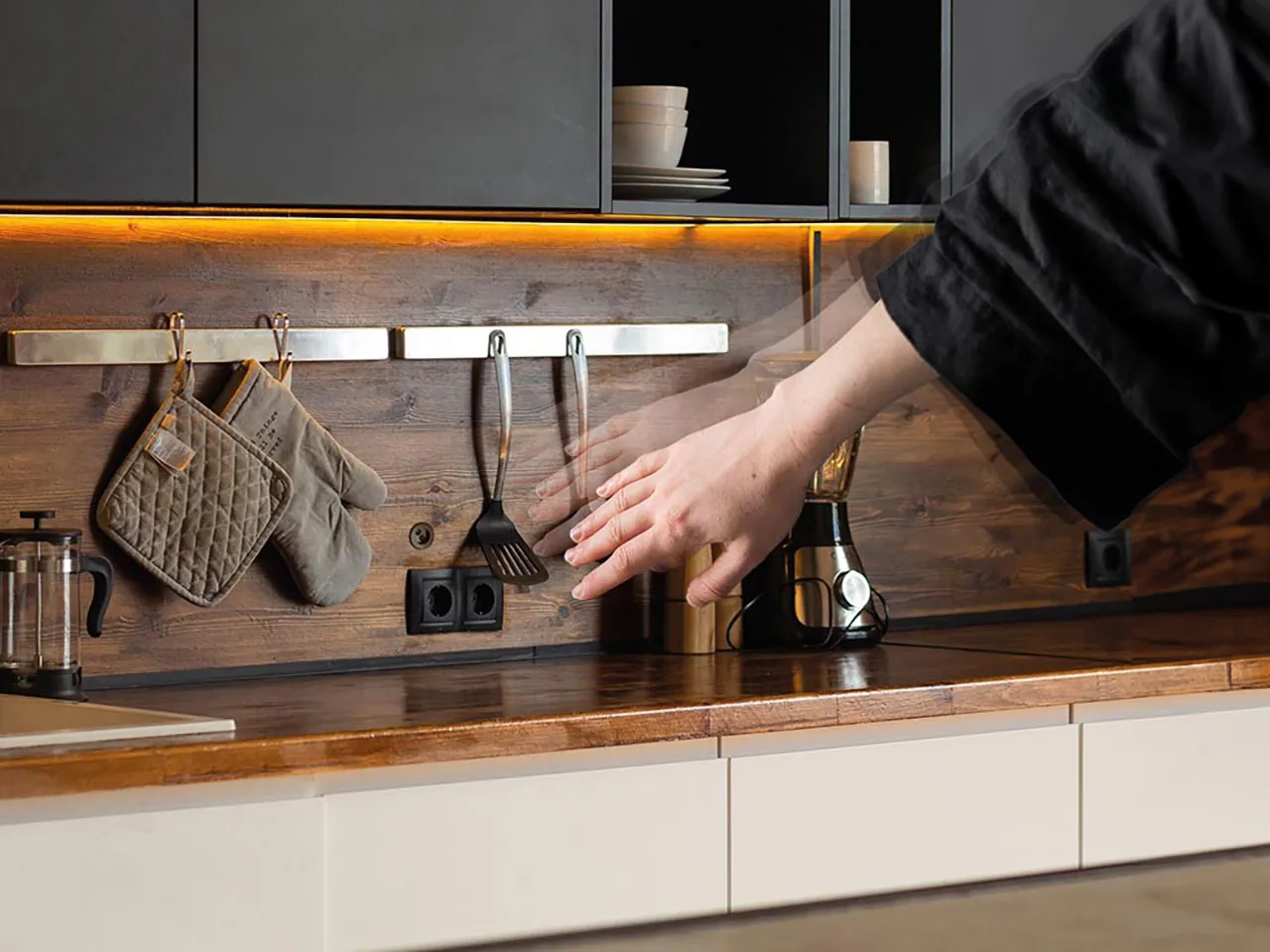

This compact switch sensor nicely conceals the control of LED lighting. Simply mount this sensor for flush mounting in the cabinet by drilling an 8mm hole. You can easily conceal the electronic control module in a false wall. This will give you a perfectly finished installation. With just one wave of your hand, you activate the LED strip. A second wave and the lights go out again. Transform your space with this convenient, smart solution. Choose our recessed switch sensor and bring innovation to your interior.
