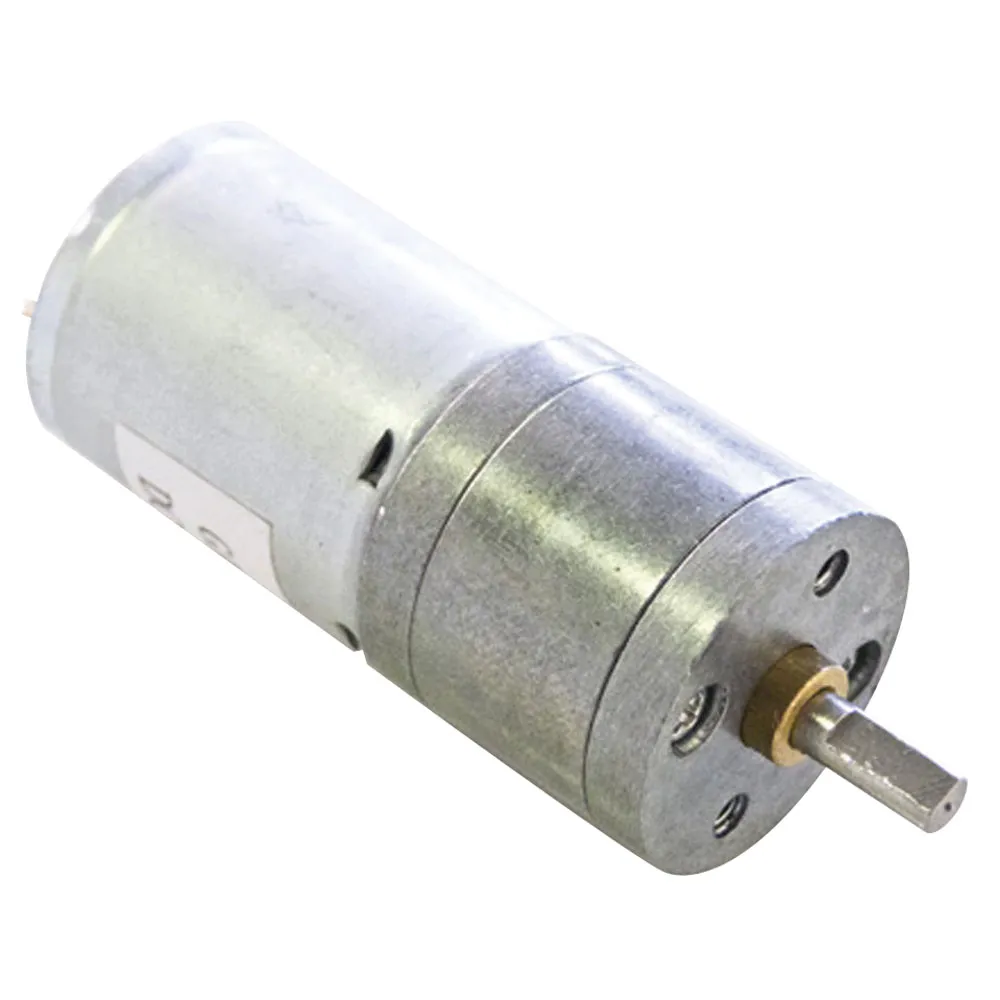

75:1 Metal Gearmotor (6VDC / 133RPM)

This is a powerful motor fitted with a 74.8:1 gearbox. The gears are all steel and the output shaft is 4mm diameter.

Specifications:

  • Voltage: 6V (7.5V max)
  • No load current: 350mA
  • Stall current: 5.5A
  • Stall torque: 12Kg/cm
  • Motor RPM: 133RPM +/- 5%
  • RPM after Gear Reduction: 133 +/- 5%
  • Length: 2.2"
  • Diameter: 0.98"
  • Shaft length: 0.40"
  • Shaft length including collar: 0.48"
Alternate angle image

Product Identification

Additional Feature:Metal Gears

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Shaft Style:D
Shaft Diameter:0.16 in.
Shaft Length:0.38 in.

Input

Input Voltage Range:6 VDC to 7.5 VDC

Features

Gear Case Size (Diameter x Length) (inch):0.98 x 0.90
Motor Size (Diameter x Length) (inch):0.97 x 1.2
Gear Ratio:75:1
Motor Speed @ Max. Efficiency (RPM):133
Current @ Max. Efficiency (mA):350
Voltage Rating:6 VDC
Terminal Type:Solder Tabs
Torque @ Max. Efficiency (g-cm):8800
,
