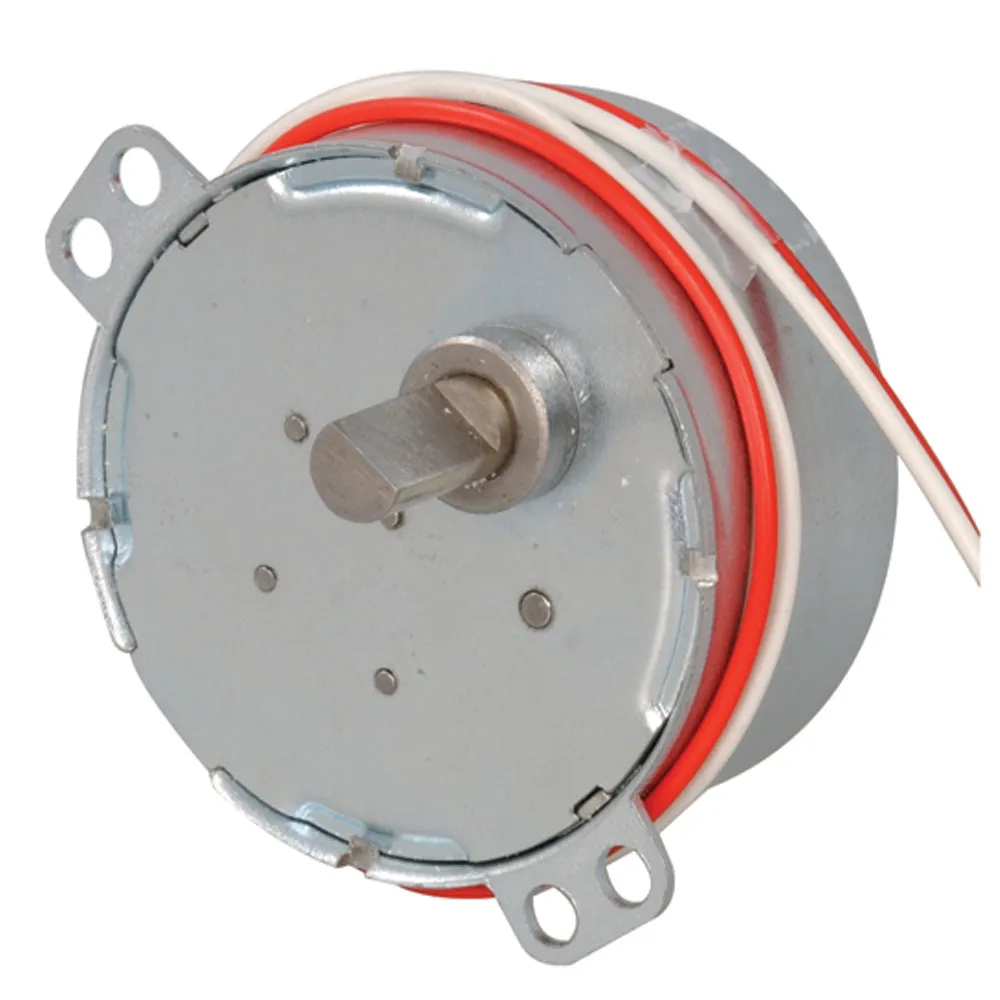

120VAC Gear Motor

6 RPM @ 2.9 Watts

Features:

  • Operation voltage: 120VAC @ 60Hz
  • Direction of Rotation: Clockwise
  • Torque: >3.6kg-cm
  • Screw down tabs for mounting (2.3" diagonal mounting hole space)
  • Shaft size: 0.27" diameter x 0.65" length
  • Total size: 2.0" diameter x 1.0" depth
  • Lead length: 12 inches
  • Typical applications: Air conditioner turnleaf motor, microwave turnplate motor, etc.

Dimensions & Appearance

Shaft Diameter:0.275 in.
Shaft Length:0.47 in.
Shaft Style:D

Features

Motor Speed @ Max. Efficiency (RPM):6
Current @ Max. Efficiency (mA):40
Torque @ Max. Efficiency (g-cm):6700
Gear Case Size (Diameter x Length) (inch):N/A
Gear Ratio:N/A
Terminal Type:Wires
Voltage Rating:120 VAC
Motor Size (Diameter x Length) (inch):1.97 x 1.02
,
