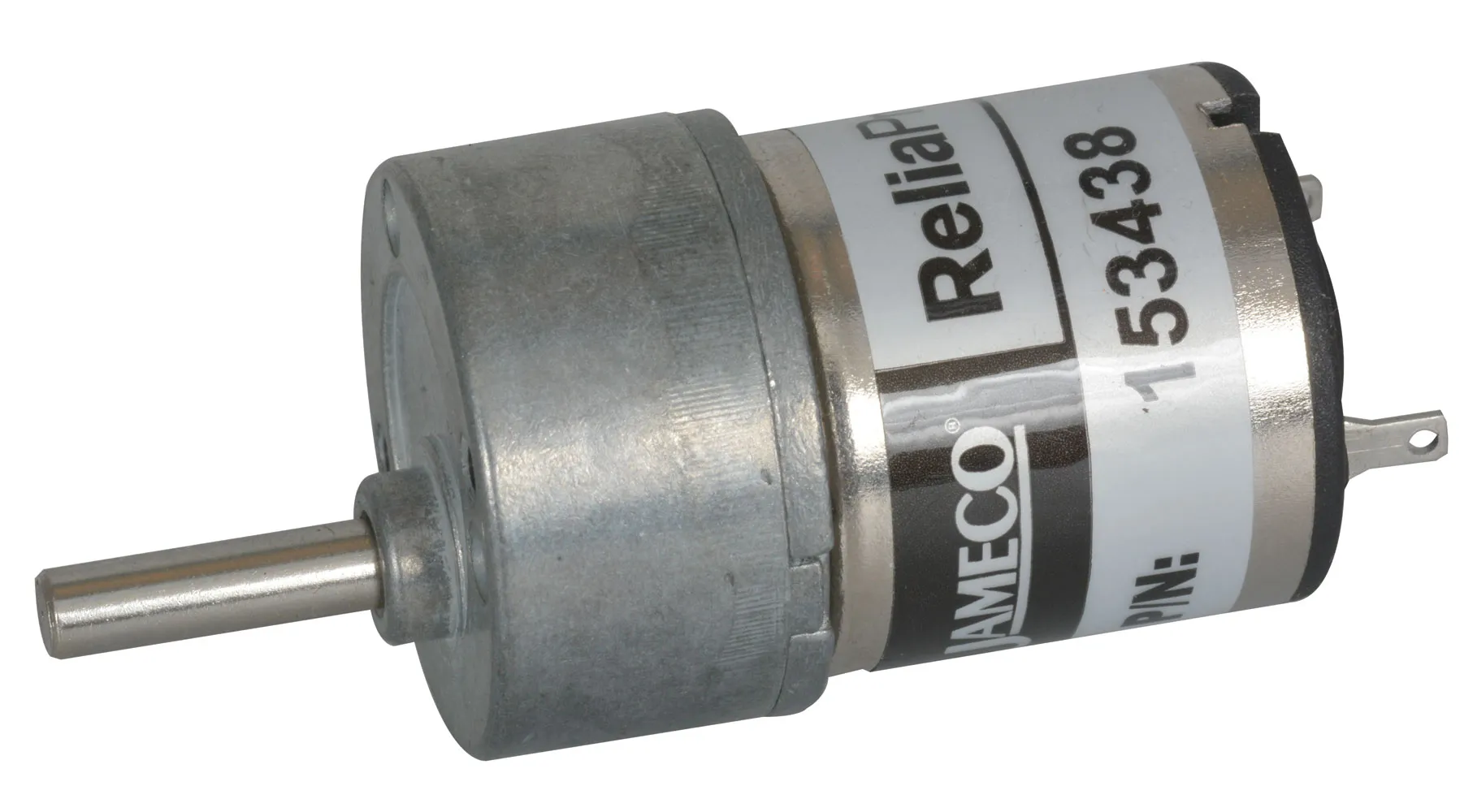

12VDC Reversible Gear Head Motor

GH30GM Series

Features:

  • Nominal voltage: 12VDC
  • Voltage range: 3.0 - 12VDC
  • Current @ maximum efficiency: 0.09A
  • Speed @ maximum efficiency: 13 RPM
  • Torque @ maximum efficiency: 800 g-cm
  • Gear ratio: 200:1
  • Gear case size: 0.9" diameter x 1.0" length
  • Motor size: 1.1" diameter x 0.6" length
  • Shaft size: 0.16" diameter x 0.7" length
  • Solder-type terminals
  • Dielectric strength: 300VDC
  • Insulation resistance: 10MΩ
  • Oil bearing design for long service life
  • Screw Mount Dimensions: M2.6

    • Product Identification

    Additional Feature:Metal Gears

    Dimensions & Appearance

    Shaft Diameter:0.16 in.
    Shaft Length:0.7 in.
    Shaft Style:D

    Input

    Input Voltage Range:3.0 VDC to 12 VDC

    Features

    Motor Speed @ Max. Efficiency (RPM):12
    Gear Case Size (Diameter x Length) (inch):1.10 x 0.60
    Current @ Max. Efficiency (mA):90
    Gear Ratio:200:1
    Terminal Type:Solder Tabs
    Torque @ Max. Efficiency (g-cm):800
    Voltage Rating:12 VDC
    Motor Size (Diameter x Length) (inch):0.9 x 1.0
    ,
