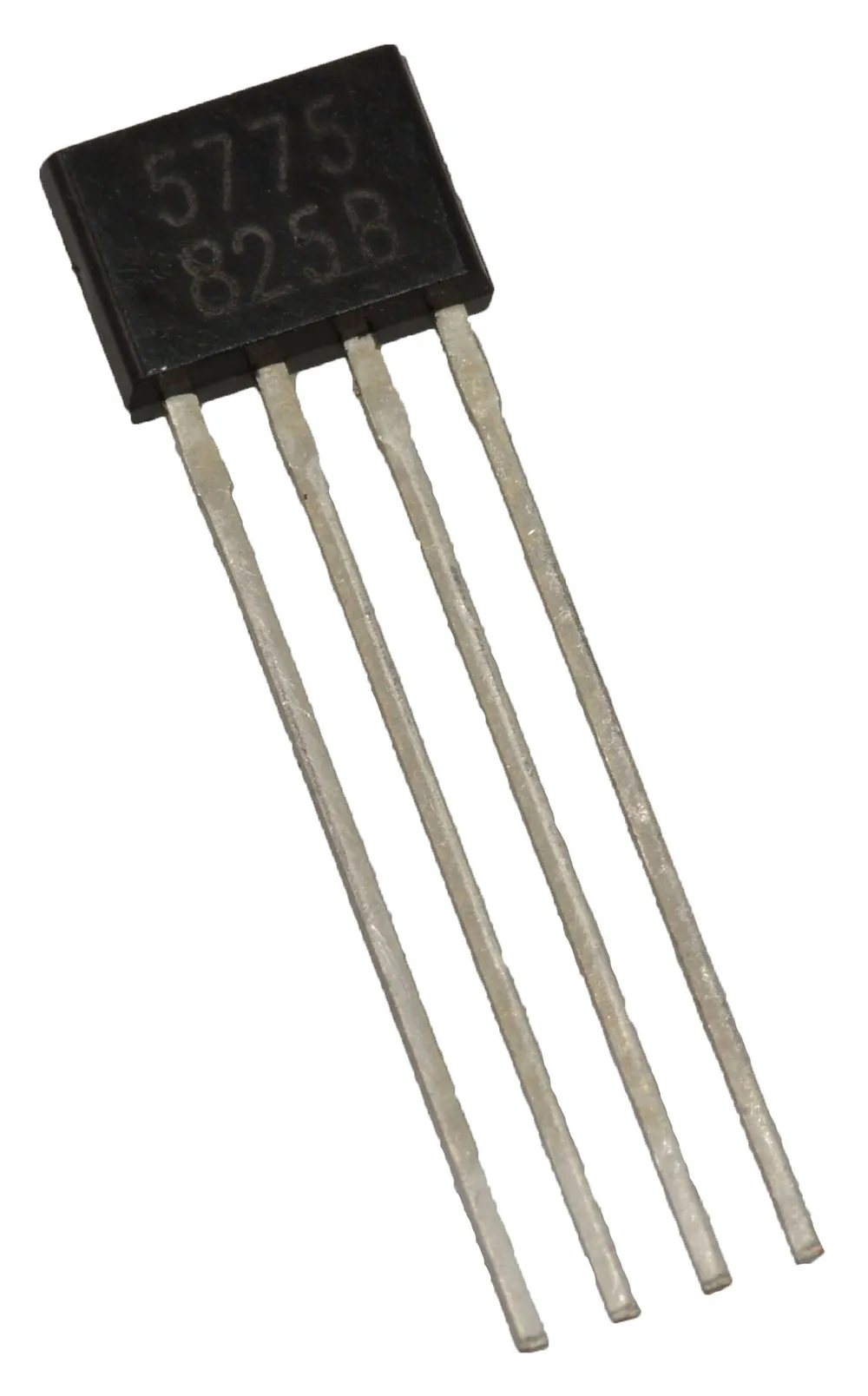

Motor Driver Power MOSFET ON/OFF TO-94

Specifications

  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Interface: On/Off
  • Technology: Power MOSFET
  • Step Resolution: n/a
  • Applications: Fan Motor Driver
  • Current - Output: 300 mA
  • Voltage - Supply: 2.5 V to 18 V
  • Voltage - Load: 2.5 V to 18 V
  • Operating Temperature: -40°C to 150°C (TJ)
  • Mounting Type: Through Hole
  • Package: 4-SIP, TO-94

Product Identification

Product Type:Driver - Fully Integrated, Control and Power Stage

Packaging

Package:TO-94

Input

Minimum Input Voltage:2.5 V
Maximum Input Voltage:24 V
Input Voltage:18 V

Features

Maximum Operating Current:4.5 mA
,
