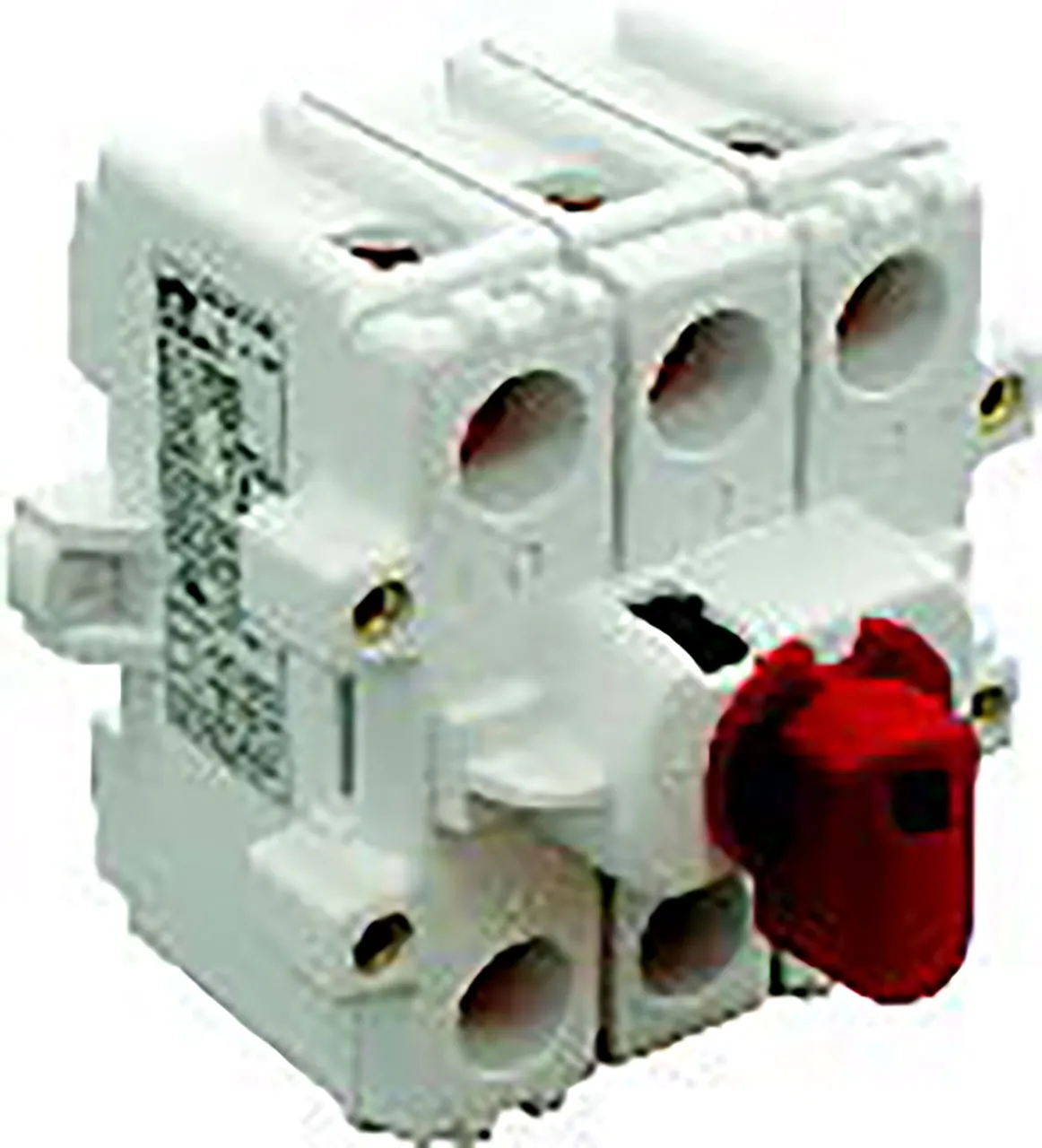

Motor Disconnect Switch 3 Pole Extended Style 80A/600V

Features

• Poles: 3
• Weight 3 Pole: 0.480 kg (1.058 lb.)
• General Purpose Current: 80 A
• Maximum Voltage: 600V AC
• Motor FLA @ 600V AC: 47 A
• Horsepower Rating/HP: 110-120V AC - 1 Phase: 3
• Horsepower Rating/HP: 200V AC - 1 Phase: 7.5
• Horsepower Rating/HP: 208V AC - 1 Phase: 7.5
• Horsepower Rating/HP: 220-240V AC- 1 Phase: 7.5
• Horsepower Rating/HP: 265V AC - 1 Phase: 10
• Horsepower Rating/HP: 277V AC - 1 Phase: 10
• Horsepower Rating/HP: 380-415V AC - 1 Phase: 15
• Horsepower Rating/HP: 440-480V AC - 1 Phase: 20
• Horsepower Rating/HP: 550-600V AC - 1 Phase: 25
• Horsepower Rating/HP: 110-120V AC - 3 Phase: 7.5
• Horsepower Rating/HP: 200V AC - 3 Phase: 10
• Horsepower Rating/HP: 208V AC - 3 Phase: 15
• Horsepower Rating/HP: 220-240V AC- 3 Phase: 15
• Horsepower Rating/HP: 265V AC - 3 Phase: 20
• Horsepower Rating/HP: 277V AC - 3 Phase: 20
• Horsepower Rating/HP: 380-415V AC - 3 Phase: 25
• Horsepower Rating/HP: 440-480V AC - 3 Phase: 30
• Horsepower Rating/HP: 550-600V AC - 3 Phase: 40
• Short Circuit Withstand Rating at 600 V with Max. Fuse Size/Class: 10 kA
• Fuse K5: 150 A
• Fuse RK5: 150 A
• Fuse J: 200 A
• Terminal Size Acceptability (Cu Conductors only, 75 °C): 8-1/0 AWG
• Terminal Torque: 50 lb. in. (5.6 Nm)
• Screw Head Type: 5 mm Allen Key
• Extended Handle Applications (Door Interlock Mechanism) - Shaft: L(1,2.3)00AD11-ST
• Extended Handle Applications (Door Interlock Mechanism) - Handles: LK10 (Y/R) UL, LK11 (Y/R) U
• Extended Handle Applications (Door Interlock Mechanism) - Auxiliary Switch: VKA.1V, VKA2.V
• Direct Handle Applications - Handle for 3 Pole: K/VKA3-4P (Y/R)
• Direct Handle Applications - Door Mounting Kits: OKA/VKA x

Overview

Motor Disconnect Switch 3 Pole Extended Style 80A/600V
