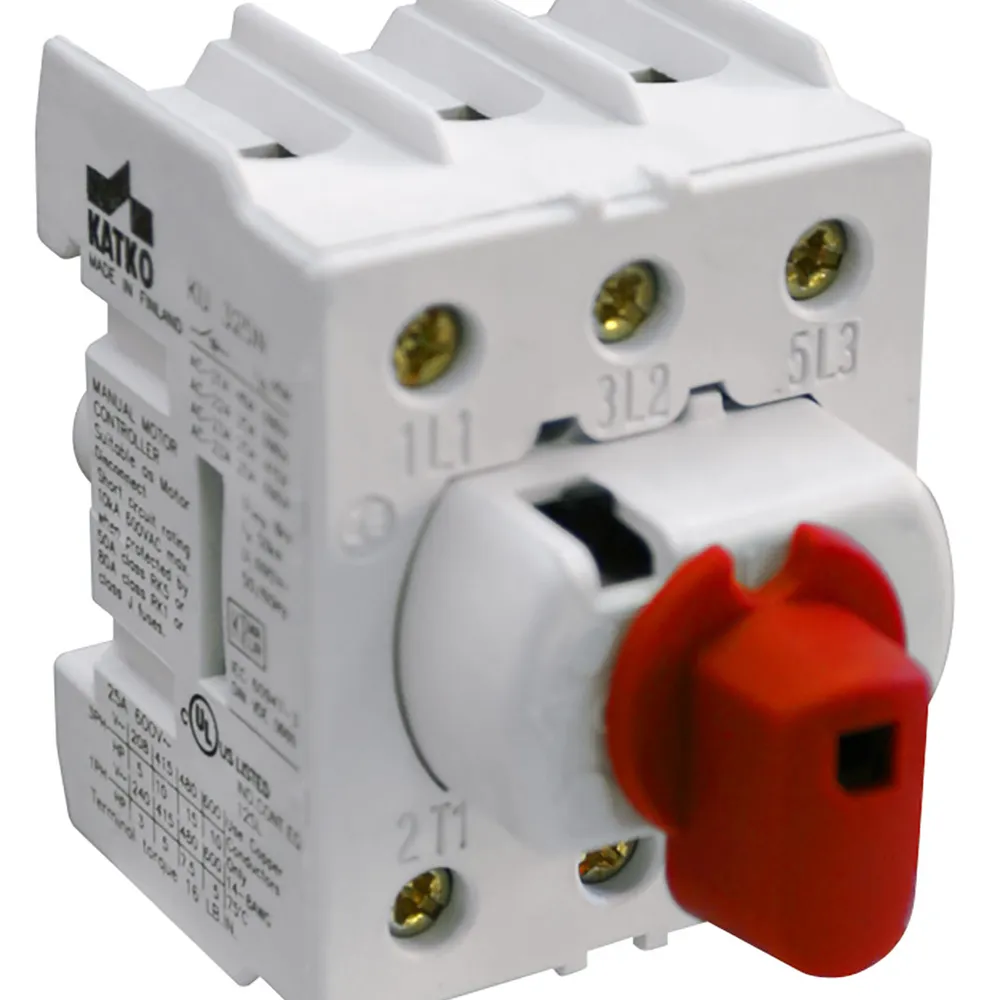

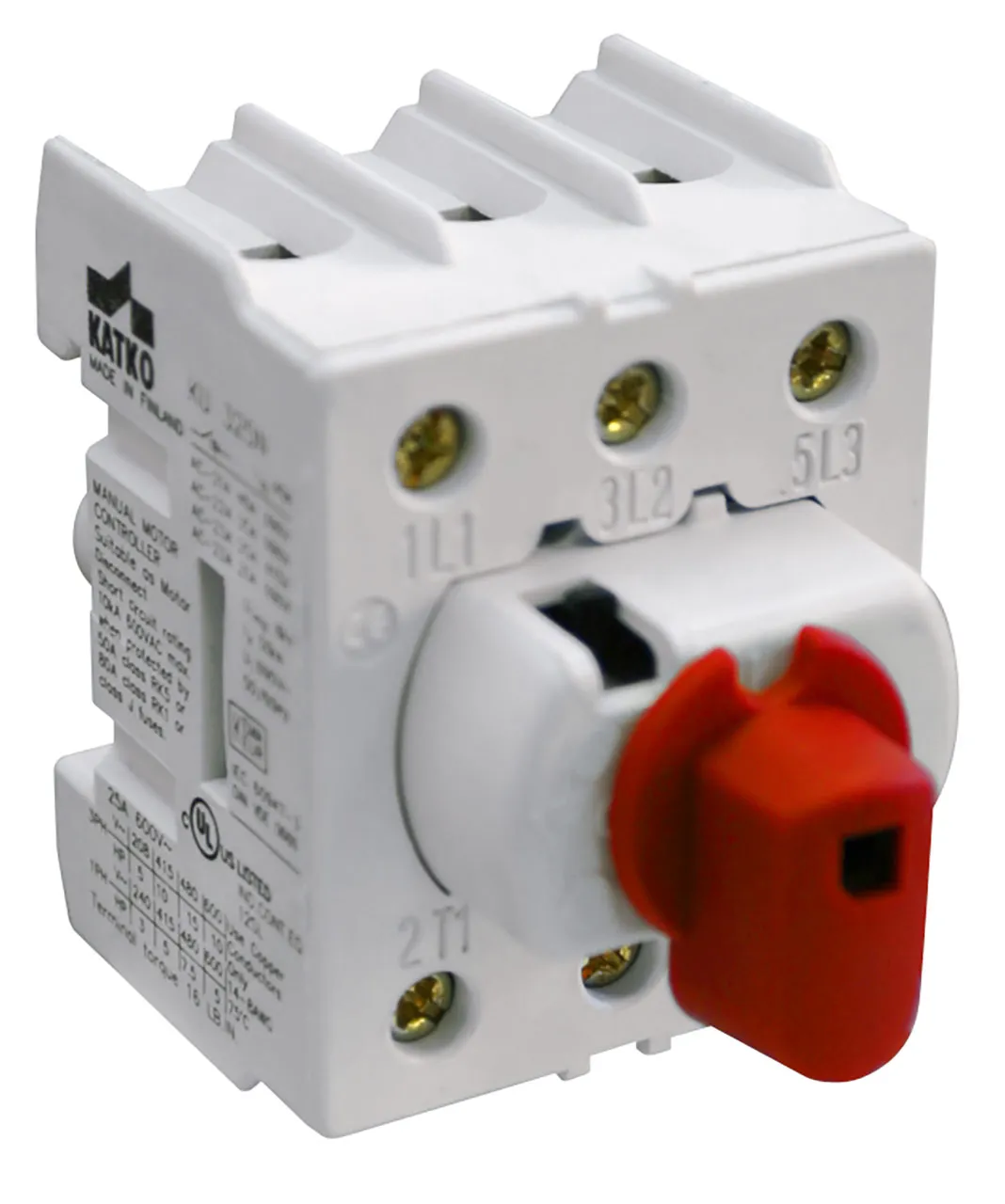

Motor Disconnect Switch 3 Pole Extended Style 25A/600V (KNF320N)

Features

• Poles: 3
• Weight 3 Pole: 0.172 kg (0.379 lb.)
• Weight 4 Pole: 0.215 kg (0.474 lb.)
• General Purpose Current: 25 A
• Maximum Voltage: 600V AC
• Motor FLA @ 480V AC: 21 A
• Motor FLA @ 600V AC: 11A
• Horsepower Rating/HP: 110-120V AC - 1 Phase: 1.5
• Horsepower Rating/HP: 200V AC - 1 Phase: 2
• Horsepower Rating/HP: 208V AC - 1 Phase: 2
• Horsepower Rating/HP: 220-240V AC- 1 Phase: 3
• Horsepower Rating/HP: 110-120V AC - 3 Phase: 3
• Horsepower Rating/HP: 200V AC - 3 Phase: 5
• Horsepower Rating/HP: 208V AC - 3 Phase: 5
• Horsepower Rating/HP: 220-240V AC- 3 Phase: 5
• Horsepower Rating/HP: 265V AC - 3 Phase: 7.5
• Horsepower Rating/HP: 277V AC - 3 Phase: 7.5
• Horsepower Rating/HP: 380-415V AC - 3 Phase: 10
• Horsepower Rating/HP: 440-480V AC - 3 Phase: 15
• Horsepower Rating/HP: 550-600V AC - 3 Phase: 10
• Short Circuit Withstand Rating at 600 V with Max. Fuse Size/Class: 10 kA
• Fuse K5: 30 A
• Fuse RK5: 30 A
• Fuse RK1: 60 A
• Fuse J: 80 A
• Terminal Size Acceptability (Cu Conductors only, 75 °C): 14-8 AWG
• Terminal Torque: 16 lb. in. (1.8 Nm)
• Screw Head Type: No. 2 Pozidrive
• Extended Handle Applications (Door Interlock Mechanism) - Shaft: L(1,2,3)00AD11-ST
• Extended Handle Applications (Door Interlock Mechanism) - Handles: LK10 (Y/R) UL, LK11 (Y/R) U
• Extended Handle Applications (Door Interlock Mechanism) - Auxiliary Switch: KU1.V, KU2.V
• Direct Handle Applications - Handle for 3 Pole: K/KU3P (Y/R)
• Direct Handle Applications - Handle for 4 Pole: K/KU4P (Y/R)
• Direct Handle Applications - Door Mounting Kits: OKA/KU LK10 x; OKA x

Overview

Motor Disconnect Switch 3 Pole Extended Style 25A/600V (KNF320N)
