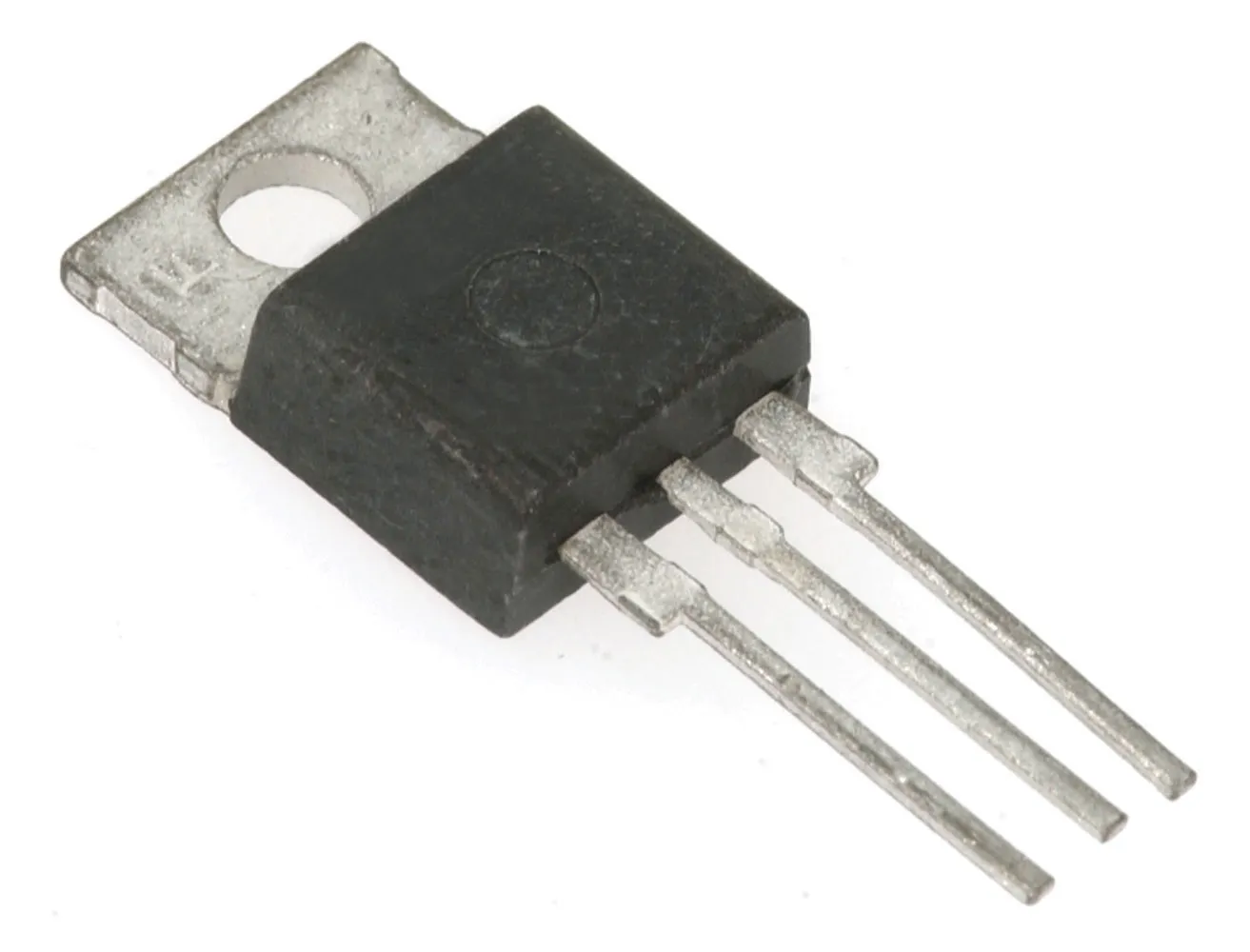

Improve efficiency in high-power applications with Jameco's stock of high current voltage regulators. These handy devices can be used in parallel to double output current capability. Our selection of voltage regulators are designed for a wide range of applications such as on-card regulation for elimination of noise & distribution problems associated with single-point regulation.- N CHANNEL POWER MOSFET
- 60V (±10%)
- 30A
- TO-220AB
For more about Transistors, click here.
Product Identification
Family:IRLZ34
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Length:10.54 mm
Width:4.69 mm
Height:8.77 mm
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:880pF@25V
Output
Output Power:68W
Features
Number of Elements per Chip:1
Channel Type:N
Transistor Polarity:N
Maximum Gate Source Voltage:±16V
Pins:3
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Maximum Drain Source Voltage:55 V
Typical Turn-On Delay Time:8.9ns
Repetitive Peak Reverse Voltage:55VDC
Maximum Drain Source Resistance:0.035 Ohms@10V
Maximum Reverse Current:25uA
Typical Turn-Off Delay Time:21ns
Typical Gate Charge @ Vgs:25nC @5V
Maximum Continuous Drain Current:30 A
Peak Reverse Recovery Time:110ns
Typical Fall Time:29ns
Peak Non-Repetitive Surge Current:110A
Power Dissipation:68 W
Maximum Forward Current:30A
Typical Rise Time:100ns
Maximum Forward Voltage:55VDC
Configuration:Single
