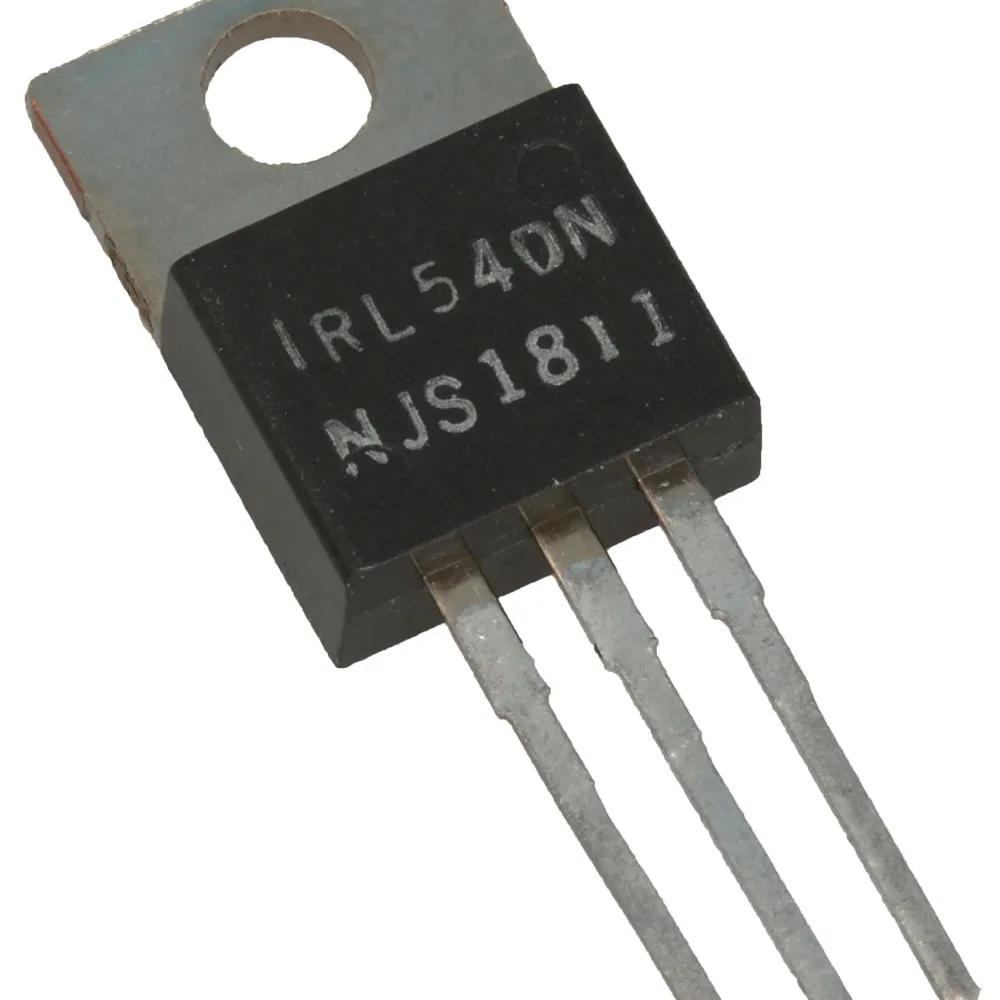

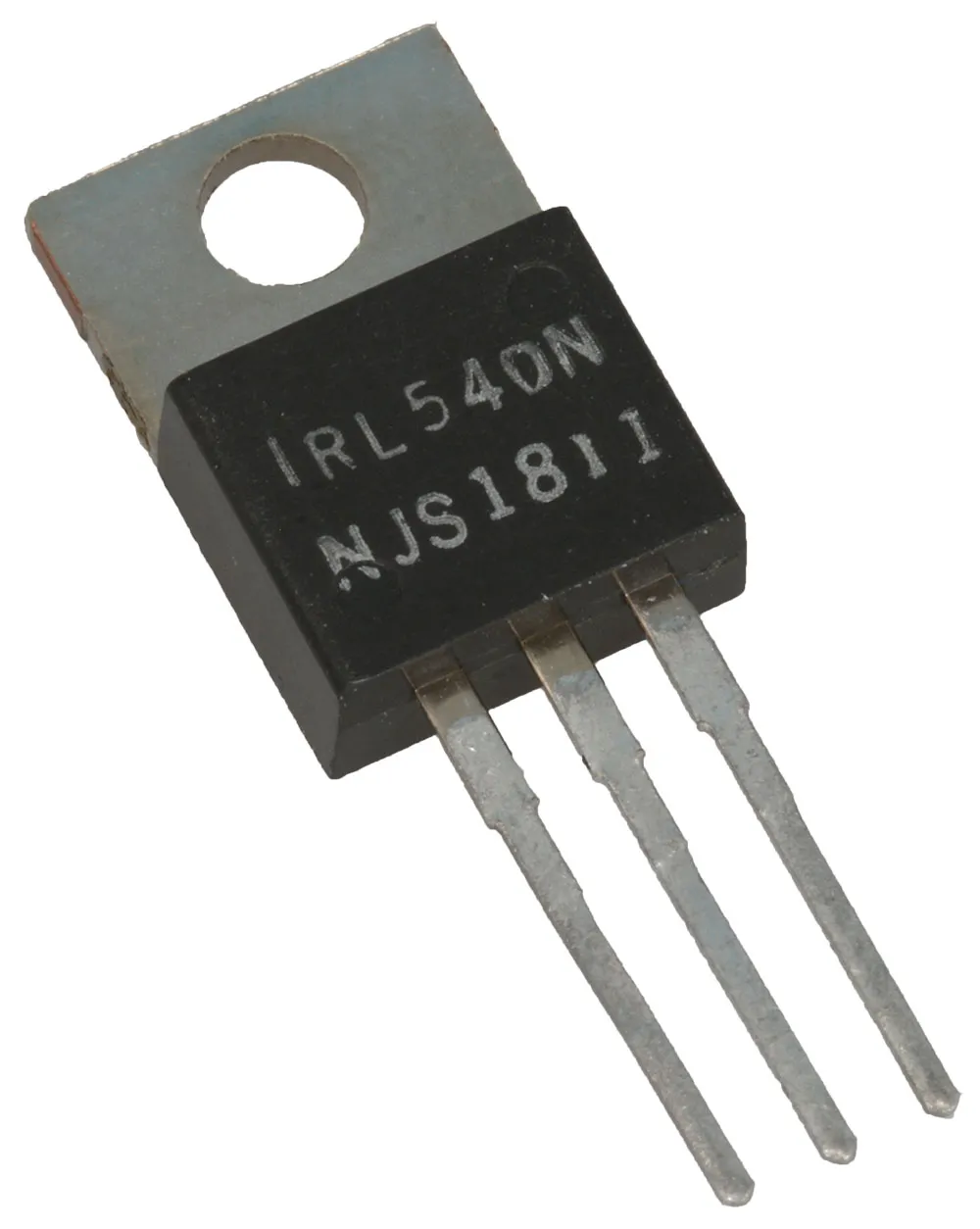

TRANSISTOR, IRL540N, N CHANNEL POWER MOSFET, 100V, 36A, TO-220AB
For more about Transistors, click here.
Product Identification
Family:IRL540
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Length:10.54 mm
Width:4.69 mm
Height:8.77 mm
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:1800pF@25V
Output
Output Power:140W
Features
Number of Elements per Chip:1
Channel Type:N
Transistor Polarity:N
Maximum Gate Source Voltage:±16V
Pins:3
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Repetitive Peak Reverse Voltage:55VDC
Maximum Drain Source Voltage:100 V
Maximum Reverse Current:25uA
Typical Turn-On Delay Time:11ns
Maximum Drain Source Resistance:0.044 Ohms@10V
Typical Turn-Off Delay Time:39ns
Peak Reverse Recovery Time:81ns
Maximum Continuous Drain Current:36 A
Typical Gate Charge @ Vgs:74nC @5V
Peak Non-Repetitive Surge Current:120A
Maximum Forward Current:36A
Typical Fall Time:62ns
Typical Rise Time:81ns
Power Dissipation:140 W
Maximum Forward Voltage:100VDC
Configuration:Single
