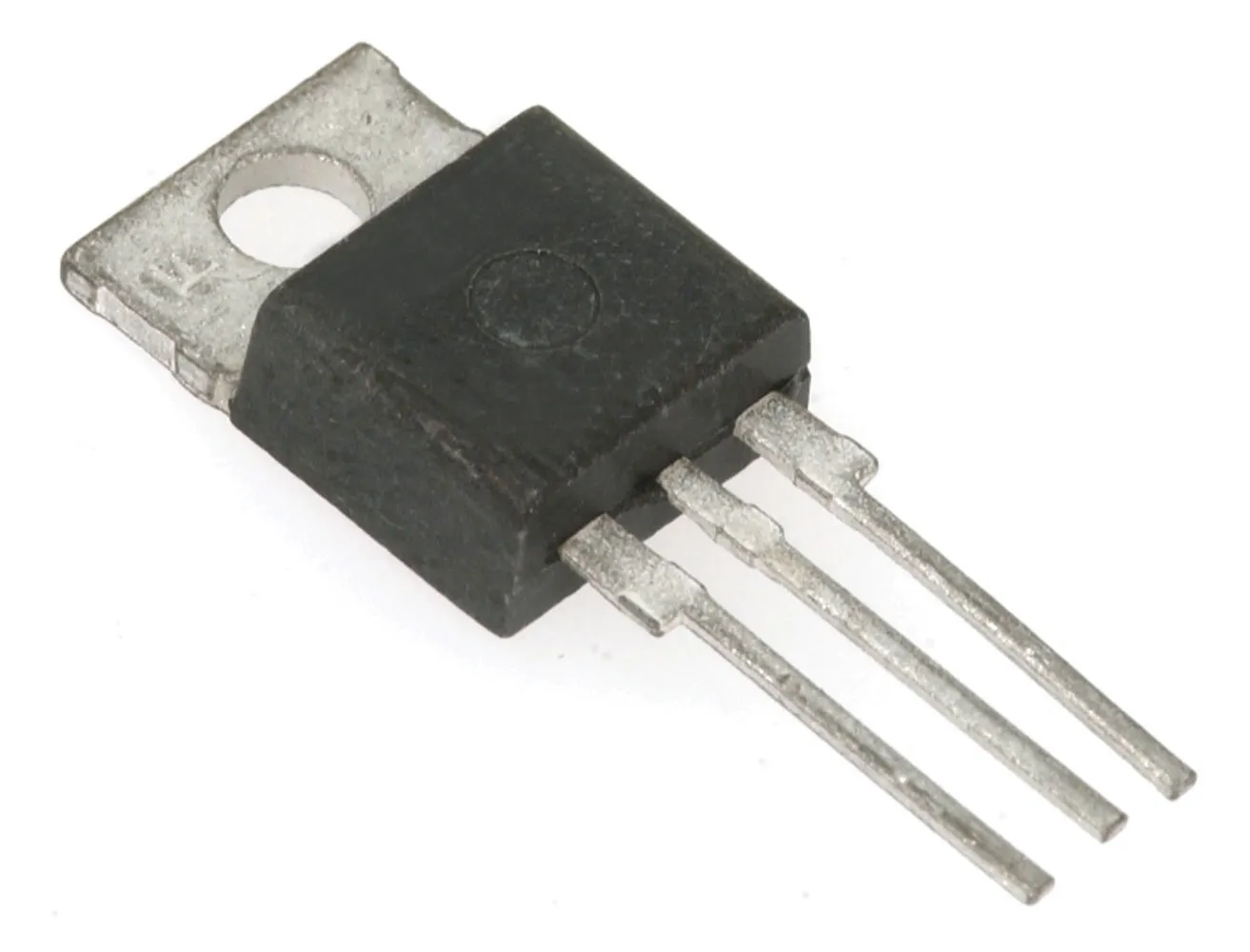

TRANSISTOR, IRFZ44N, N CHANNEL POWER MOSFET, 55V, 49A, TO-220AB
For more about Transistors, click here.
Product Identification
Family:IRFZ
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Length:10.28 mm
Width:4.57 mm
Height:9.02 mm
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:3223pf@25V
Output
Output Power:94W
Features
Number of Elements per Chip:1
Channel Type:N
Typical Gate Charge @ Vgs:11nC@10V
Transistor Polarity:N
Pins:3
Maximum Gate Source Voltage:±20V
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Maximum Drain Source Voltage:55 V
Repetitive Peak Reverse Voltage:55VDC
Maximum Reverse Current:25uA
Peak Reverse Recovery Time:53ns
Typical Turn-On Delay Time:19ns
Maximum Continuous Drain Current:49 A
Typical Turn-Off Delay Time:85ns
Peak Non-Repetitive Surge Current:160A
Maximum Drain Source Resistance:22 mOhms@6V
Maximum Forward Current:49A
Typical Rise Time:185ns
Power Dissipation:94 W
Typical Fall Time:165ns
Maximum Forward Voltage:55VDC
Configuration:Single
