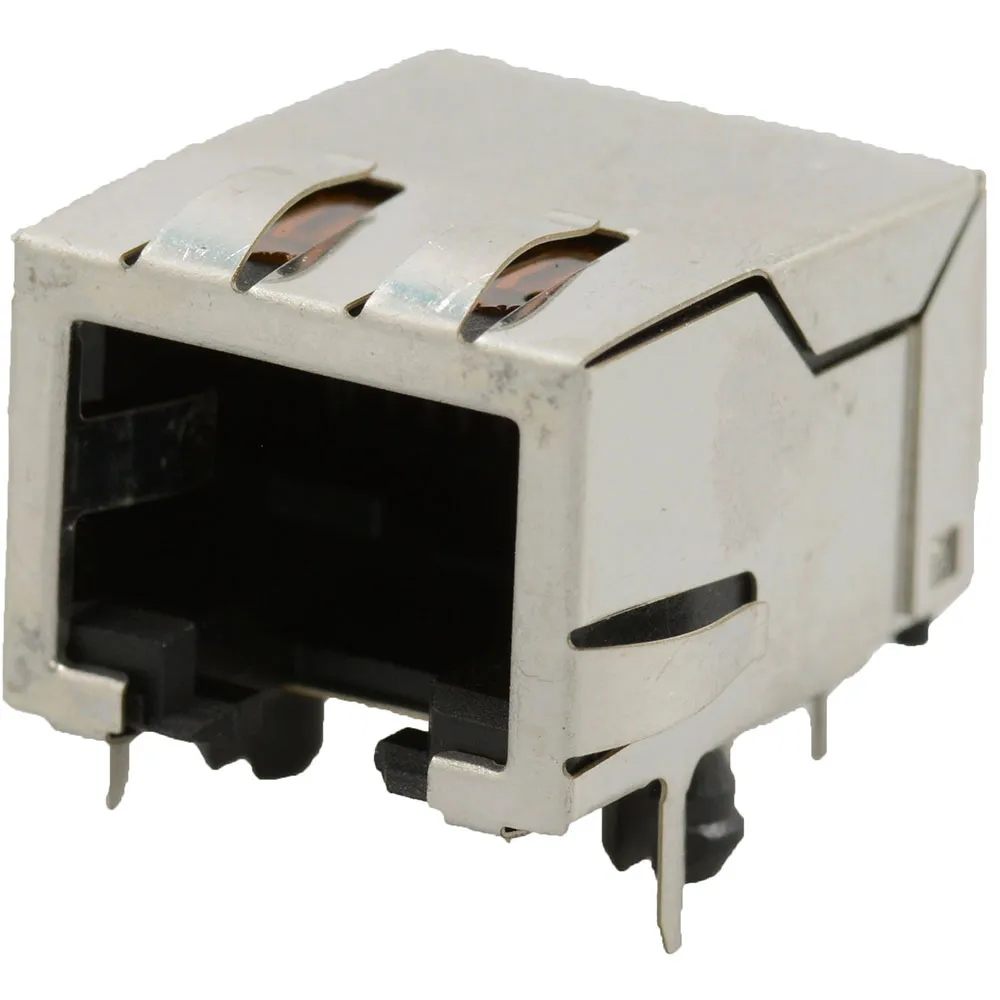

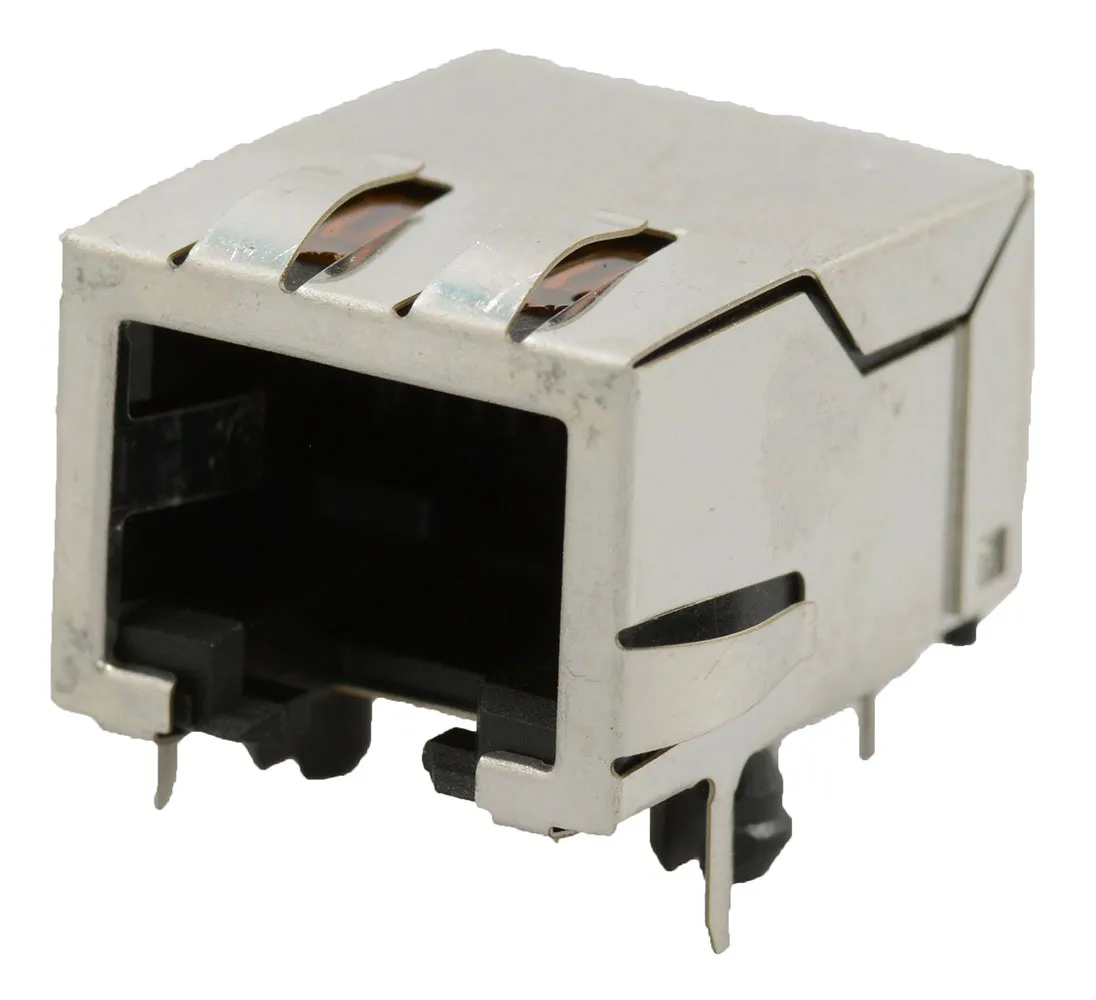

Modular Jack Connector 8P8C RJ45 Ethernet Right Angle Shielded EMI Finger

Features

  • Connector Type: Jack
  • Number of Ports: 1
  • Number of Rows: 1
  • Number of Positions/Contacts: 8P8C (RJ45, Ethernet)
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • Termination: Solder
  • Shielding: Unshielded
  • Ratings: n/a
  • Features: Board Lock
  • LED Color: Does Not Contain LED
  • Ingress Protection: n/a
  • Tab Direction: Down
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Contact Finish Thickness: 50 µin (1.27 µm)
  • Housing Material: Thermoplastic
  • Operating Temperature: -40°C to 85°C

Product Identification

Product Type:Modular Jack
Manufacturer Series:ValuePro
Common Name:RJ45

Dimensions & Appearance

Body Orientation:Right Angle
Style:Receptacle
Mounting:Through Hole

Features

Entry:Side
Panel Stops:No
Shielded:Yes
Housing Color:Black
Contact Arrangement:8P8C
,
