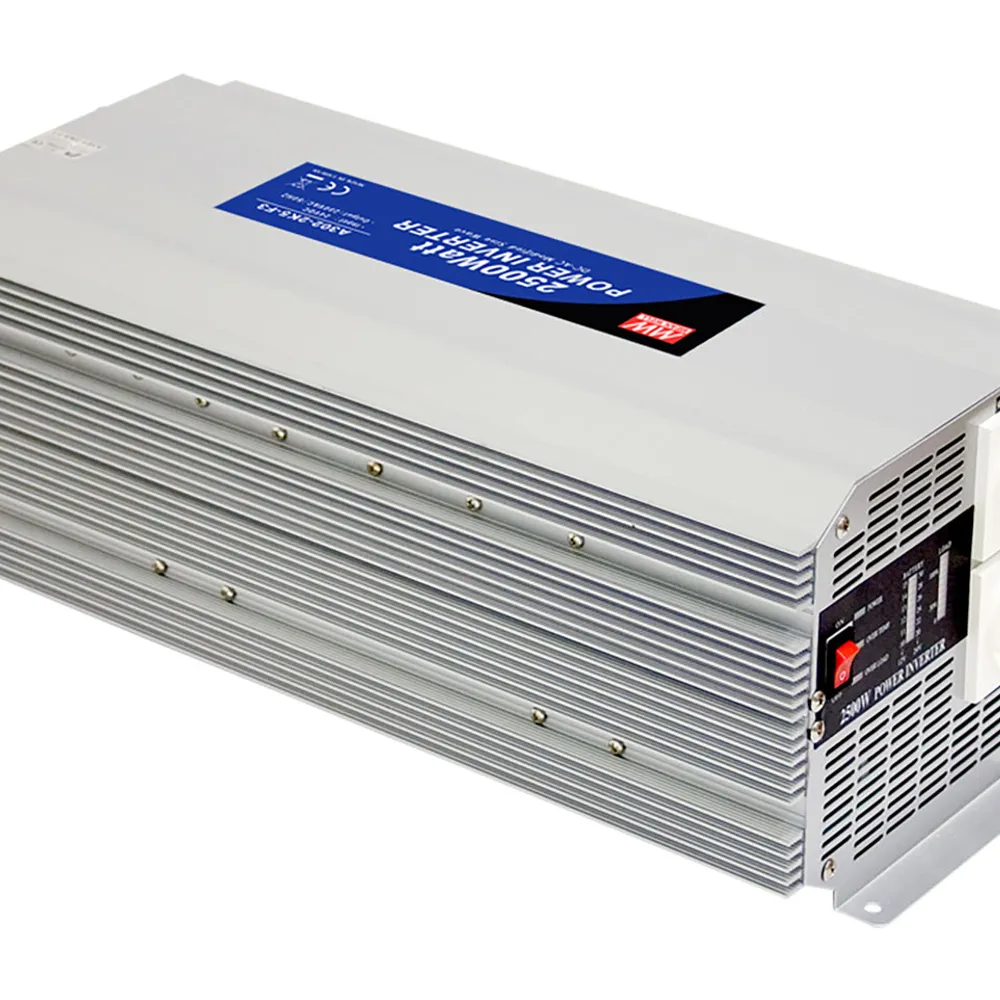

Modified Sine Wave DC-AC Power Inverter 2500W 110VAC Output 2xUSA Receptacle 12VDC 250A Ring Terminal Input

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$606.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$606.950	-	-
5+	$569.950	37.00	6.1%
25+	$540.950	66.00	10.87%

12V or 24V DC input (depending on the model)
Power ON-OFF switch
Input voltage range: -15% to +25%
Output voltage regulation: ±10%
Protections: Input reverse polarity, battery low alarm, batterl low shutdown, over voltage, over load, over temperature, output short
Output waveform: Modified sine wave
Cooling fan ON-OFF control
ON/OFF remote control (optional/order no: RC-2500)
Approvals: E13, EAC, CE, UKCA
1 year warranty

Product Identification

Product Type:Modified Sine Wave DC-AC Power Inverter

Manufacturer Series:A301-2K5

Agency Approvals:CE, EN, EAC, UKCA, E13

Mounting:Chassis

Color:Silver

Length:16.93 in.

Height:6.26 in.

Width:8.27 in.

Minimum Operating Temperature:0°C

Maximum Operating Temperature:30°C

Input Frequency:N/A

Input Voltage:12 VDC

Input Voltage Range:10 VDC to 16.5 VDC

Maximum Input Current:250 A

Number of Outputs:2

Output Connector Type:NEMA 5-15R x2

Output Voltage:110 VAC

Output Current:N/A

AC Power Cord:NOT INCLUDED

Efficiency:82%

Power Rating:2500 W
