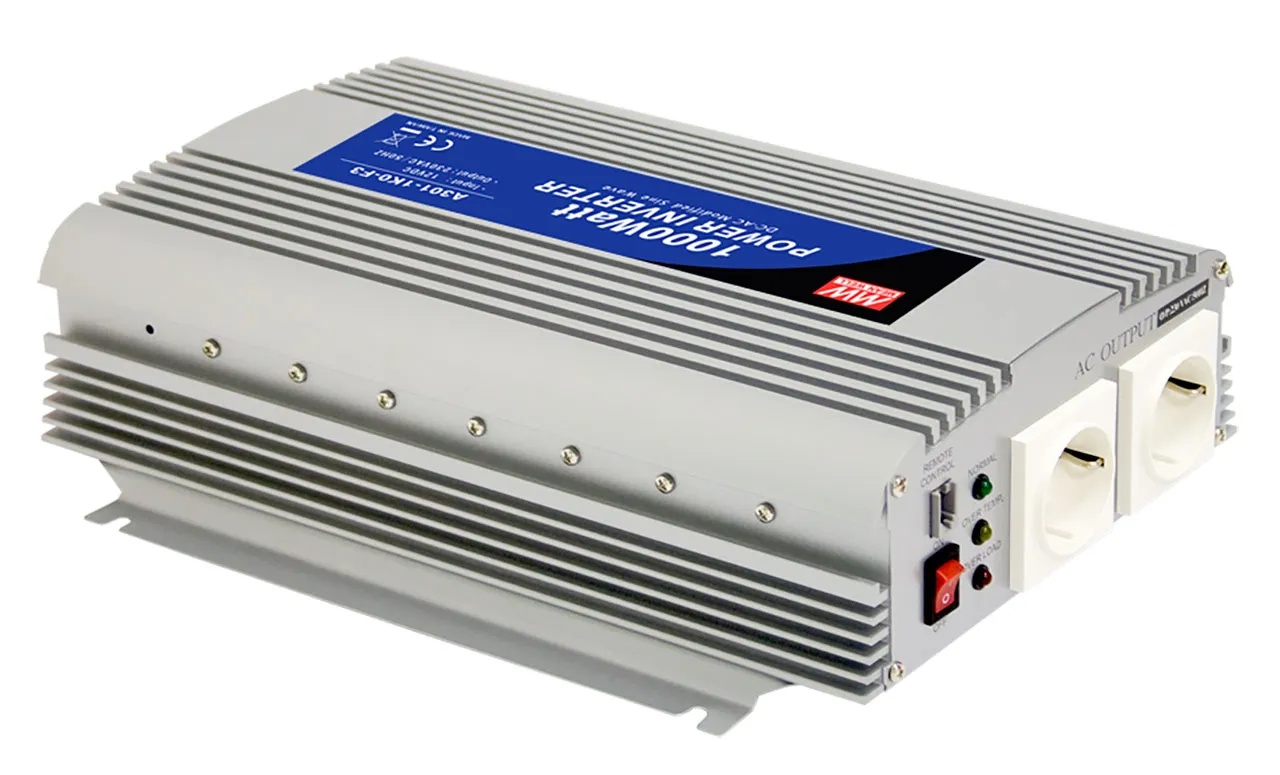

Modified Sine Wave DC-AC Power Inverter 1KW 230VAC Output 2xEURO Receptacle 24VDC 55A Ring Terminal Input

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$222.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$222.950	-	-
5+	$208.950	14.00	6.28%
25+	$198.950	24.00	10.76%

12V or 24V DC input (depending on the model)
Power ON-OFF switch
Input voltage range: -15% to +25%
Output voltage regulation: ±10%
Protections: Input reverse polarity, battery low alarm, batterl low shutdown, over voltage, over load, over temperature, output short
Output waveform: Modified sine wave
Cooling fan ON-OFF control
ON/OFF remote control (optional/order no: RC-1700)
Approvals: E13, EAC, CE, UKCA
1 year warranty

Product Identification

Product Type:Modified Sine Wave DC-AC Power Inverter

Manufacturer Series:A302-1K0

Agency Approvals:CE, EN, EAC, UKCA, E13

Mounting:Chassis

Color:Silver

Length:12.20 in.

Height:3.35 in.

Width:8.27 in.

Minimum Operating Temperature:0°C

Maximum Operating Temperature:30°C

Input Frequency:N/A

Input Voltage:24 VDC

Input Voltage Range:21 VDC to 30 VDC

Maximum Input Current:55 A

Number of Outputs:2

Output Connector Type:Euro Receptacle x2

Output Voltage:230 VAC

Output Current:N/A

AC Power Cord:NOT INCLUDED

Efficiency:85%

Power Rating:1000 W
