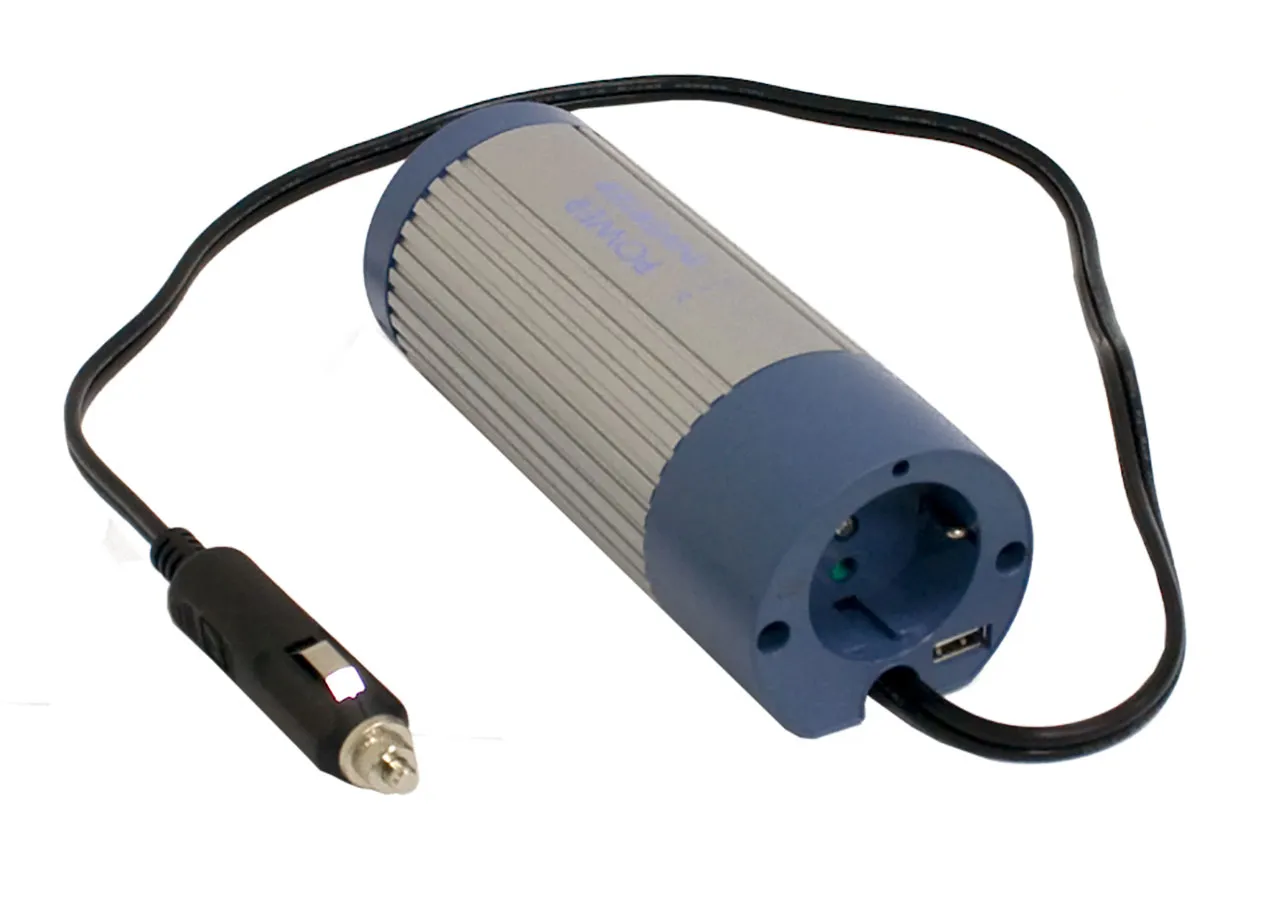

Modified Sine Wave DC-AC Power Inverter 100W 230VAC Output Euro Receptacle and USB 24VDC 10A with Cig Plug Input

Jameco Part #:

Manufacturer #:

Non Cancelable

Non Returnable

Product Price:

$40.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$40.950	-	-
5+	$38.450	2.50	6.11%
25+	$36.450	4.50	10.99%

Built-in USB interface
Cooling by free air convection (without fan)
Slim size can fit in with the cup holder on vehicles
High efficiency
12V or 24V DC input (depending on the model)
Input voltage range: -15% to +25%
Output voltage regulation: ±10%
Protections: Input reverse polarity, battery low shutdown, over voltage, over load, over temperature, output short
Output waveform: Modified sine wave
Topology: Microprocessor
Approvals: E13, EAC, CE, UKCA
1 year warranty

Product Identification

Product Type:Modified Sine Wave DC-AC Power Inverter

Manufacturer Series:A302-100

Agency Approvals:CE, EN, EAC, UKCA, E13

Mounting:Chassis

Color:Silver

Width:2.56 in.

Height:2.56 in.

Length:6.69 in.

Minimum Operating Temperature:0°C

Maximum Operating Temperature:30°C

Input Frequency:N/A

Input Voltage:24 VDC

Input Voltage Range:21 VDC to 30 VDC

Maximum Input Current:10 A

Number of Outputs:2

Output Connector Type:Euro Receptacle, USB

Output Voltage:230 VAC

Output Current:N/A

AC Power Cord:NOT INCLUDED

Efficiency:90%

Power Rating:100 W
