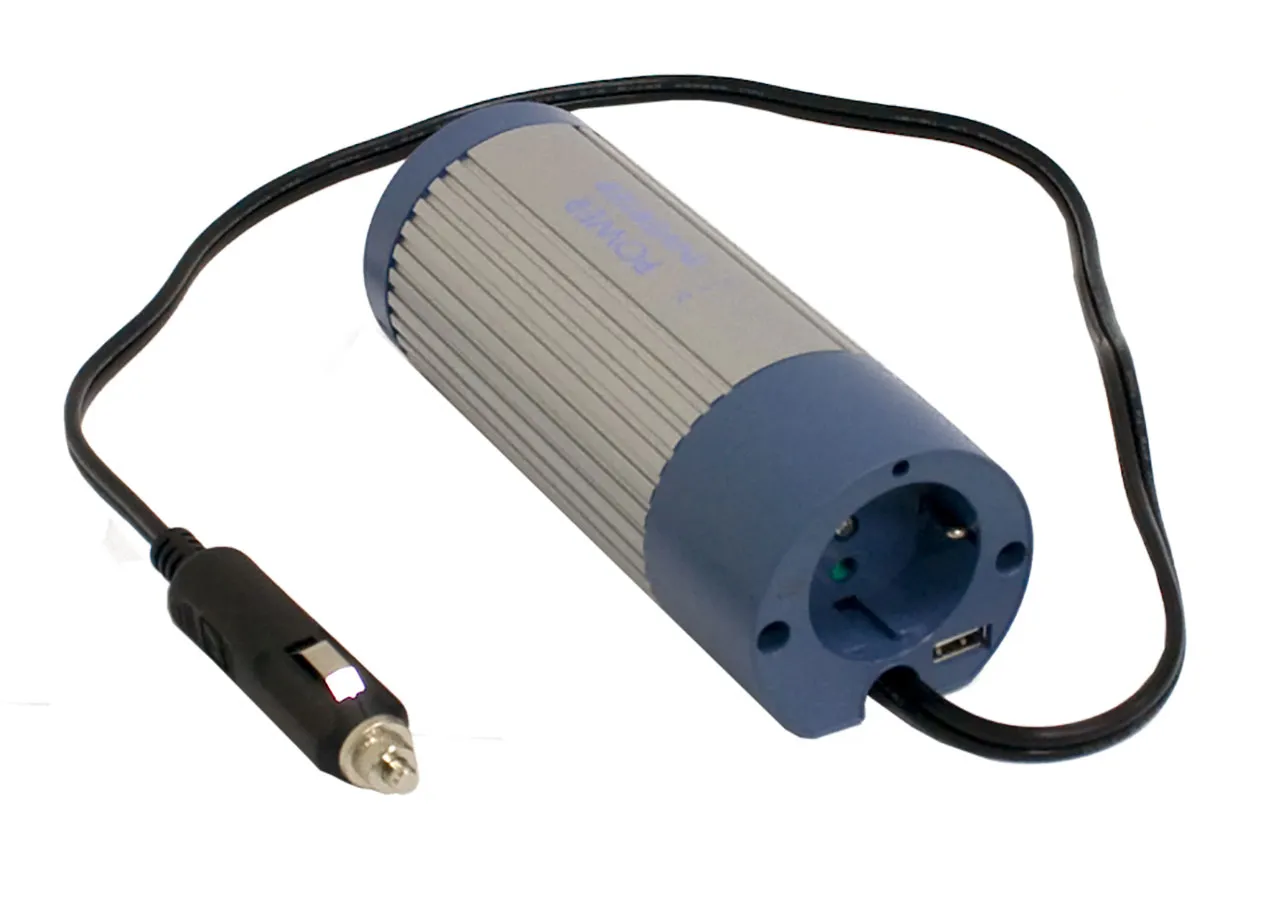

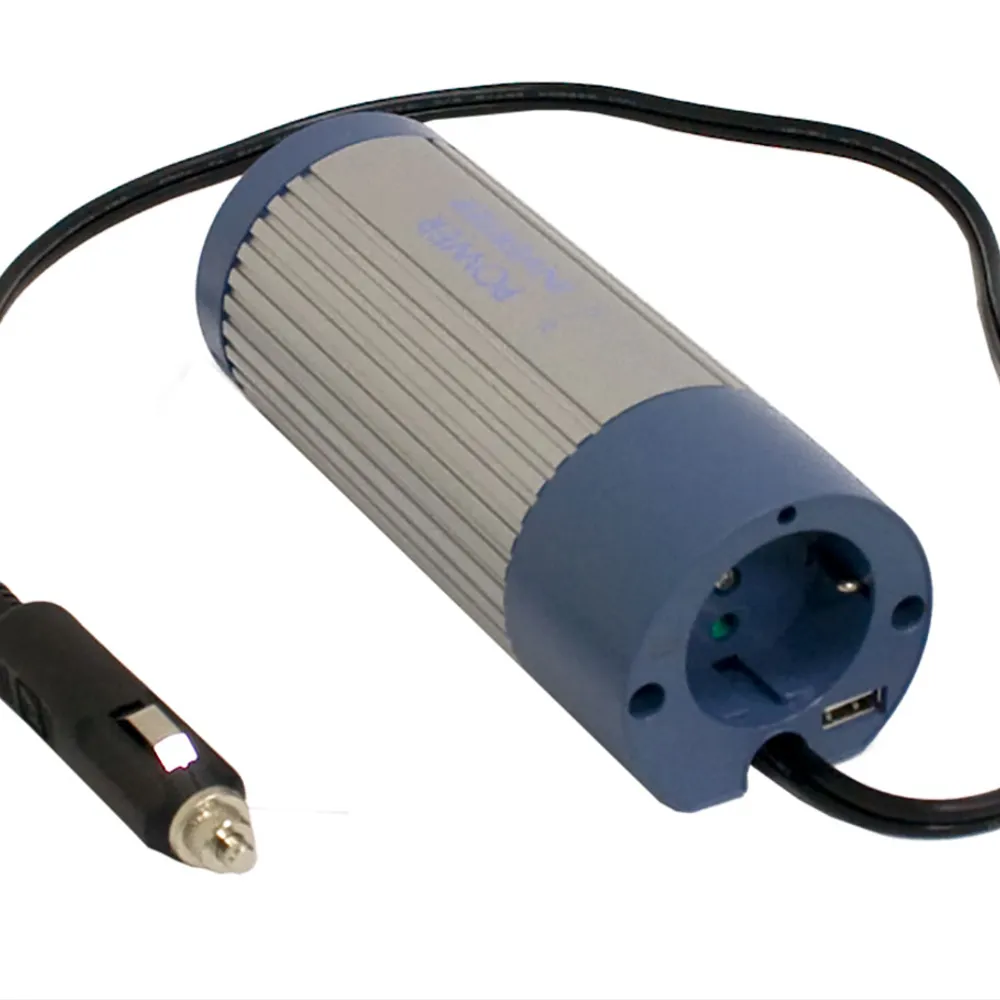

Modified Sine Wave DC-AC Power Inverter 100W 230VAC Output Euro Receptacle and USB 12VDC 15A with Cig Plug Input

Features

  • Built-in USB interface
  • Cooling by free air convection (without fan)
  • Slim size can fit in with the cup holder on vehicles
  • High efficiency
  • 12V or 24V DC input (depending on the model)
  • Input voltage range: -15% to +25%
  • Output voltage regulation: ±10%
  • Protections: Input reverse polarity, battery low shutdown, over voltage, over load, over temperature, output short
  • Output waveform: Modified sine wave
  • Topology: Microprocessor
  • Approvals: E13, EAC, CE, UKCA
  • 1 year warranty

Product Identification

Manufacturer Series:A301-100
Product Type:Modified Sine Wave DC-AC Power Inverter

Compliance

Agency Approvals:CE, EN, EAC, UKCA, E13

Dimensions & Appearance

Mounting:Cup Holder
Color:Silver
Width:2.56 in.
Height:2.56 in.
Length:6.69 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:30°C

Input

Input Frequency:N/A
Input Voltage:12 VDC
Input Voltage Range:10 VDC to 16.5 VDC
Maximum Input Current:15 A

Output

Number of Outputs:1
Output Connector Type:Euro Receptacle, USB
Output Voltage:230 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:90%
Power Rating:100 W
,
