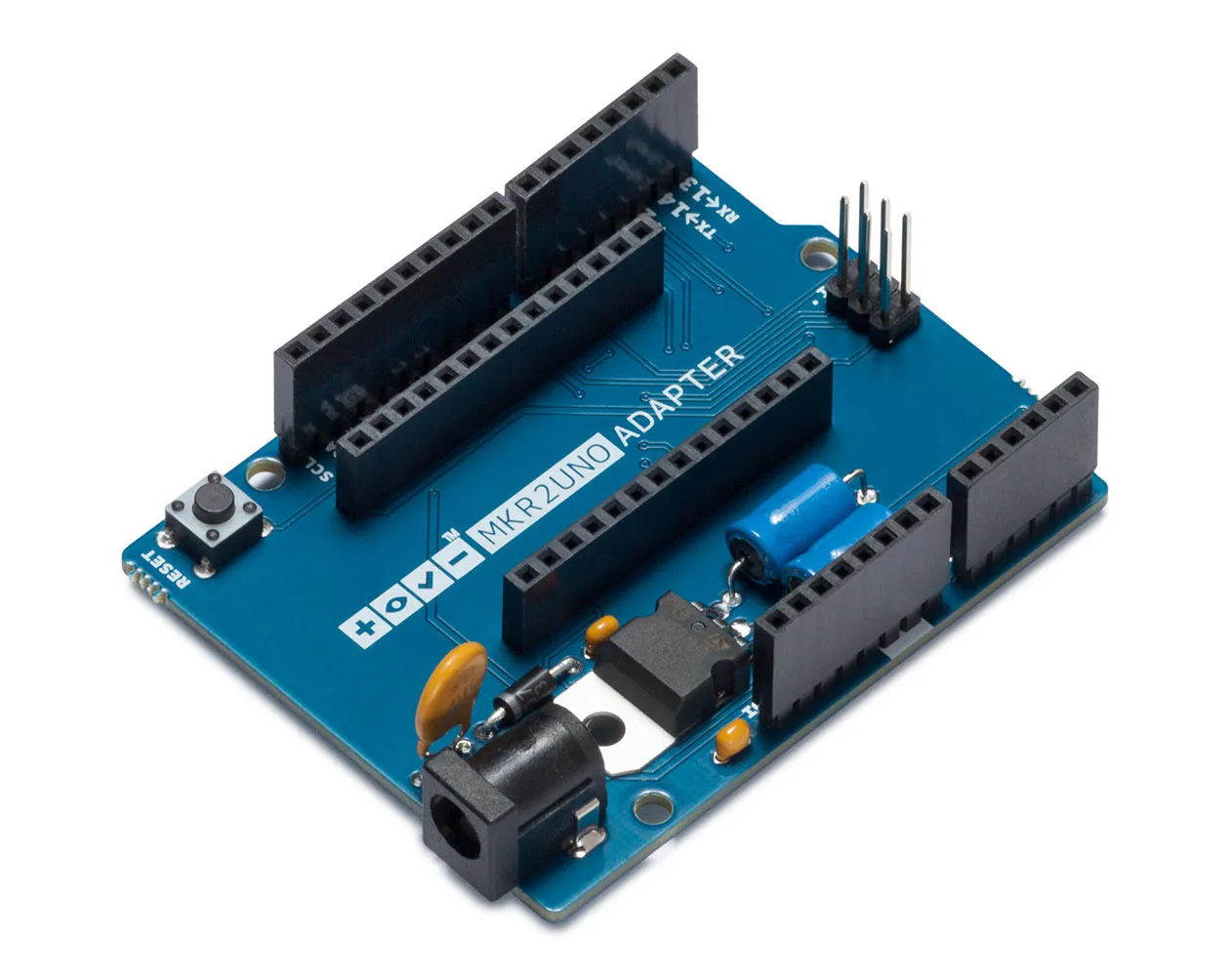

MKR 2 Uno Adapter Board

Simply mount your MKR1000 to this new adapter and plug in any of your UNO shields! The MKR2UNO Adapter allows you to turn your Arduino UNO form factor based project into a MKR based one without too much effort! You can so upgrade your project with a powerful board with integrated LiPo battery charger.

Specifications

• Operating Voltage: 3.3V
• Input Voltage (recommended): 7-12V
• Input Voltage (limit): 6-16V
• Analog Input Pins: 6
• Analog Output Pins: 1
• Digital I/O Pins: 14
• DC Current for 3.3V Pin: 700 mA
• DC Current for 5V Pin: 700 mA
• Length: 68.6 mm
• Width: 53.4 mm
• Weight: 24 g

Resources & Downloads

• Eagle files in .ZIP
