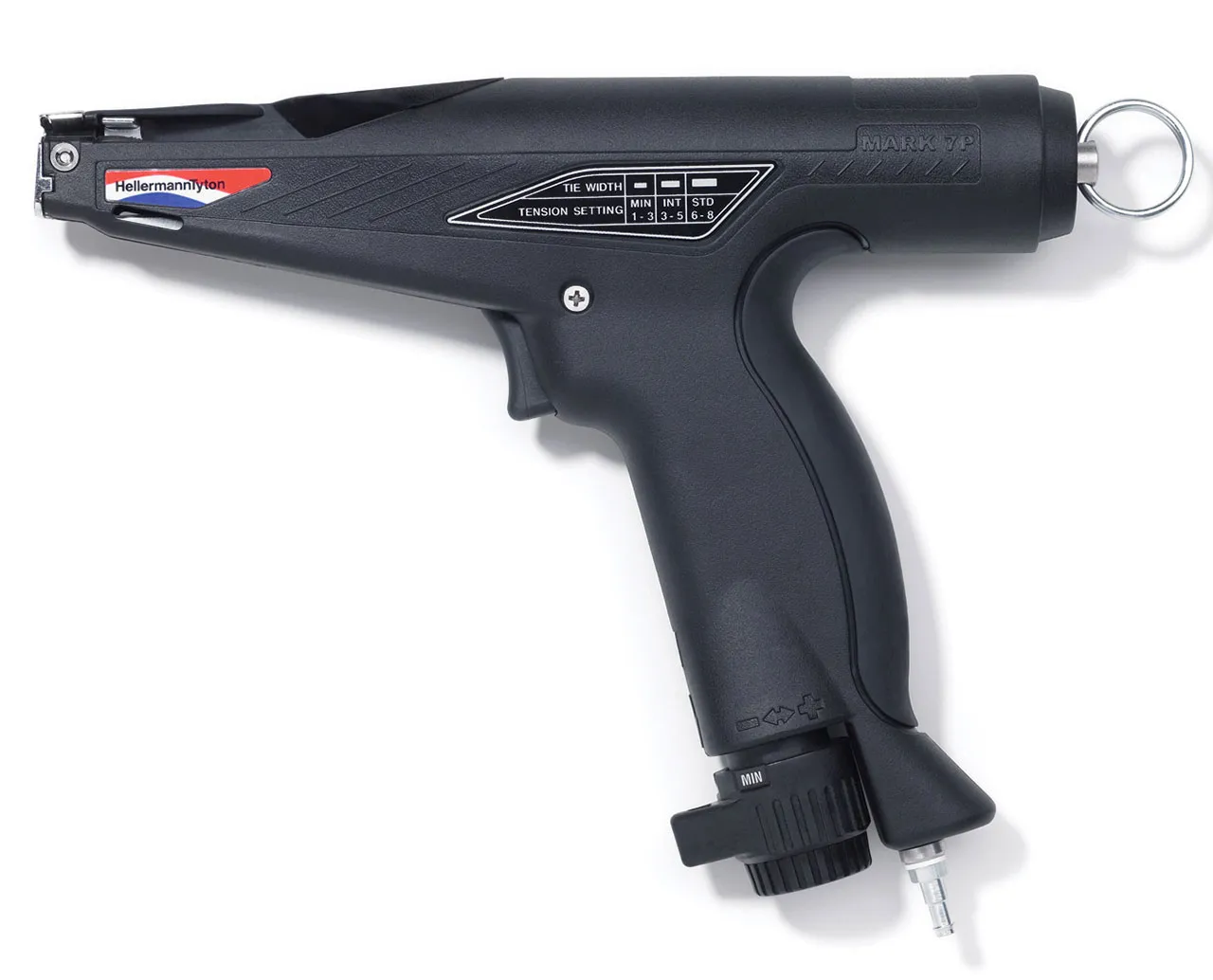

MK7P Pneumatic Tool, Plastic Housing, 1 per Package

Features

• Improved compressed air supply for faster tensioning piston movement.
• Glass fiber-reinforced plastic construction makes tool lightweight yet tough.
• Automatic ejection of cut-off cable tie end speeds production.
• Three-level preset control to set tool tension.
• Optional safety cap prevents tension setting from being changed by accident (important when bundling sensitive materials and maintaining process reliability).
• Product Type: Pneumatic Tools

Technical Specifications

• Material: Polyamide 6.6, glass fiber reinforced (PA66GF30%)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Air Attachment: lower air connection
• Air Pressure Bar (max.): 6 Bar
• Air Pressure Bar (min.): 5.5 Bar
• Air Pressure Bar Range (calculated): 5.5 - 6 Bar
• Air Pressure Psi (max.): 90 Psi
• Air Supply: non lubricated; oiled
• Cable Tie Thickness Max. (imperial): 0.06"
• Cable Tie Thickness max. (metric): 1.5 mm
• Cable Tie Width Max. (Imperial): 0.18"
• Cable Tie Width Max. (Metric): 4.8 mm
• Focused Markets and Industries: Aerospace Industry; Automotive Industry; Defense Industry; Electrical Installation; Electronics Industry; Industrial Automation; OEM Industry; Panel Building; Rail Transportation Sector; Shipbuilding; Solar Energy Sector; Wind Energy Sector
• For Cable Tie Width (Imperial): 0.10 - 0.19"
• For Cable Tie Width (metric): 2.5 - 4.8 mm
• For Cable Ties: T18 - T50, CTT20 - CTT60
• Height H (Metric): 170 mm
• Length L (Metric): 220 mm
• Power Supply: Dry or lubricated air
• Tension setting: Adjustable
• Tool property: Automatic cut off
• Width W (Metric): 40 mm
• CE Certified: No
• CSA Certified: No
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306210788

Overview

The Mark 7 Pneumatic (MK7P) industrial-grade cable tie application tool is built to perform in demanding production and manufacturing environments. Heavy duty precision parts ensure repeatability in the tensioning process. The MK7P is ergonomically designed for operator comfort, reducing hand, arm and wrist fatigue. It consistently maintains the correct tension and provides a flush, safe cut-off with no sharp edges.
