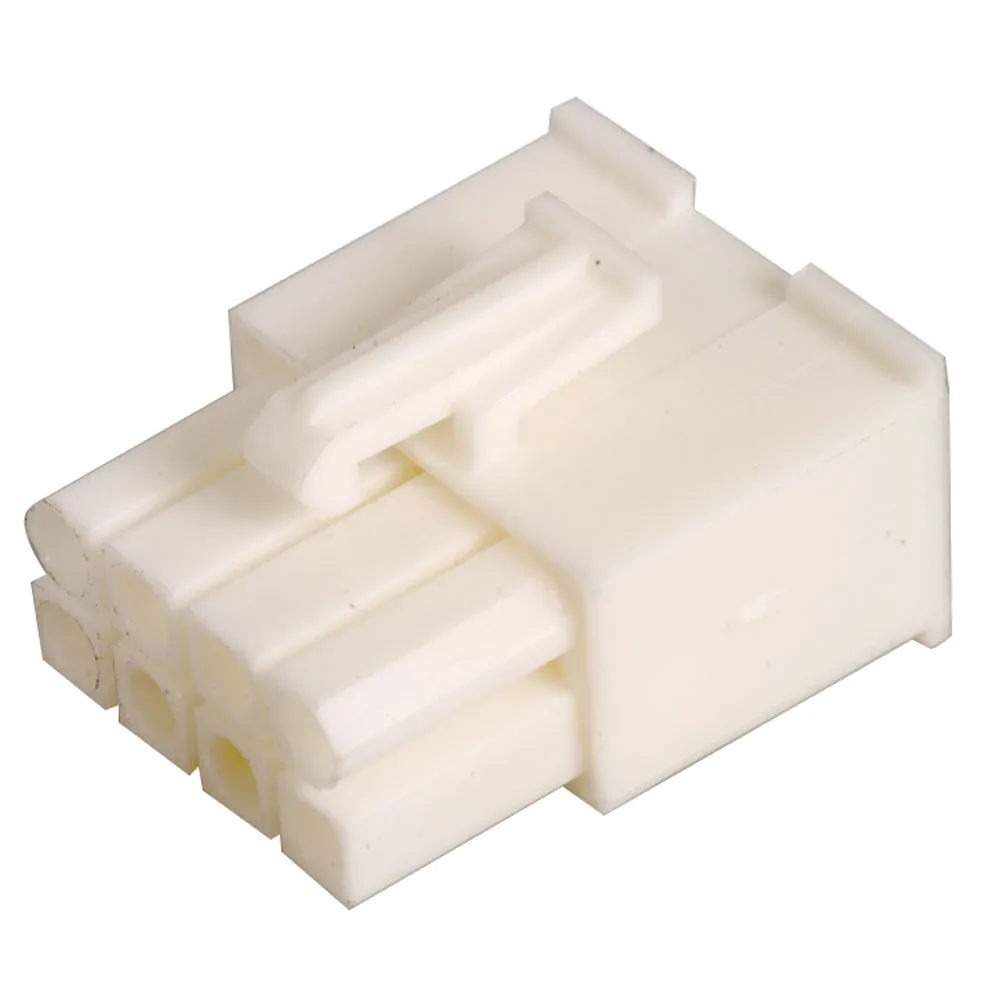

Mini-Universal MATE-N-LOK 8-Position 2-Row Plug Housing for Male or Female Contact 4.2mm Free Hanging Crimp

Specifications

  • Series: Mini-Universal MATE-N-LOK
  • Connector Type: Plug
  • Contact Type: Male or Female
  • Number of Positions: 8 Position
  • Pitch: 0.165" (4.2 mm)
  • Number of Rows: 2 Row
  • Row Spacing: n/a
  • Mounting Style: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Latching Type: Latch Lock
  • Housing Color: White
  • NOTE: Contacts not included

Product Identification

Additional Feature:Contacts Not Included
Product Type:Housing
Manufacturer Series:Mini-Universal MATE-N-LOK

Dimensions & Appearance

Body Orientation:Straight
Mounting:Free Hanging (In-Line)
Body/Shell Style:Plug

Features

Filter Feature:No
Housing Material:Nylon 6/6
Number of Rows:2
UL Flammability Code:UL 94 V-0
Fastening Method:Latch Lock
Maximum Contact Resistance:N/A
Number of Contacts:8
Contact Material:N/A
Housing Color:White
Contact Plating:N/A
Gender:Male or Female
Termination:Crimp
Voltage Rating:600 V
Current Rating:N/A
,
