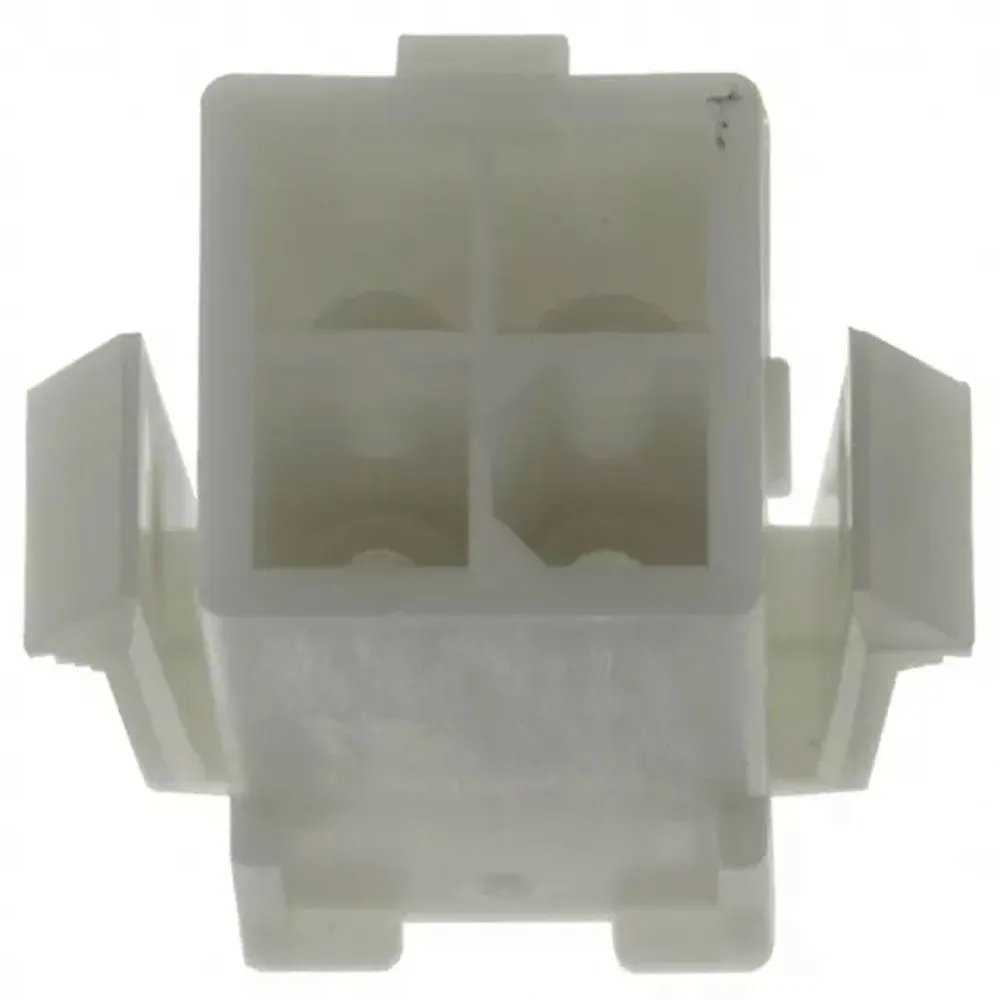

Mini-Universal MATE-N-LOK 4-Position Receptacle Housing for Male or Female Contacts 0.25" (6.35mm) Panel Mount Crimp

Specifications

  • Series: Mini-Universal MATE-N-LOK
  • Connector Type: Receptacle
  • Contact Type: For Male of Female Contacts
  • Pitch - Mating: 0.25" (6.35 mm)
  • Number of Positions: 4
  • Number of Rows: 2
  • Row Spacing: 0.25" (6.35 mm)
  • Number of Positions Loaded: None
  • Mounting Type: Panel Mount, Snap-In
  • Termination: Crimp
  • Fastening Type: Locking Ramp
  • Insulation Color: Natural
  • Note: Contacts Not Included
  • Base Number: 172159

Product Identification

Product Type:Receptacle Housing
Manufacturer Series:MINI-MATE-N-LOK, PANEL MOUNTABLE
Family:172159

Dimensions & Appearance

Depth:9.8 mm
Length:11.8 mm
Mounting:Panel Mount, Snap-In
Body Orientation:Straight
Body/Shell Style:Receptacle

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-20°C

Features

Termination Type:Crimp
Shell Material:Nylon 66
Filter Feature:No
Mixed Contacts:NO
DIN Conformance:No
IEC Conformance:No
MIL Conformance:No
Empty Shell:Yes
Zero Insertion Force:NO
Number of Rows:2
UL Flammability Code:94V-0
Option:GENERAL PURPOSE
Housing Material:Nylon 66
Number of Contacts:4
Contact Finish - Mating:N/A
Mating Information:MULTIPLE MATING PARTS AVAILABLE
Housing Color:Natural
Maximum Contact Resistance:N/A
Contact Gender:Male or Female
Contact Material:N/A
Contact Plating:N/A
Wire Gauge (AWG):N/A
Voltage Rating:600 VAC/VDC
Current Rating:N/A
,
