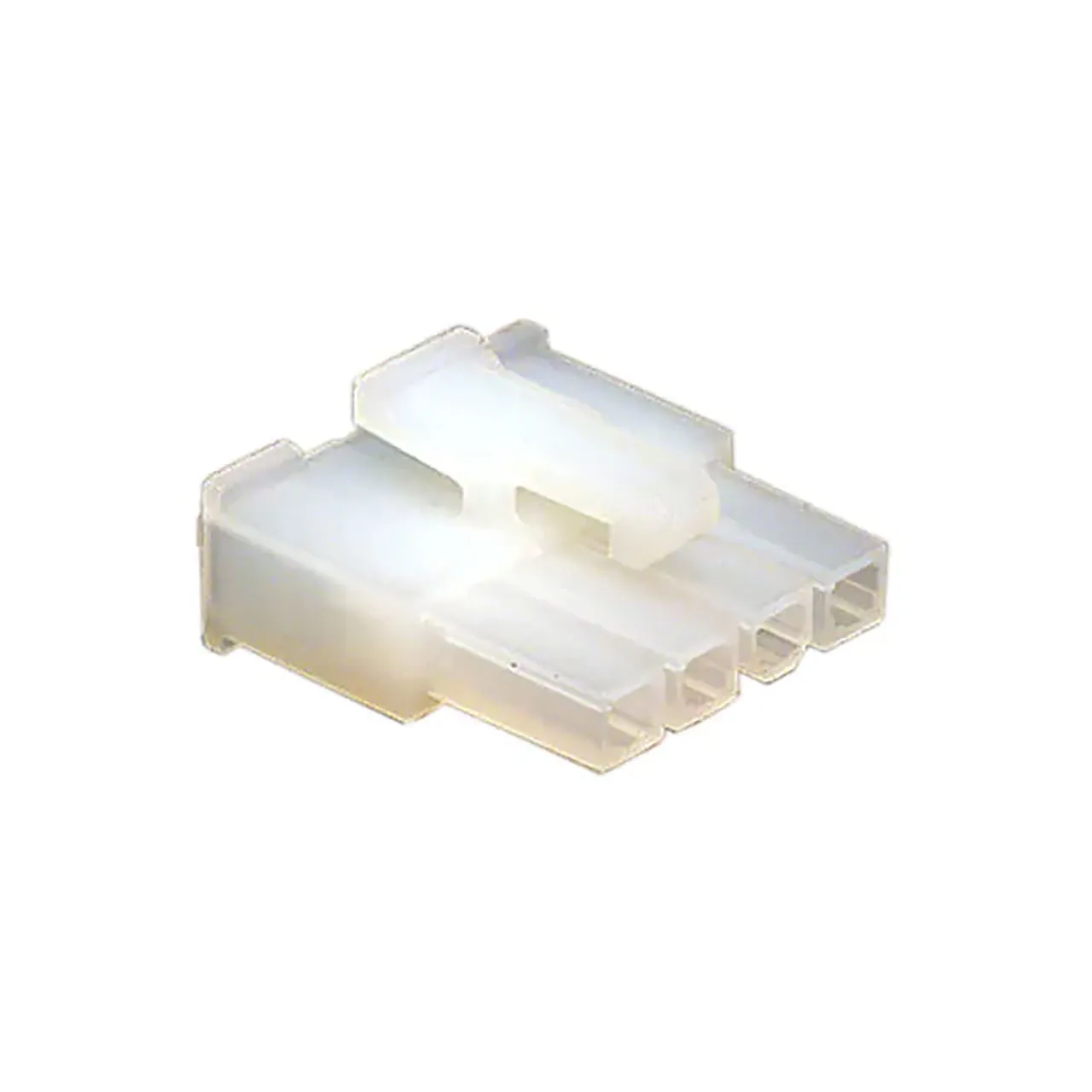

Mini-Fit Jr Rectangular Connector 4 Position Single Row 0.165"

Features

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 4
  • Pitch: 0.165" (4.20mm)
  • Number of Rows: 1
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Fastening Type: Latch Lock
  • Color: Natural
  • Note: Contacts Not Included

Overview

The four-position rectangular connector is a natural housings receptacle with 0.165" (4.20mm) pitch.

Product Identification

Additional Feature:N/A
Product Type:Socket
Manufacturer Series:N/A

Dimensions & Appearance

Mounting:Free Hanging (In-Line)
Body Orientation:Straight
Body/Shell Style:Receptacle

Features

Number of Rows:1
Filter Feature:No
Number of Contacts:4
Fastening Method:Latch Lock
Housing Color:Natural
UL Flammability Code:UL 94 V-2
Maximum Contact Resistance:N/A
Contact Material:N/A
Housing Material:Nylon
Contact Plating:N/A
Gender:Female Socket
Termination:Crimp
Voltage Rating:600 V
Current Rating:13 A
,
