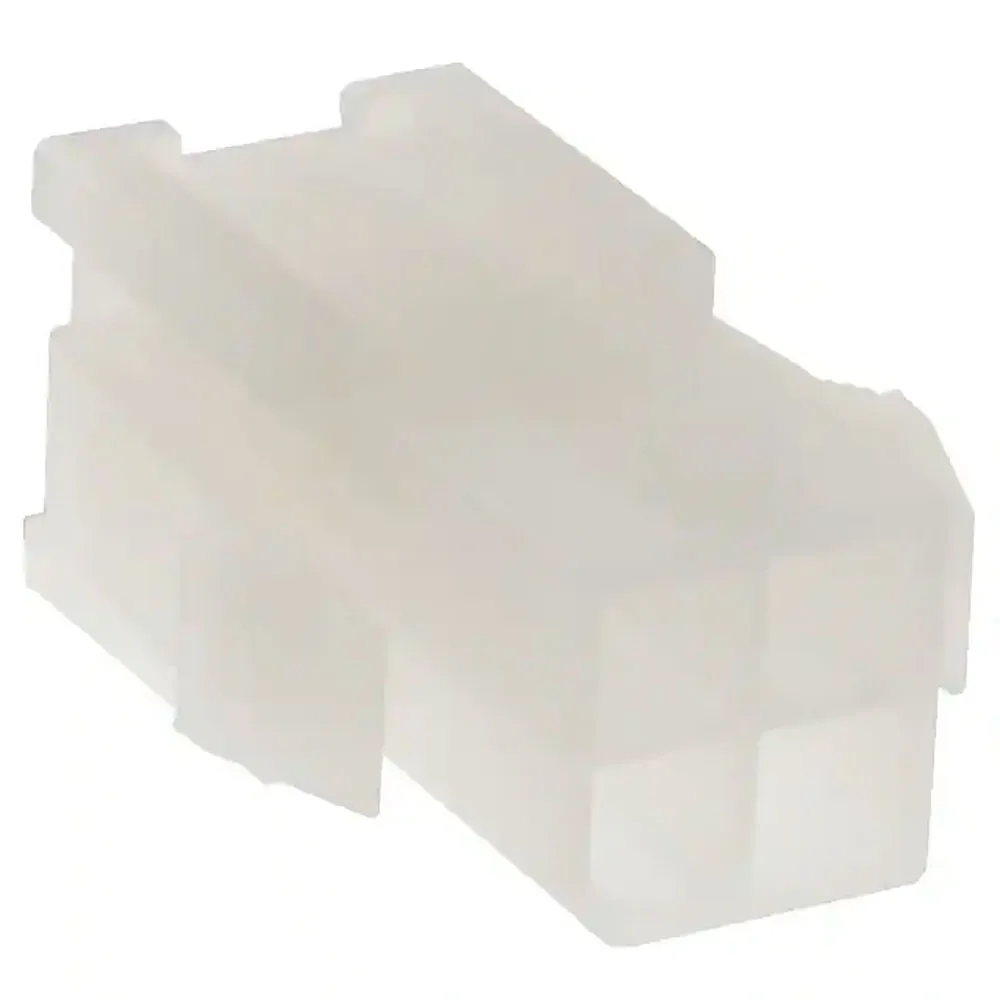

Mini-Fit Jr 5559 4-Position 2-Row Plug Housing for Male Pins Ivory Panel Mount Snap-In

Specifications

  • Series: Mini-Fit Jr 5559
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Number of Positions: 2
  • Number of Rows: 2
  • Pitch: 0.165" (4.2 mm)
  • Number of Positions Loaded: None
  • Mounting Type: Panel Mount, Snap-In
  • Contact Termination: Crimp
  • Fastening Type: Locking Ramp
  • Color: Ivory
  • Note: Contacts Not Included

Product Identification

Additional Feature:Contacts Not Included
Product Type:Housing
Manufacturer Series:Mini-Fit Jr 5559

Dimensions & Appearance

Mounting:Panel Mount, Snap-In
Body Orientation:Straight
Body/Shell Style:Plug

Features

Filter Feature:No
Housing Material:Nylon 6/6
Number of Rows:2
UL Flammability Code:UL 94 V-0
Number of Contacts:4
Housing Color:Natural
Maximum Contact Resistance:N/A
Fastening Method:Locking Ramp
Contact Material:N/A
Contact Plating:N/A
Gender:Male Pin
Termination:Crimp
Voltage Rating:600 V
Current Rating:13 A
,
