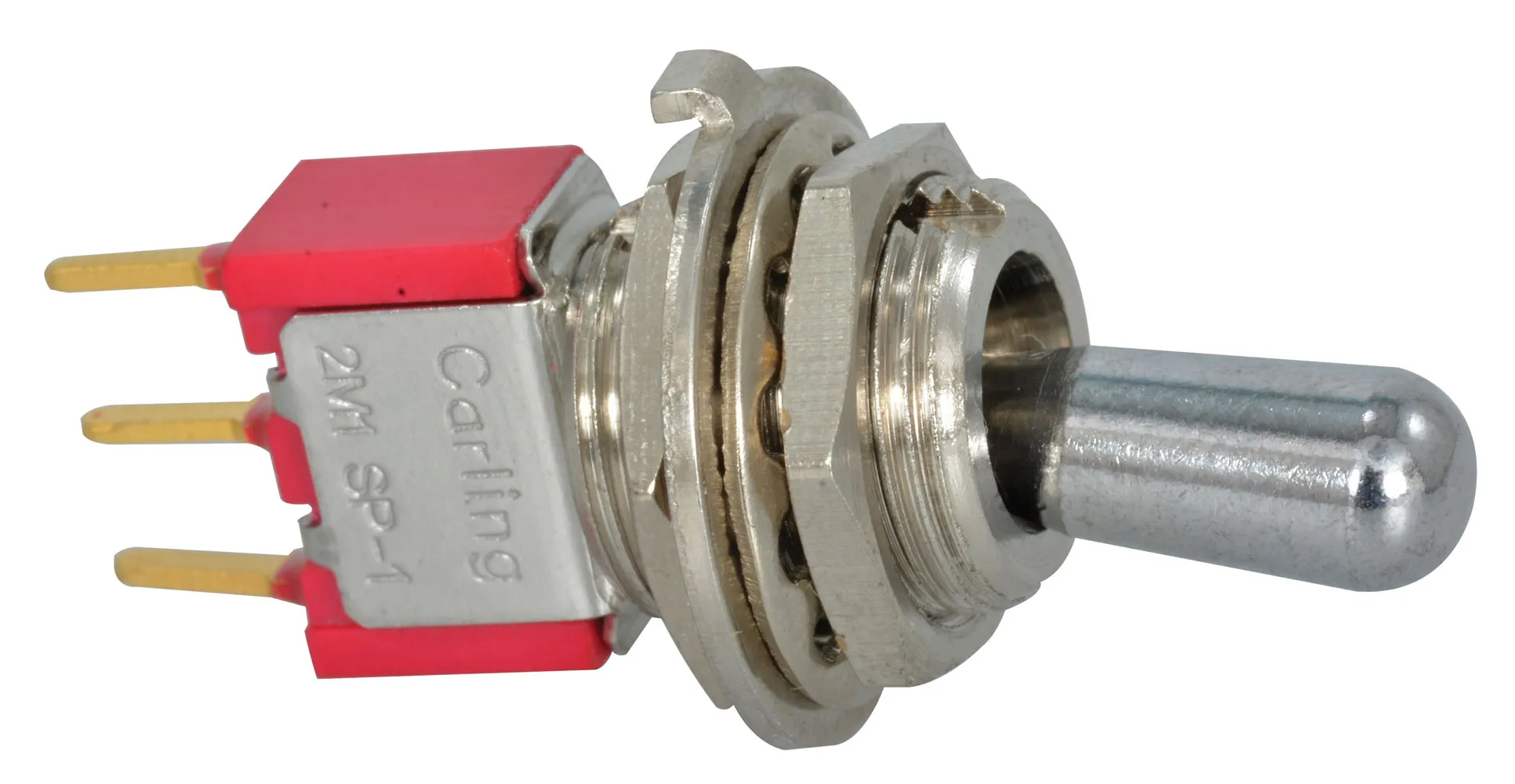

Miniature Toggle Switch SPDT ON-ON 0.4 VA 20VAC/DC Panel Mount

Specifications:

  • Manufacturer: Carlingtech
  • Manufacture#: 2M1-SP1-T7-B0-M2RE
  • Contact Rating: 20 mA @ 20VAC/VDC (max.)
  • Wattage: 0.4VA
  • Dry Circuit Current Rating
  • MIL-STD-1344A
  • Contact Form: SPDT ON - ON
  • Terminal Type: PC pins
  • Lever Type: 0.463" H Large Bat
  • Bushing Diameter: 0.456" (Panel Hole Mount)
  • Height: 0.450"
  • Bushing Thread: 15/32" - 32
  • Dimension: 0.50" L x 0.273" W x 0.389" D

Product Identification

Additional Feature:Keyway

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Red
Body Orientation:Straight
Mounting Style:Panel, Rear
Depth:0.35 in.
Mounting Hole:0.25 in.
Height:0.35 in.
Width:0.26 in.
Length:0.5 in.

Features

Seal Description:Epoxy
Bushing Type:Threaded
Number of Positions:2
Pins:3
Lead Spacing B (inch):0.185
Seal Location:Terminals
Power Rating:0.4 VA
Switch Function:ON-NONE-ON
Contact Rating:0.4VA @ 20VAC/DC
IP Rating:IP67
Color - Actuator/Cap:Chrome
Termination Style:PC Pins
Thread Size:15/32-32
Contact Form:SPDT
Voltage Rating:20 VAC, 20 VDC
Actuator Length:0.461 in.
Actuator Type:Round
,
