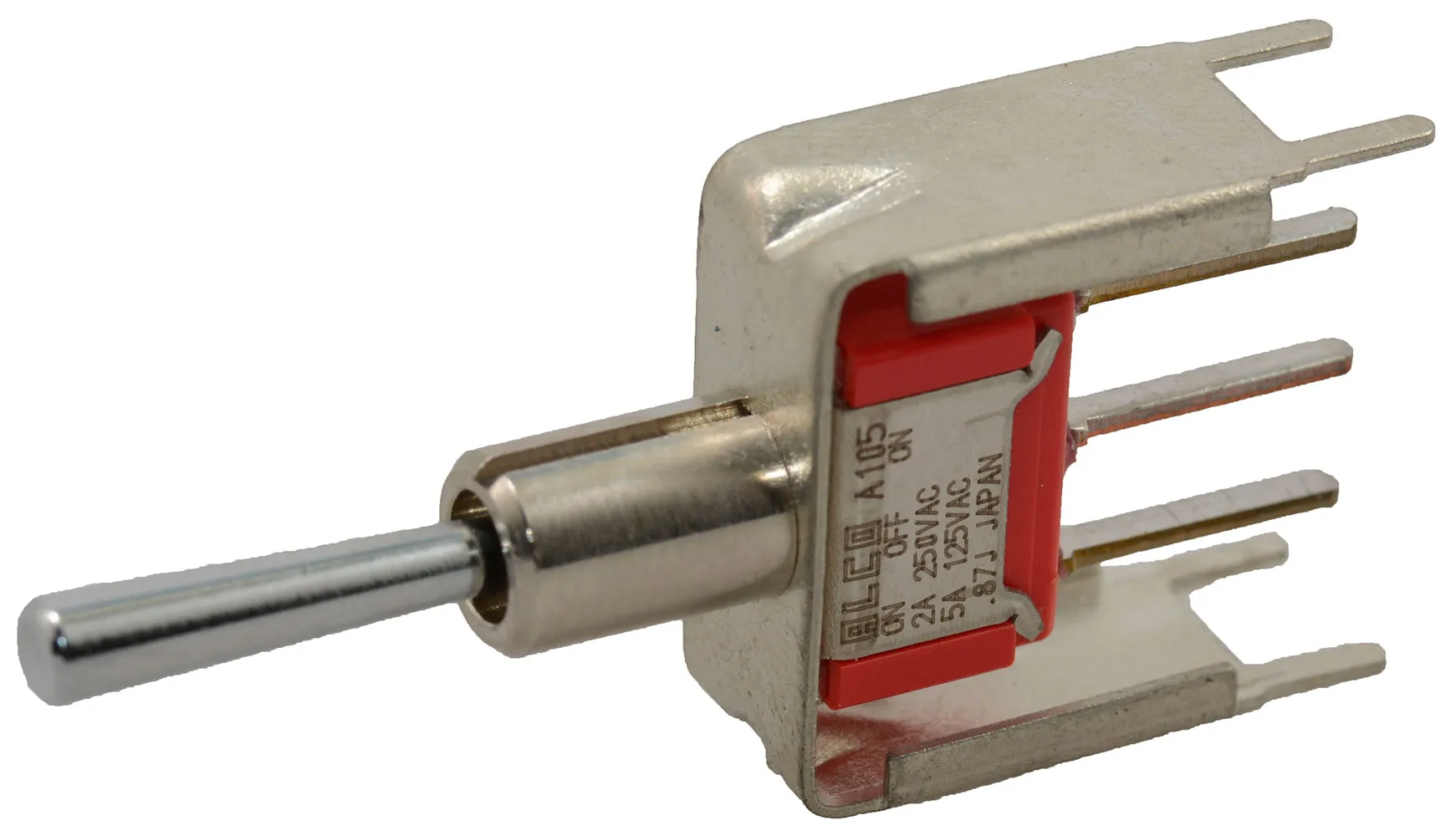

Miniature Toggle Switch SPDT (ON)-OFF-(ON) PC Pin

Specifications

  • Contact form: SPDT
  • Switch function*: (ON)-OFF-(ON); MOM-OFF-MOM
  • Contact rating: 2A @ 250 VAC, 5A @ 125 VAC
  • Terminal type: PC Pins
  • Lever type: Standard
* - Function in parenthesis is momentary operation.

Dimensions & Appearance

Mounting Style:Panel, Rear
Body Orientation:Vertical
Body Color:Red
Mounting Hole:0.5 in.

Features

Number of Positions:2
Pins:3
Bushing Type:Unthreaded
Switch Function:(ON)-OFF-(ON)
Color - Actuator/Cap:Chrome
Termination Style:PC Pins
Contact Form:SPDT
Actuator Type:Round
Contact Rating:5A @ 125VAC, 2A @ 250VAC
Voltage Rating:125 VAC
Current Rating:5 A
,
