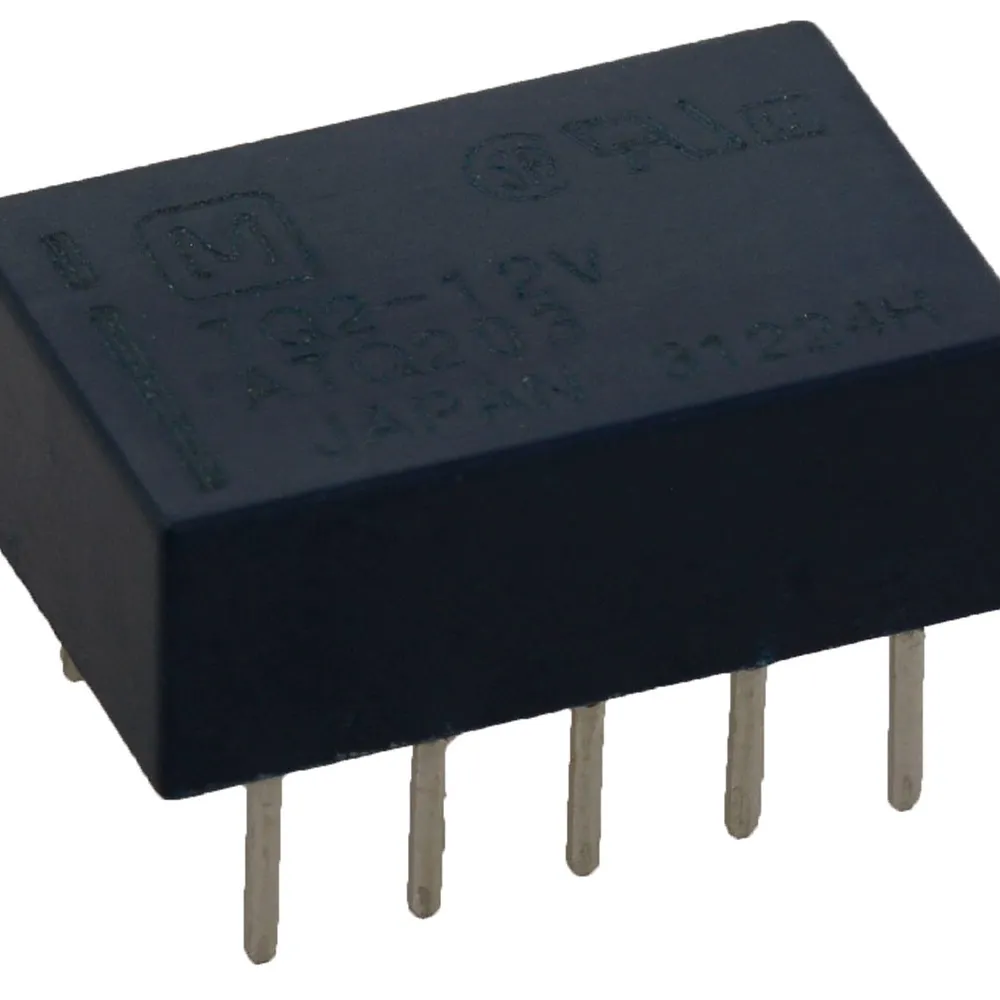

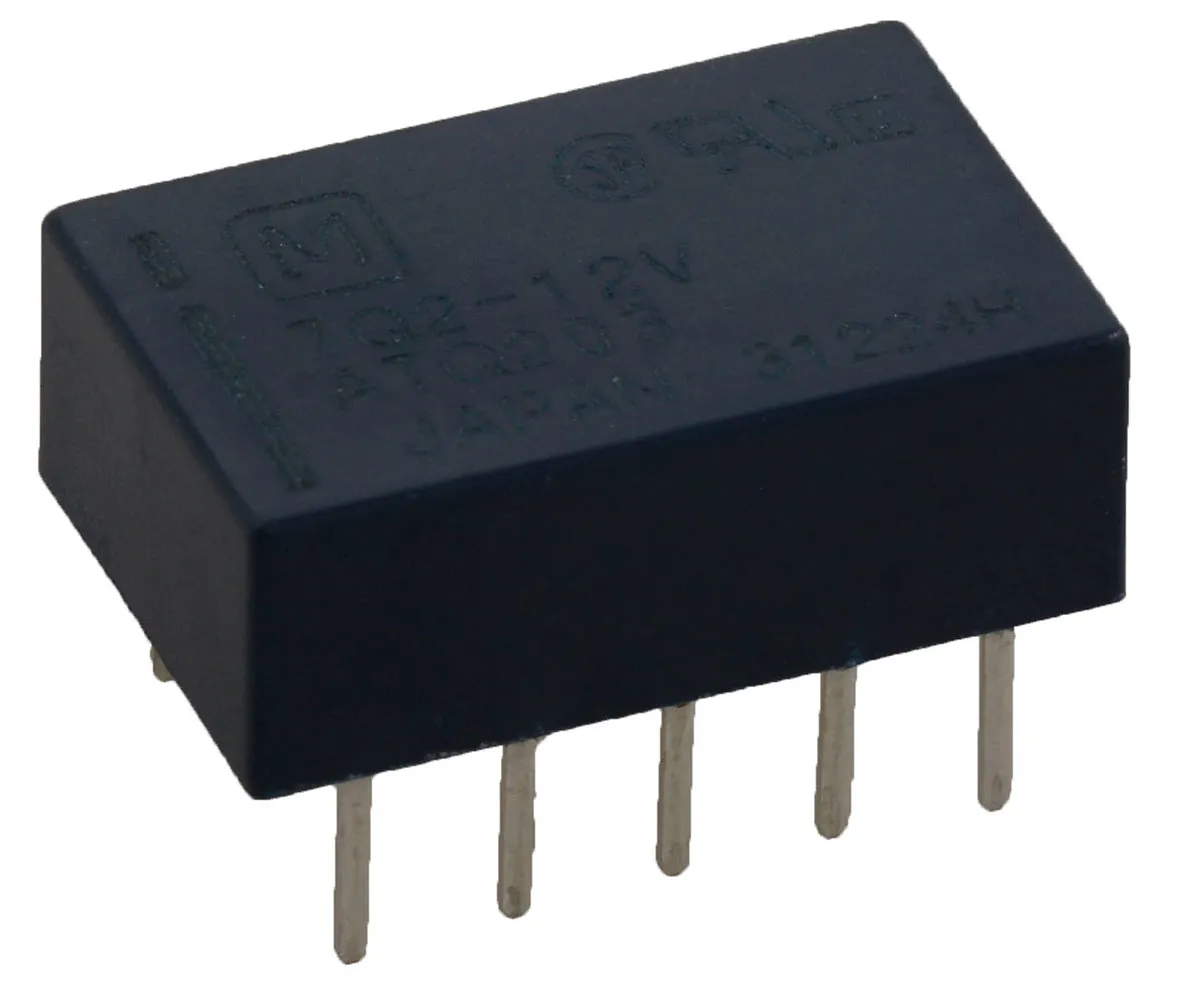

Miniature Relay for Signal Switching DPDT-NO/NC (2 Form C) 1A 12V 1028 Ohm

Specifications

  • Type: Miniature
  • Coil Voltage: 12 VDC
  • Relay Contact Form: 2 Form C (DPDT-NO, NC)
  • Contact Rating: 0.5 A @ 125 VAC, 1 A @ 30 VDC
  • Contact Current Rating: 1 A
  • Maximum Switching Current: 1 A
  • Coil Type: Non-Latching
  • Power Consumption: 140 mW
  • Contact Termination: Solder Pin
  • Coil Resistance: 1028 Ohms
  • Contact Material: Silver (Ag) with Gold Plating
  • Mounting Style: Through Hole

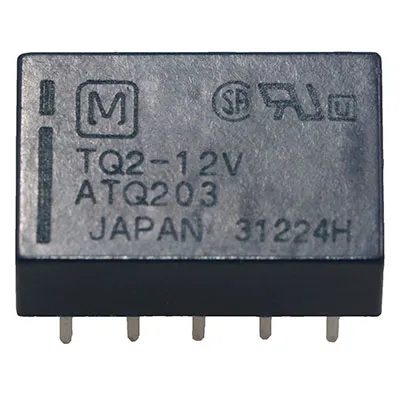

Alternate angle image

Product Identification

Family:TQ

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Length:14 mm
Height:5 mm
Width:7.62 mm

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Features

Minimum Dropout Voltage:1.2 VDC
Coil Voltage:12 VDC
Relay Construction:Non-Latching
Pins:10
Operate Time:3 ms
Maximum Pick-Up Voltage:9 VDC
Contact Current:1 A
Contact Voltage:125 VAC, 30 VDC
Contact Form:DPDT-NO/NC
Coil Resistance:1028 Ohm
,
