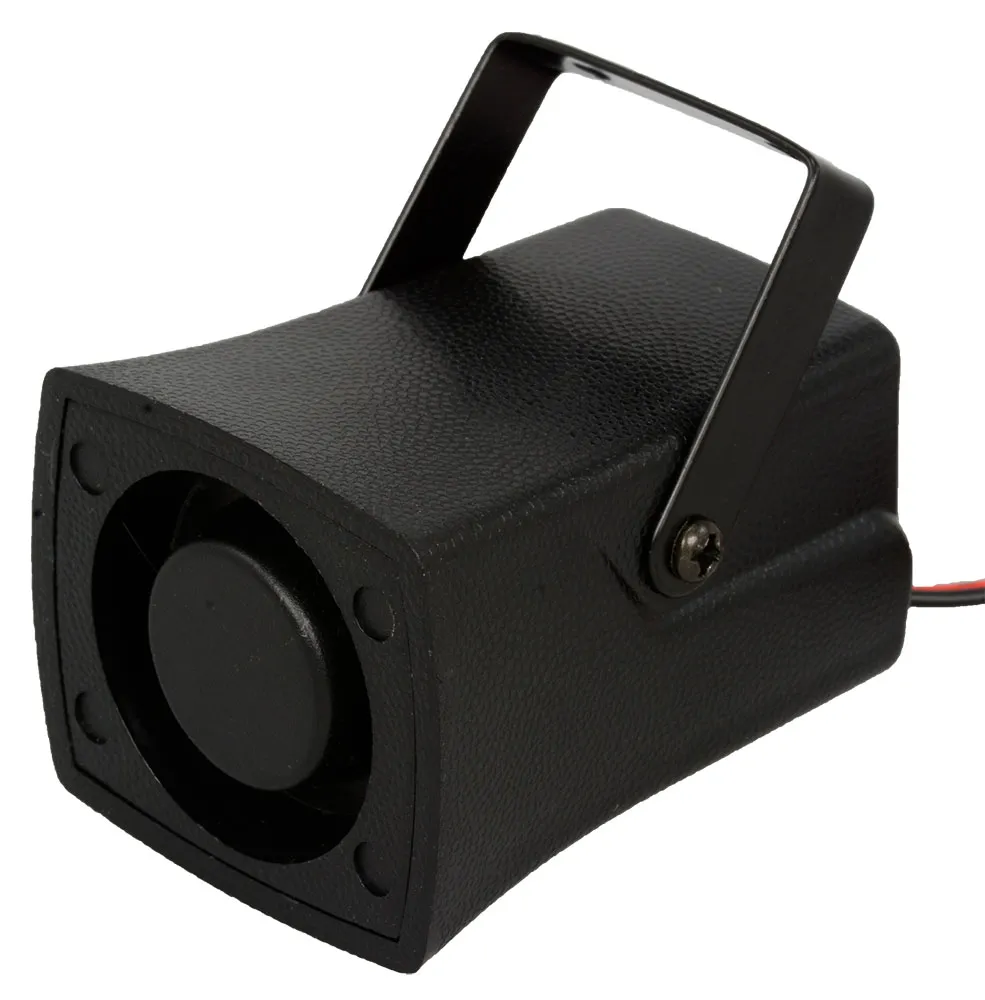

Mini Piezo Siren 6-15V DC 140mA 107dB with 14" Leads

Specifications

  • ABS
  • Wired siren
  • Operating voltage: 6-15Vdc
  • Current consumption (at 12 VDC with siren): 140mA
  • Oscillating frequency: 1.5 to 3.5kHz
  • Sund pressure level (at 1m): 107dBA
  • Dimensions: 1.5" x 1.7" x 2.2"
  • Wire length: 14"
  • weight: 1.65oz
  • Mounting holes: 0.87"

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Mounting:Bracket Mount
Size (H" x Dia."):2.3 x 1.6
Diameter:1.6 in.
Height:2.3 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:107 dBA

Features

Tone Mode:Siren
Technology:Piezo
Voltage Range (Vp-p):6-15
Frequency:3500 Hz
Termination Style:Wire Lead
Frequency Range:3300 Hz to 3700 Hz
Current Rating:200 mA
,
