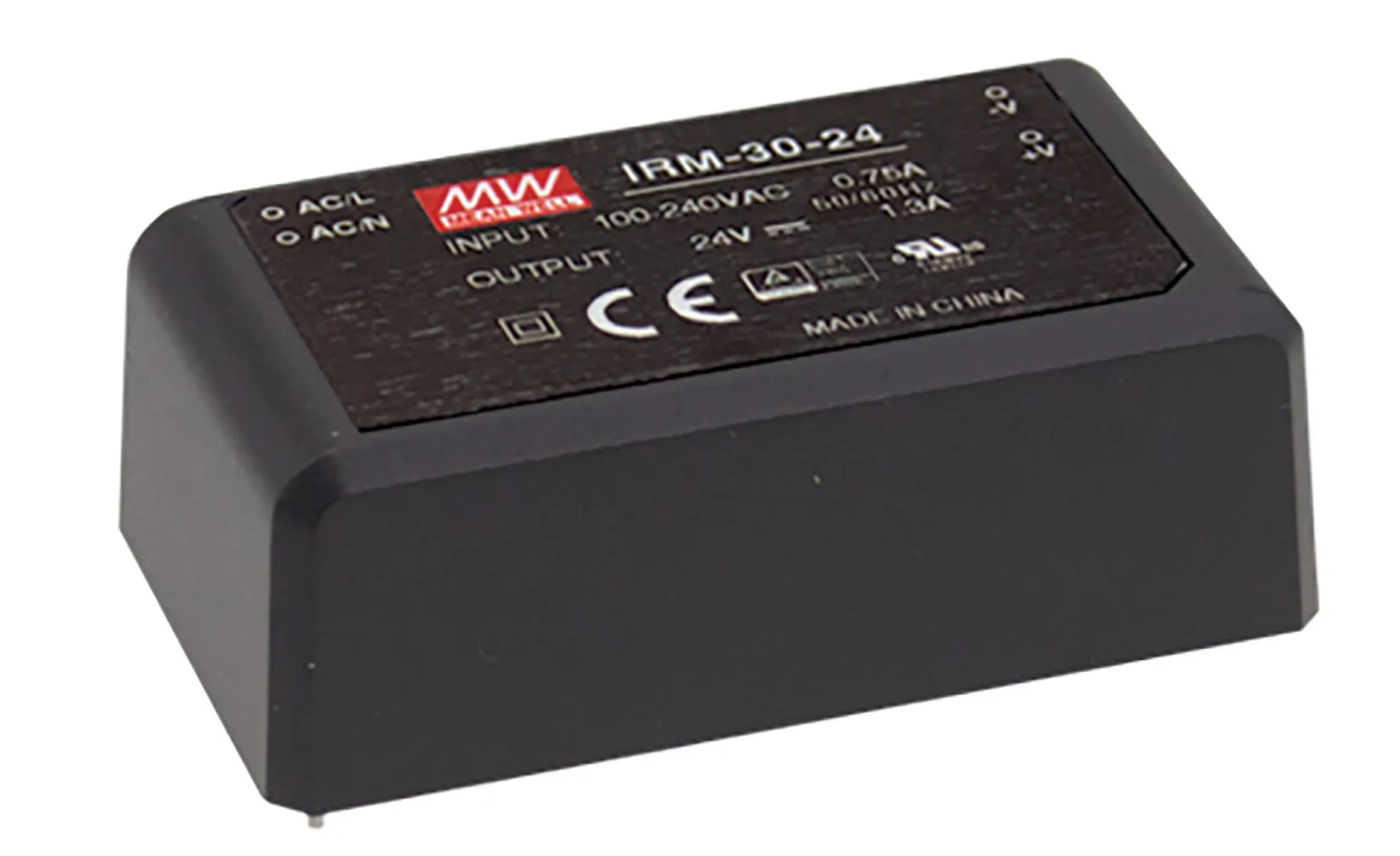

Miniature AC-DC Module type Power Supply 24 Volts 1.3 Amps 31.2 Watts

    24 Volts @ 1.3 Amps

    Specifications

  • Output Power (W): 31.2
  • Ripple & Noise (mV p-p): 240
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.5%
  • Efficiency: 88.5%
  • Size (L x W x H) inches: 2.7 X 1.5 X 0.9
  • Universal AC input / Full range
  • Compact Size
  • Protections: short circuit, over voltage, overload
  • Cooling by free air convection
  • 100% full load burn-in test
  • 3 year warranty

Product Identification

Product Type:Power Module SMPS
Manufacturer Series:IRM-30

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:0.94 in.
Width:1.54 in.
Length:2.74 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 440 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:0.75 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Output Current:1.30 A

Features

Minimum Isolation Voltage:3000V
Efficiency:88.5%
Power Rating:31 W
,
