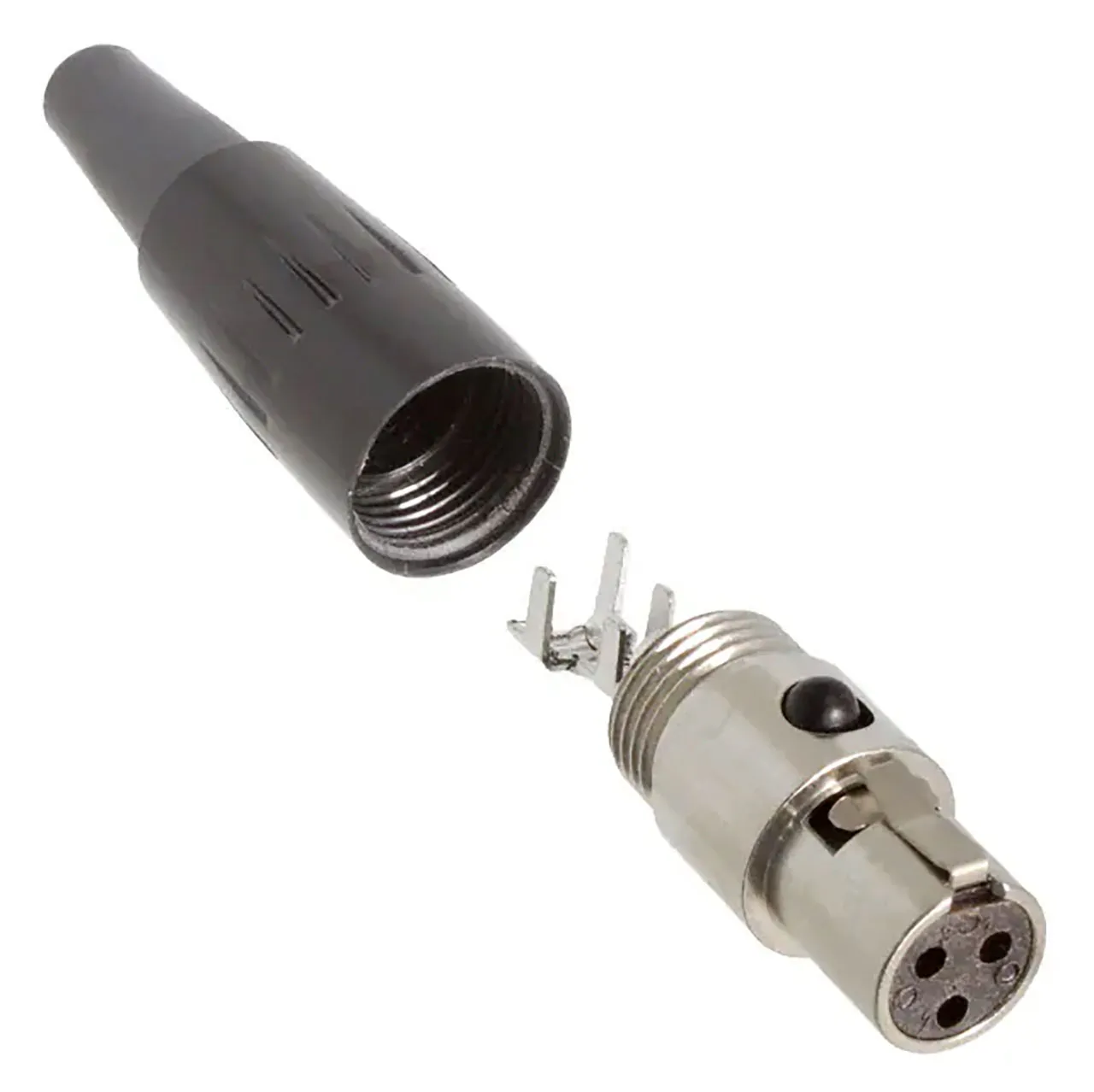

Mini XLR Type 3 Position Circular Plug Connector with Female Sockets Cable Mount

Features

  • Connector Type: Plug, Female Sockets
  • Number of Positions: 3
  • Shell Size - Insert: Mini XLR
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Solder
  • Fastening Type: Latch Lock
  • Orientation: Keyed
  • Primary Material: Metal
  • Shell Material: Copper Alloy
  • Shell Finish: Nickel
  • Contact Finish - Mating: Silver
  • Color: Black, Silver
  • Features: Backshell, Cable Clamp, Strain Relief
  • Shielding: Shielded
  • Current Rating: 5 A
  • Voltage Rating: 125 VAC
  • Cable Opening: 0.065" to 0.155" (1.65 mm to 3.94 mm)
  • Operating Temperature: -55°C to 85°C
  • Backshell Material, Plating: Thermoplastic
  • Contact Material: Copper Alloy
  • Insert Material: Thermoplastic
  • Applications: Audio

Product Identification

Product Type:Mini XLR
Manufacturer Series:ValuePro

Dimensions & Appearance

Body Color: Silver, Black
Body Material:Thermoplastic
Mounting Type:Cable Mount
Body Orientation:Straight
Body Shell Style:PLUG

Features

Contact Gender:Female
Number of Contacts:3
Contact Material:Copper Alloy
Contact Plating:Nickel
Termination:Solder
Current Rating:5A/125V AC
,
