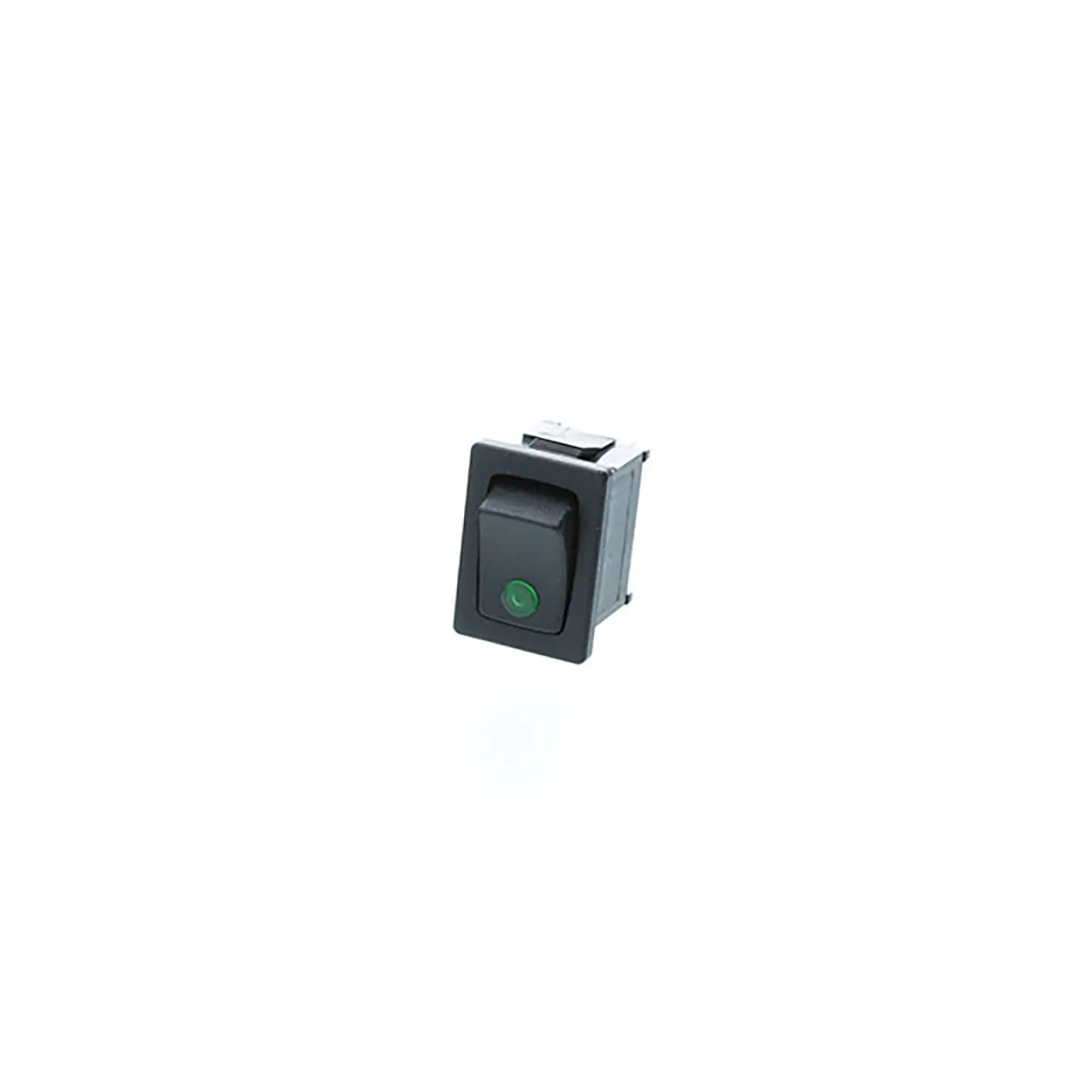

Mini Rocker - 3P SPST OFF-ON Green LED Dot

Features

• Series: RF2
• Mounting Type: Panel Mount, Snap-In
• Circuit: SPST
• Switch FunctiON: ON-OFF
• Current Rating (Amps): 16A (DC)
• Voltage Rating - DC: 12 V
• Actuator Type: Concave (Curved) - Illuminated
• Color - Actuator/Cap: Black
• Actuator Marking: No Marking
• Illumination Type, Color: LED, Green
• Illumination Voltage (Nominal): 12 VDC
• Termination Style: Quick Connect - 0.187" (4.7mm)
• Panel Cutout Dimensions: Rectangular - 19.20mm x 13.00mm
• Operating Temperature: -25°C to 85°C
• Approval Agency: CSA, cURus, ENEC
• Product Type: Rocker Switch
• Harmonized Code: 8536.50.4000
• ECCN: EAR99

Overview

Mini Rocker - 3P SPST OFF-ON, Green LED.
