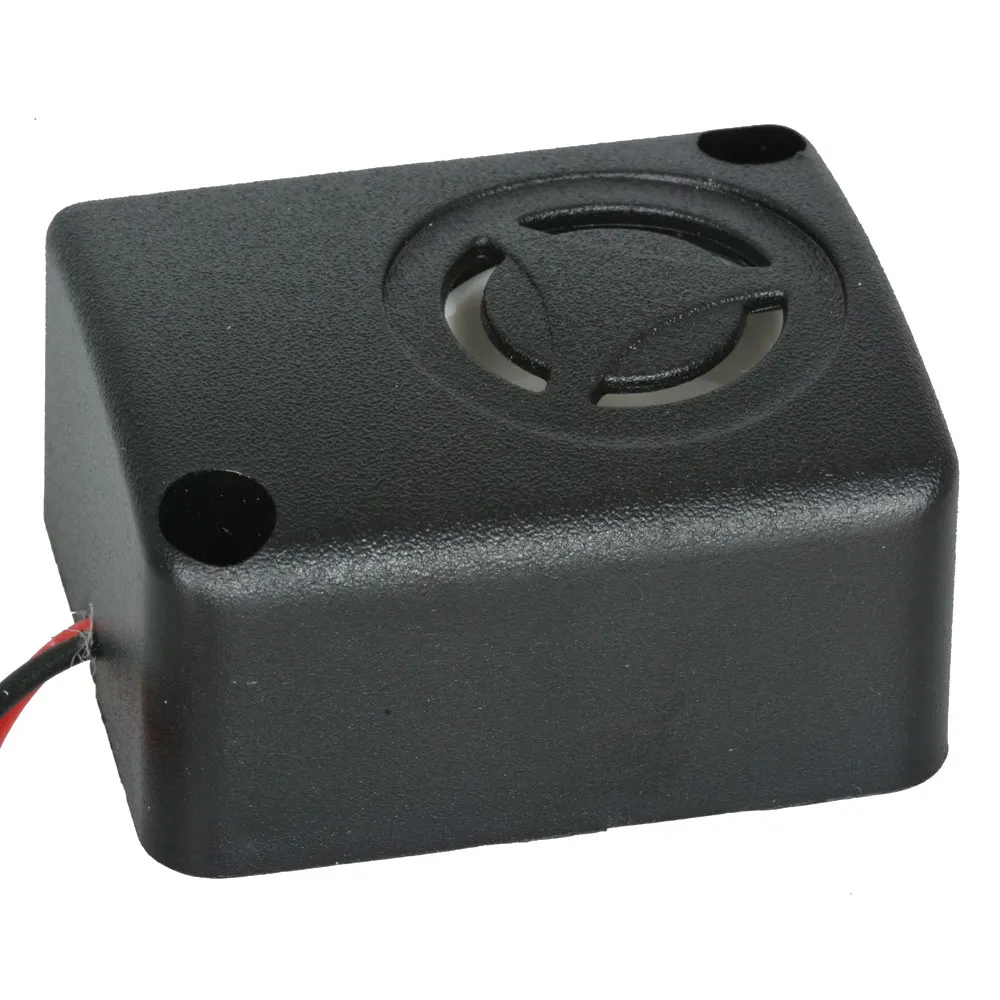

Mini Piezo Alarm Siren with 3" Wire Leads

Features:

  • Manufacturer: ValuePro
  • Manufacture#: LD-72
  • Rated Voltage: 12 VDC @ 110 mA
  • Voltage Range: 6-15 VDC
  • Sound (dB): 108 (min.)
  • Frequency: High Frequency Warble
  • Dimension: 1.87" L x 1.5" W x 0.90" H
  • Material Housing: High Impact Black ABS Plastic Casing
  • 3" Wire leads, 22 AWG Stranded Tinned Copper

Dimensions & Appearance

Mounting:Panel Mount
Diameter:0.9 in.
Height:1.55 in.
Size (H" x Dia."):1.55 x 0.90

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Voltage:12 V

Output

Output:108 dBA

Features

Tone Mode:Single
Technology:Piezo
Voltage Range (Vp-p):6-15
Frequency:4000 Hz
Termination Style:Wire Lead
Frequency Range:N/A
Current Rating:110 mA
,
