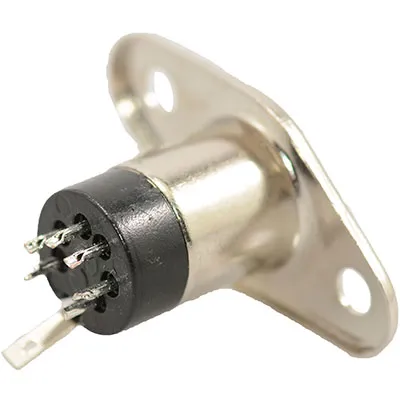

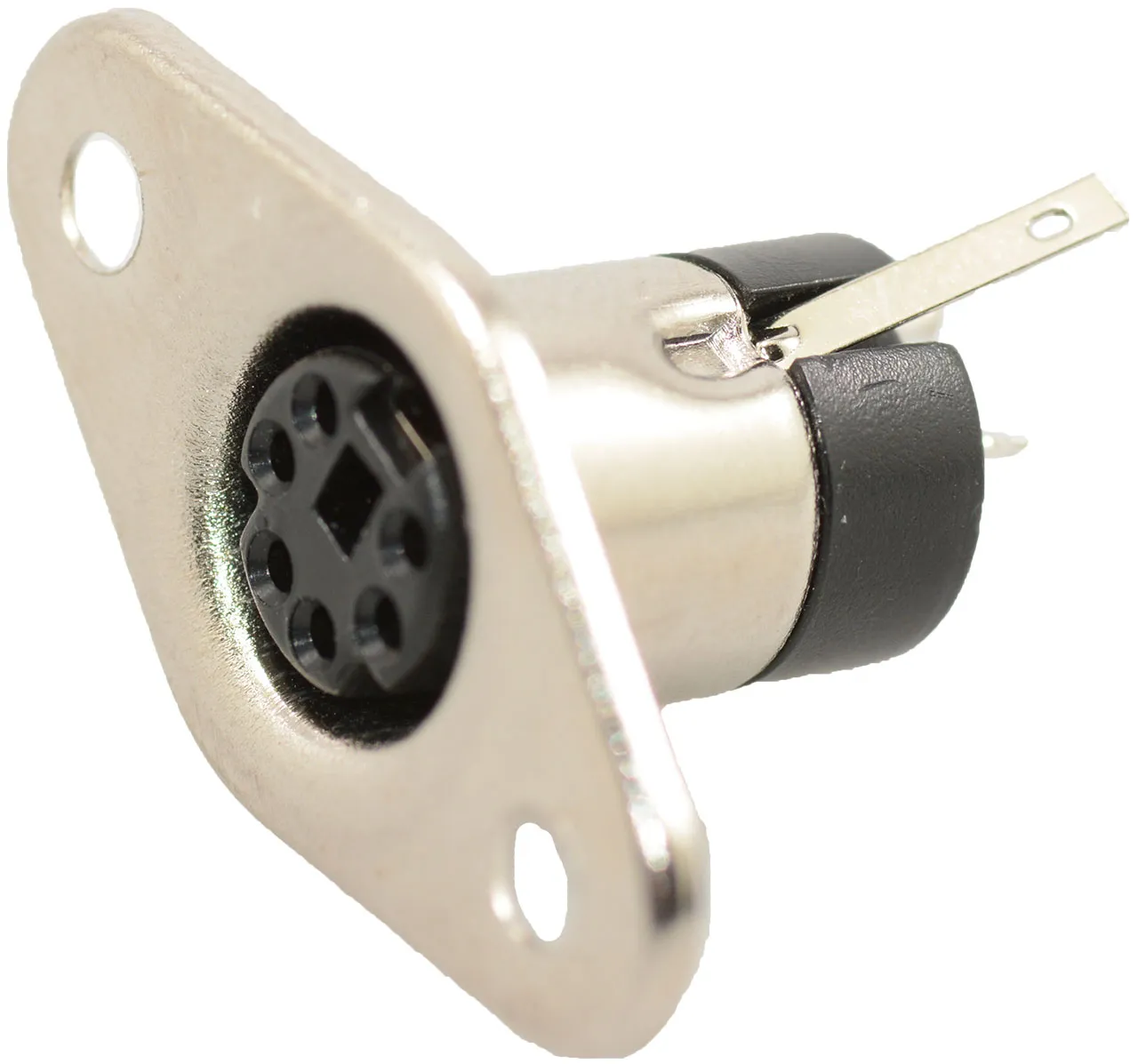

Mini DIN Socket Receptacle 6-Pin Panel Mount

Specifications

  • Connector Type: Receptacle, Female Sockets
  • Number of Positions: 6
  • Shell Size - Insert: Mini DIN
  • Shell Size, MIL: N/A
  • Mounting Type: Panel Mount, Flange
  • Size: 28.5mm W x 15mm H x 19.3mm D
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Orientation: Keyed
  • Ingress Protection: N/A
  • Shell Material, Finish: Steel, Nickel Plated
  • Contact Finish: Tin
  • Voltage - Rated: 100VAC, 12VDC
  • Current Rating: 1A, 2A
  • Operating Temperature: -20°C to 105°C

Dimensions & Appearance

Color:Silver
Mounting Type:Panel Mount

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-20°C

Features

Shell Material:Iron
Contact Finish:Silver
Connector Style:Mini DIN
Number of Contacts:6
Shielding:Shielded
Connector Type:Socket
Current Rating:1A, 2A
Voltage Rating:100 VAC, 12 VDC
Termination:Solder
,
