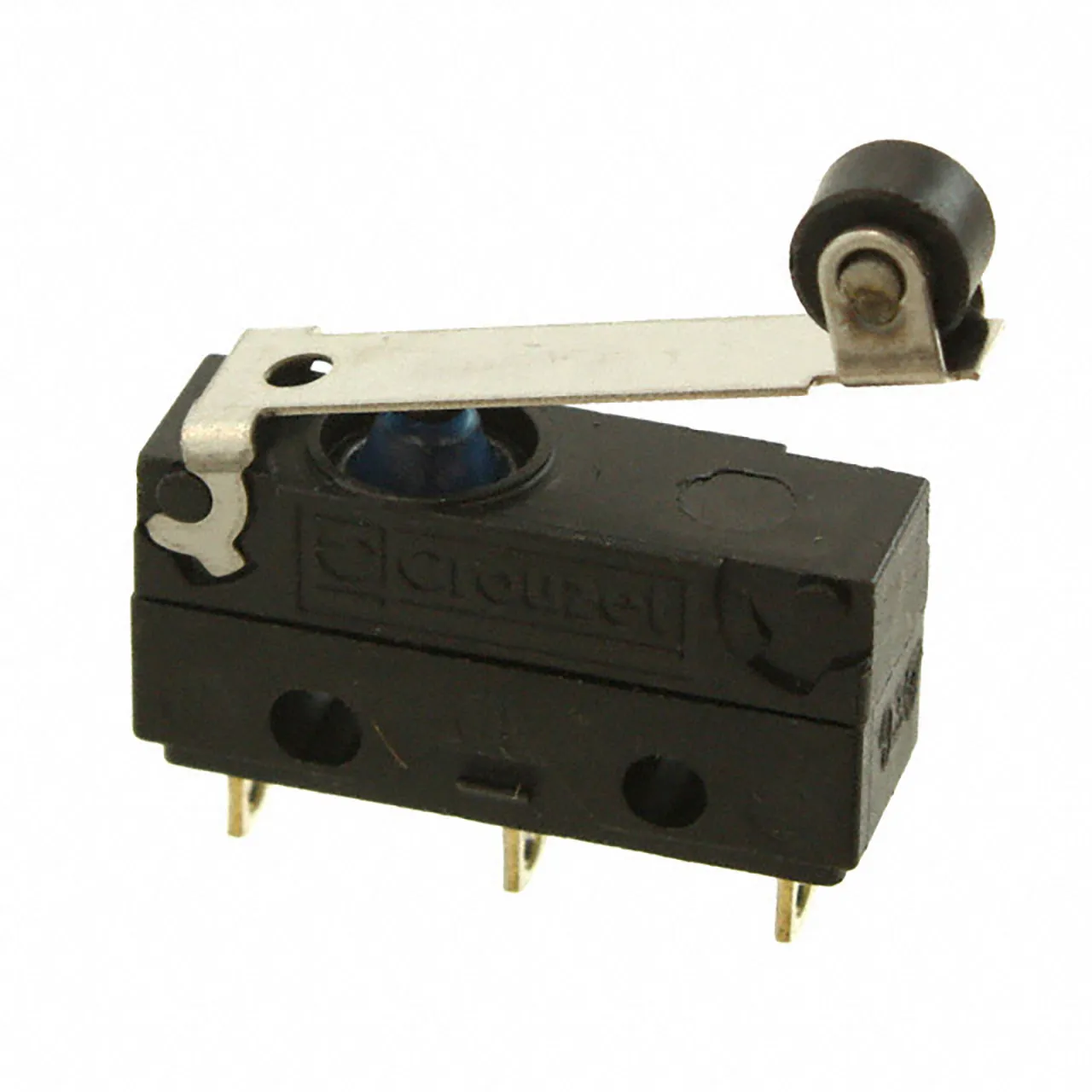

Microswitch Subminiature V4S-8318 Series 83181 Changeover Function Solder Lugs S UL/ENEC 170E R20 A
Features
- Product Type: Limit Switch
- Manufacturer Series: 8318
- Contact Form: SPDT
- Switch Function: ON-MOM
- Current Rating: 6A (AC/DC)
- Voltage Rating: 250 VAC, 24 VDC
- Actuator Type: Lever, Roller
- Mounting Type: Chassis Mount
- Termination Style: Solder Lug
- IP Rating: IP67 - Dust Tight, Waterproof
- Operating Force: 85gf
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 125°C
- Harmonized Code: 8536500700
- ECCN: EAR99
Overview
Microswitch Subminiature V4S-8318 Series 83181 Changeover Function Solder Lugs S UL/ENEC 170E R20 A.
